NARVON
2
COMPONENTS, FEATURES
& CONTROLS

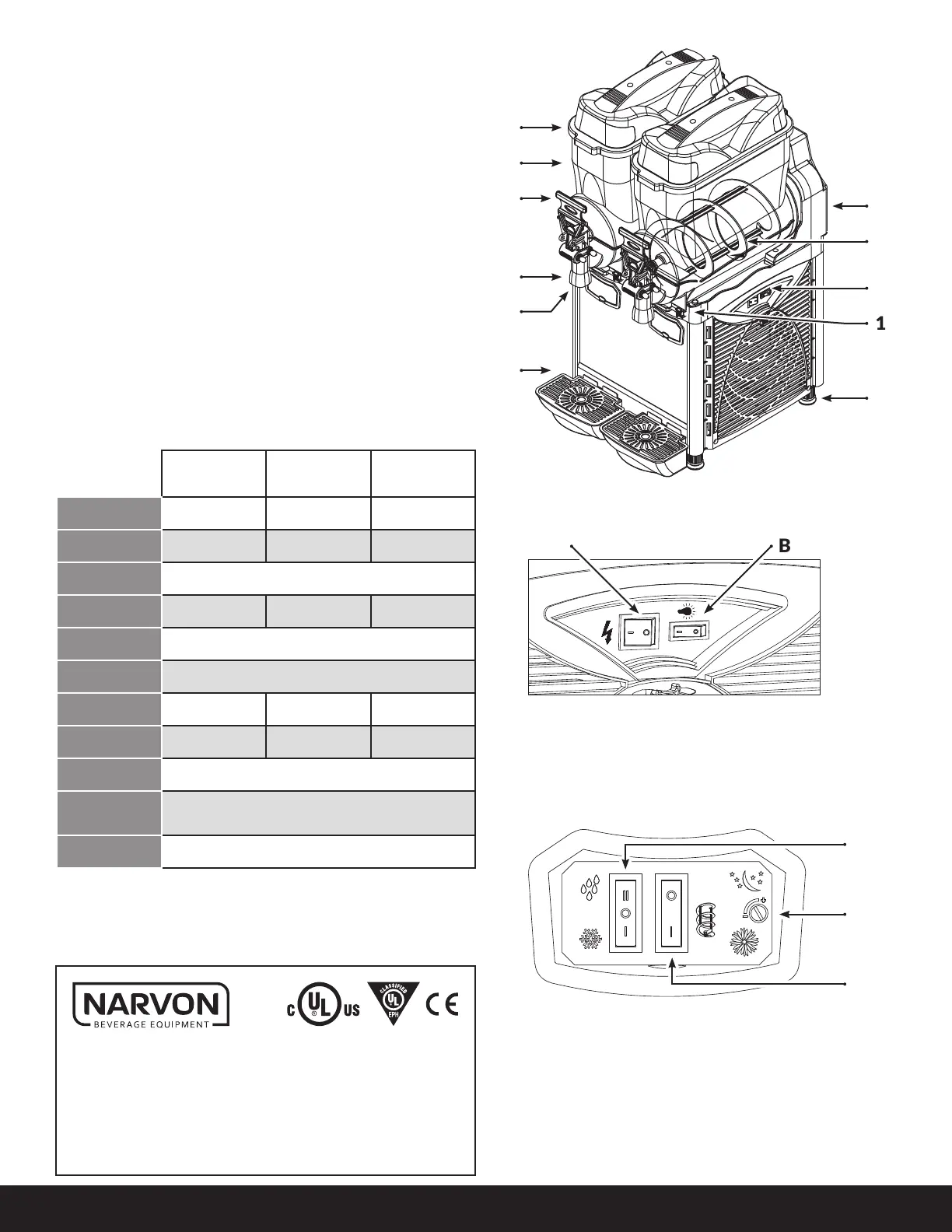

MAIN COMPONENTS
1. Lid
2. Bowl
3. Tap Lever
4. Product Supply
5. BowlSwitchBox
6. Drip Tray
7. Thickness Control
8. Spiral Blade
9. Main Switches
10. BowlFixingKnob
11. Rubber Leg
1
7
2
8
3
9
B
B
A
A
C
10
11
4
5
6
TECHNICAL FEATURES
SERIAL PLATE
The technical features of the machine are reported on the
serialplateaachedontheframe.
Posionedontherightsideofthemachine.
Posionedunderneatheachbowl.
A - Main Power Switch
0: Machine is OFF
I: Machine is ON
B - Lid Light Switch
0: Light is OFF
I: Light is ON
A - Beverage Type Control Switch
0: Cooling OFF
 I:Slush/FrozenCreamMode
II: Cold Drink Mode
B - Spiral Blade Switch
0: Spiral Blade OFF
I: Spiral Blade ON
C - Thermostat Control
Controls the temperature of the product when
the Beverage Type Control Switch is set to II.
MAIN CONTROLS
BOWL CONTROLS
SM261 SM262 SM263
Bowls 1 2 3
Capacity 1 x 2.6 Gal 2 x 2.6 Gal 3 x 2.6 Gal
Gas R404a
Width 8.3 in 15.7 in 23.6 in
Depth 20.8 in
Height 33 in
Weight 70 lb 123 lb 158 lb
Power 530W 850W 1100W
Voltage 120V
Acousc
Pressure
< 70 dB (A)
Class N
ITEM #: 378SM261
MFR MODEL #: OASIS 1-10
SPECS: 1 x 2.6 GAL • 120V • 530W
GAS/Q.TY: R134a - Gr. 140
PRESSURE: HIGH - 186 PSI • LOW - 88 PSI
SERIAL #:
MADE IN ITALY
