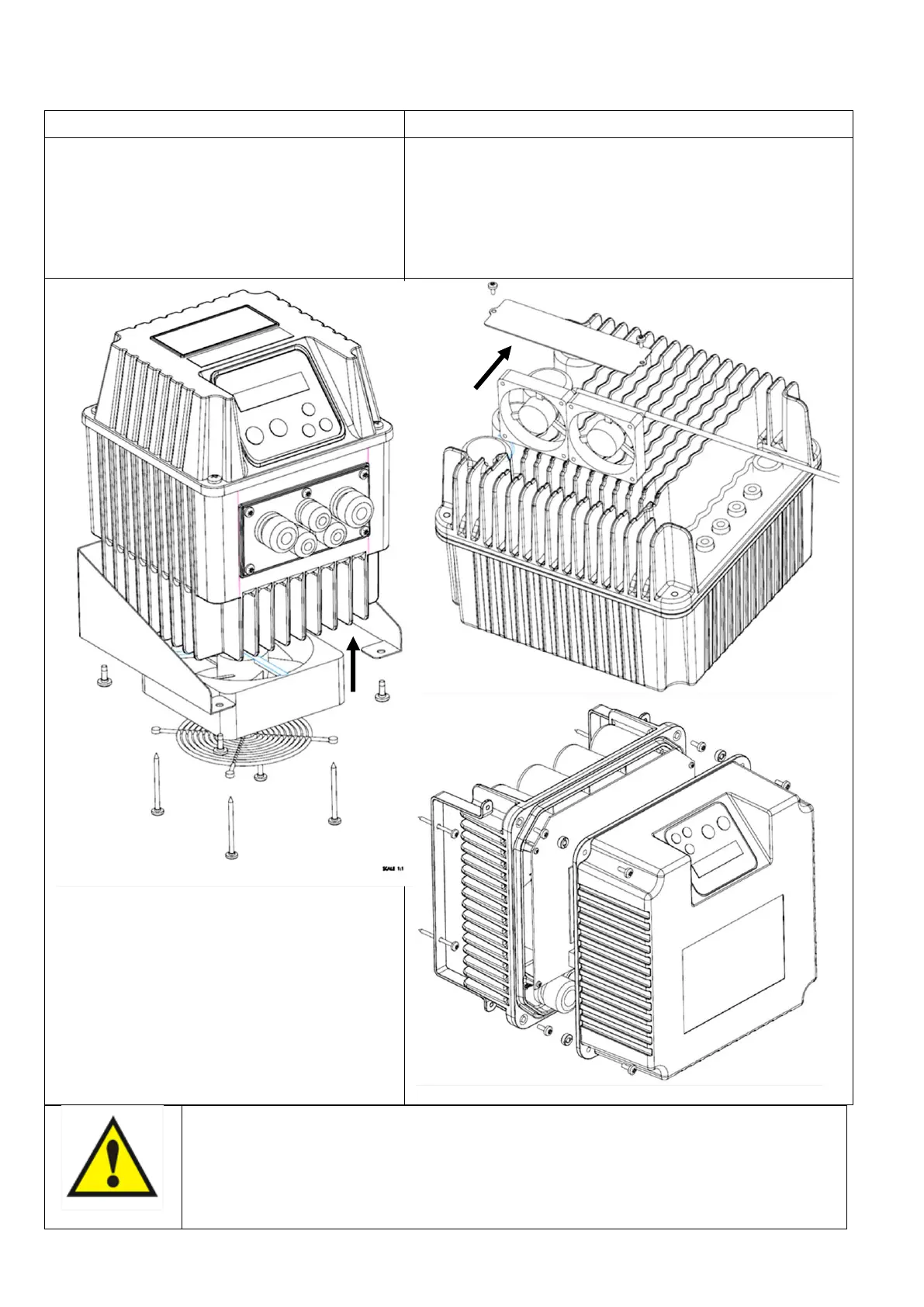

Wall mounting kit
In this application the unit is cooled independently by its auxiliary cooling fan integrated in the radiator.
Wall-mounted kit is composed of:
n.° 1 auxiliary fan 230V AC (V209,214) or 12
VDC (V306,309,406,409)
n.° 4 screws to fix cooling fan
n.° 1 protection grill
n.° 1 metal bracket in AISI 304
n.° 4 screws to fix to wall bracket
n.° 1 fans cover.
n.° 2 fans cover fixing screws
n.° 2 wall fixing brackets
n.° 4 M5 screws for fixing to the brackets
n.°1 holes reference sheet
Make sure the manufacturer that the electric motor is suited for operation in the inverter
Make sure to properly attach the grid of the auxiliary cooling fan.
Make sure to remove the auxiliary cooling fan if the inverter is coupled to a motor. Failure to do so
creates a high risk of overheating motor and inverter.
