4. Electric wiring

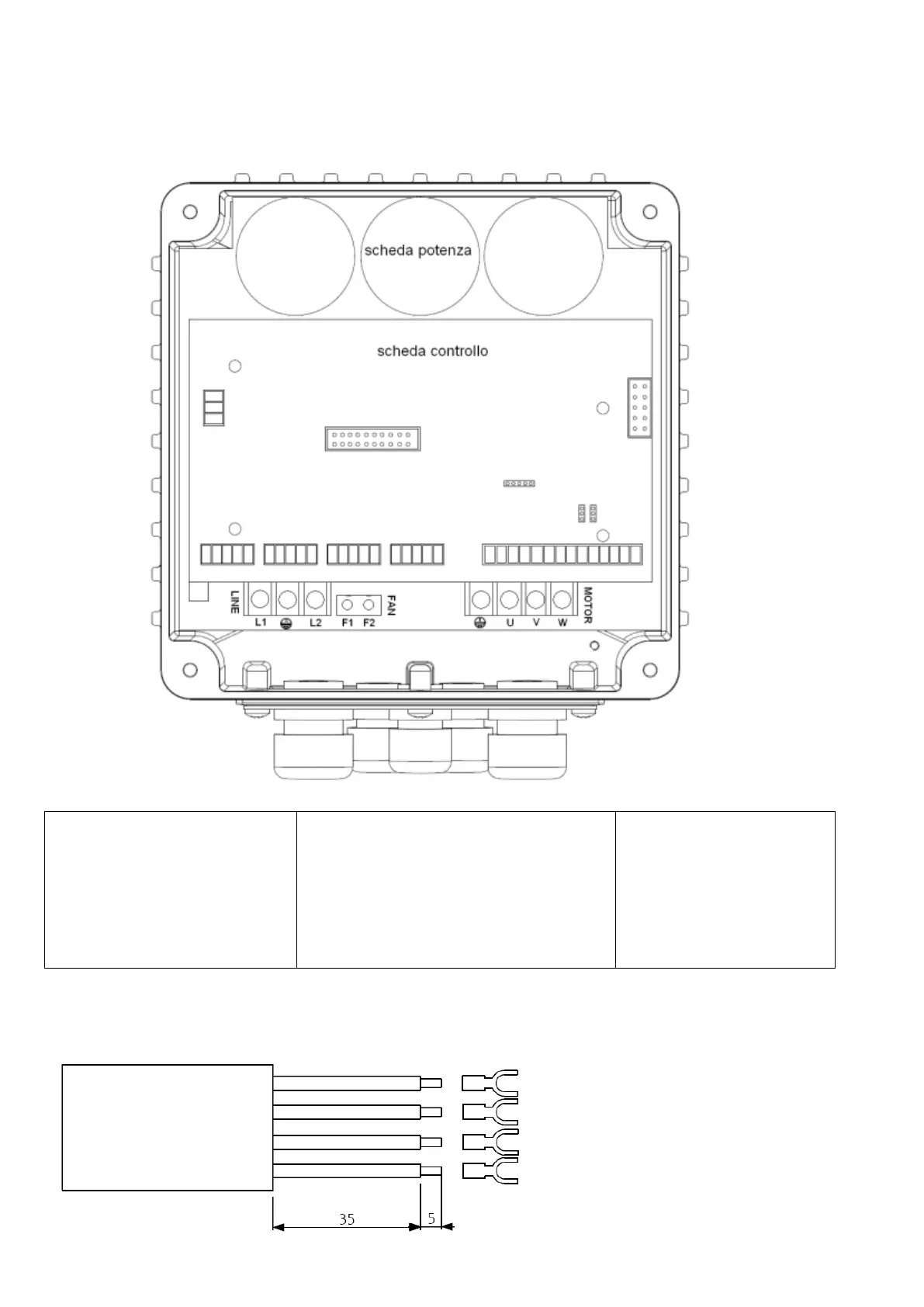

Power board V209,214
Power supply:
LINE: L1, L2,GND
It is recommended to use
cable lugs
Output:
3 ph motor:
GND,U,V,W,
1 ph motor:
earth, U (running), V (common)
It is recommended to use cable lugs.
230 V AC auxiliary fans
(wall mounting kit)
FAN: F1, F2
Recommended line and motor cables stripping
