8

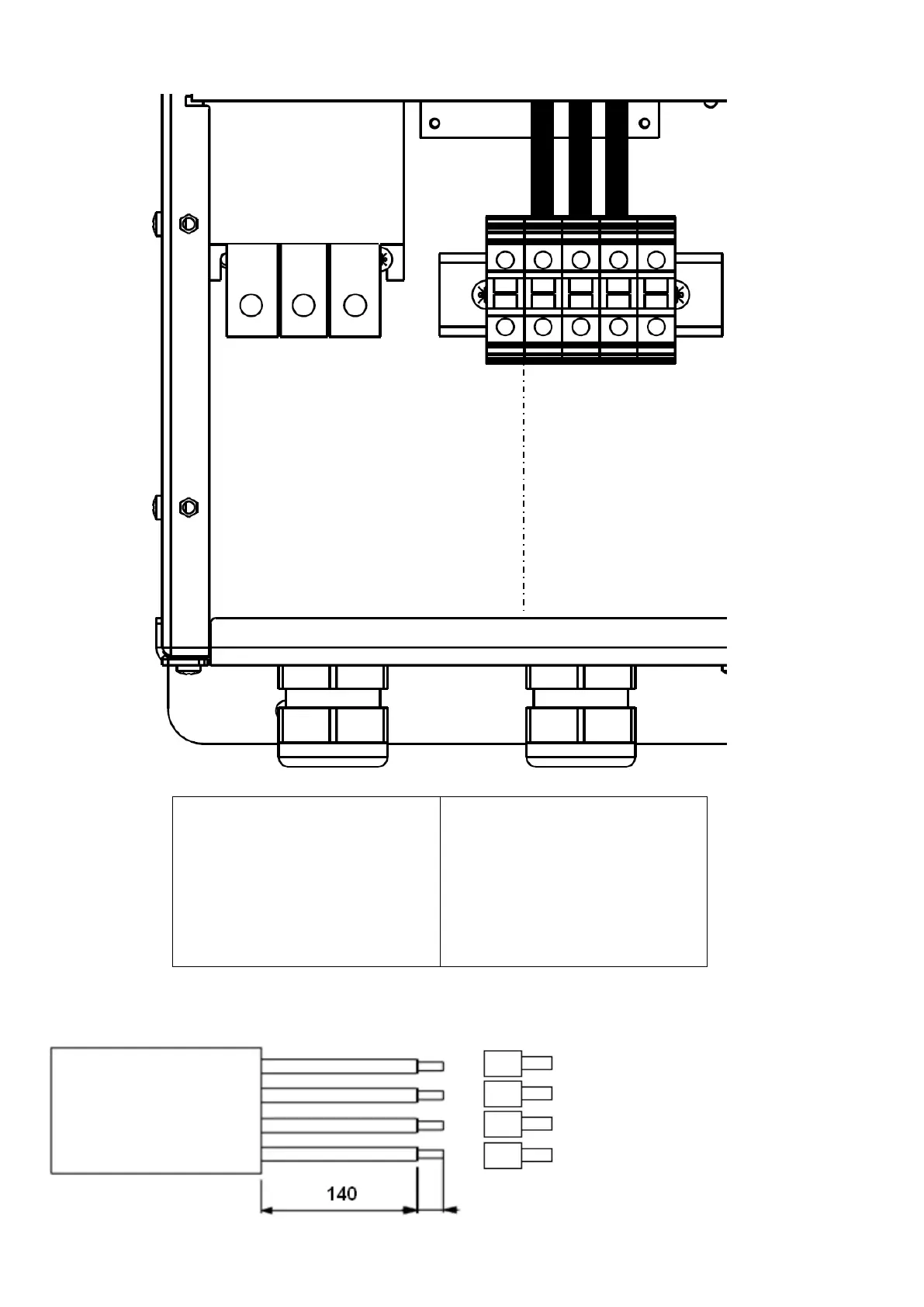

Power board V230, 238
Power supply:
LINE: L1, L2, P.E.
It is recommended to use
cable lugs.
Motor output:
MOTOR: U, V, W, P.E.
It is recommended to use
cable lugs.
Cable stripping recommended for line input and output to the motor.
LINE
L1
P.E.
W
P.E
L2
V
U
MOTOR
