Caution Make sure that no I/O modules are in the chassis before removing it from
the panel.
Mounting the Chassis on a DIN Rail
You can order the NI 9915 DIN rail mount kit if you want to mount the chassis on a DIN rail.
You need one clip for mounting the chassis on a standard 35 mm DIN rail. Complete the
following steps to mount the chassis on a DIN rail.
1. Fasten the DIN rail clip to the chassis using a number 2 Phillips screwdriver and two
M4 × 16 screws. NI provides these screws with the DIN rail mount kit. Tighten the
screws to a maximum torque of 1.3 N · m (11.5 lb · in.).

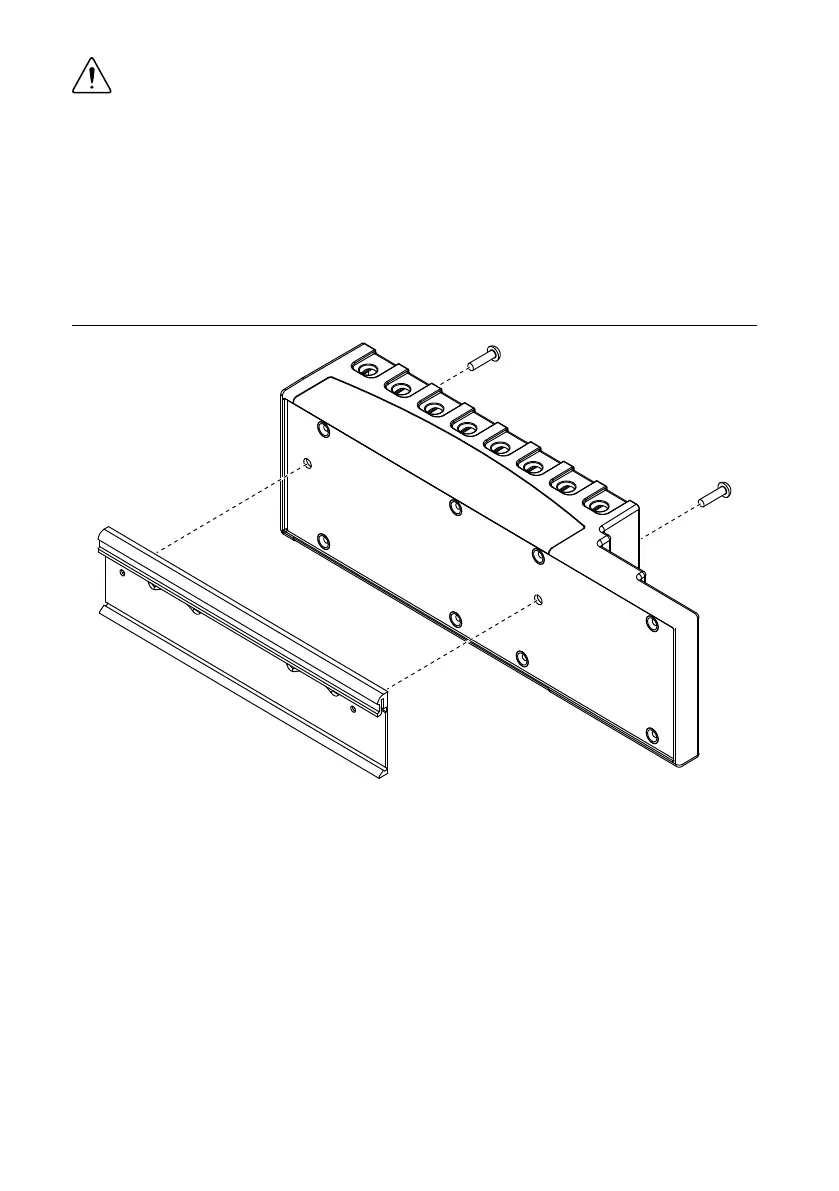

Figure 7. Installing the DIN Rail Clip on the cRIO-9072/9073/9074
2. Insert one edge of the DIN rail into the deeper opening of the DIN rail clip.
NI cRIO-9072/9073/9074 User Manual and Specifications | © National Instruments | 7
