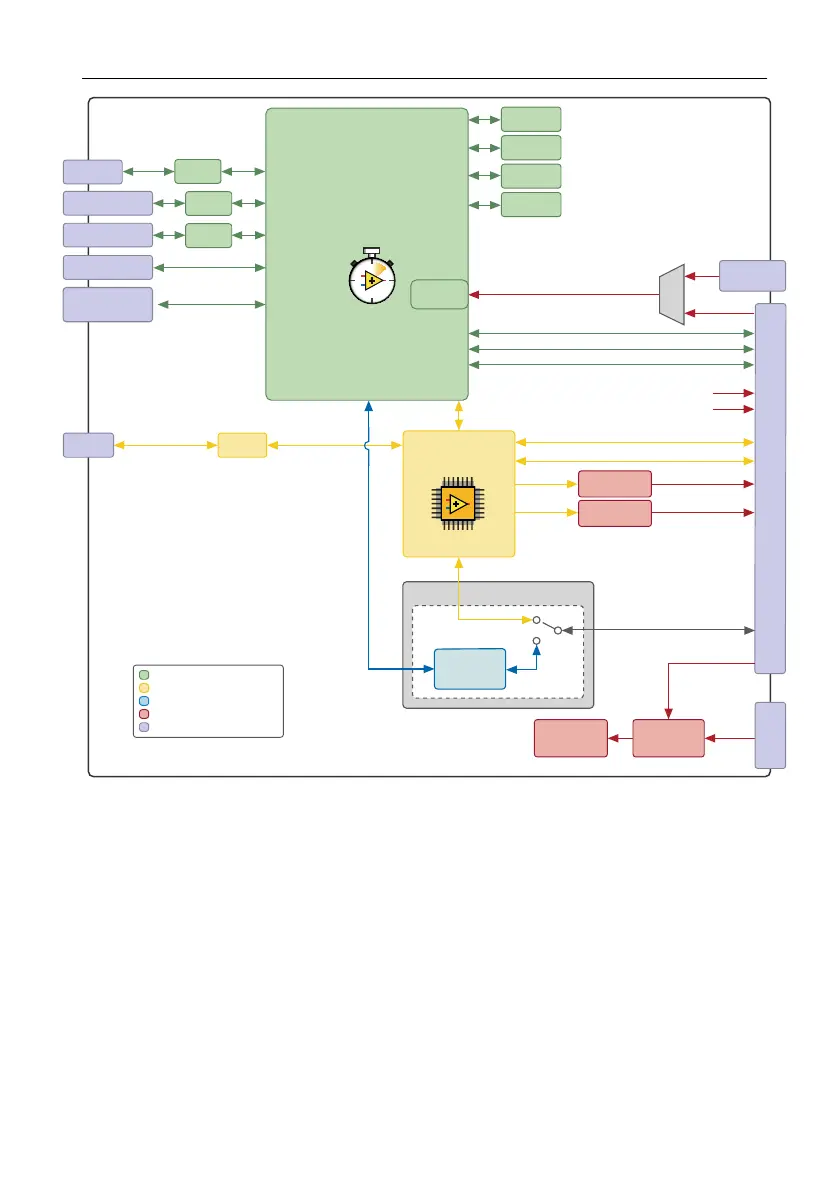

Figure 3. sbRIO-9609 Block Diagram
9-30 VDC
Input
Power
Selection and
Protection
On-board
Power
Supplies
Configurable per Module
NI-DAQmx
Technology
sbRIO-9609
High-Speed CAN
Xilinx Artix-7 200T
Intel Atom E3845
Quad-Core
1.91 GHz Processor
Real-Time
Clock
Battery Holder
(BR1632)
Power
Connector
RMC Connector
(240-pin 60x4 Searay)
Optional System
Power 9-30 VDC
2x C Series
Module Interface
Temperature
Sensors
Watchdog
4 GB
eMMC Disk
2 GB
DDR3L
CAN Port
CAN
Controller
5 V
3.3 V
SATA 2.0
PCIe x1 Gen 2
USB 2.0
VBAT
2.5 V/3.3 V
Power Selector
2.5 V/3.3 V
Power Selector
FPGA_VIO [0-47]
Digital I/O [0-47], SE/LVDS
Digital I/O [48-95], SE/LVDS
FPGA_VIO [48-95]
LabVIEW FPGA API Data Path
Processor Data Path
NI-DAQmx API Data Path
Power Path
External Connector/Port
RJ-45 TSN Gigabit
Ethernet Port
PHY
RJ-45 TSN Gigabit
Ethernet Port
PHY
USB 2.0 Device
Type-C Connector
UARTRS-232
RS-232
Console Out
XCVR
USB 3.1 Host
Type-C Connector
with DisplayPort
6 | ni.com | CompactRIO Single-Board Controller with NI-DAQmx Hardware Installation Manual
