National Instruments CompactRIO sbRIO-9603 User Manual

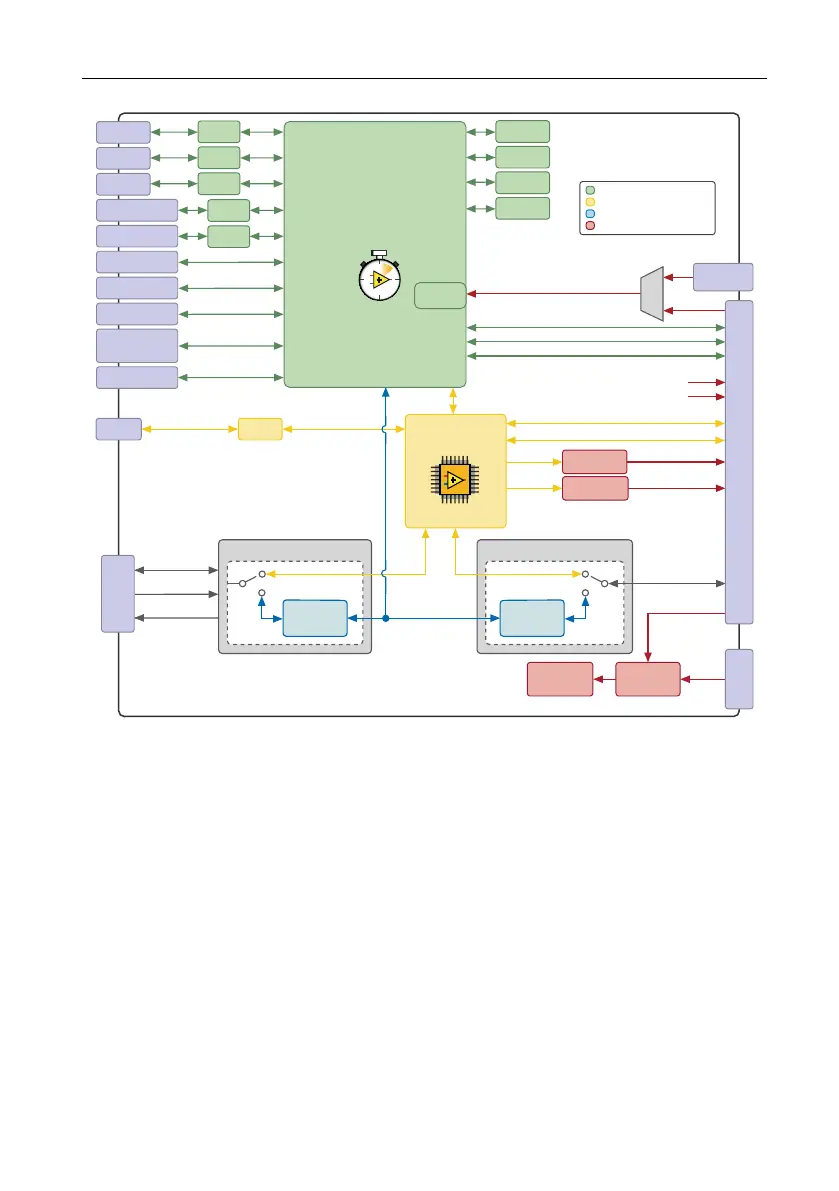

Figure 5. sbRIO-9629 Block Diagram
FPGA_VIO [48-95]
sbRIO-9629
Intel Atom E3845
Quad-Core
1.91 GHz Processor
UART
RS-232
UART
RS-232
UARTRS-485
High-Speed CAN
Xilinx Artix-7 200T
Real-Time
Clock
Digital I/O [0-47], SE/LVDS
Digital I/O [48-95], SE/LVDS
Temperature
Sensors
Watchdog
4 GB
eMMC Disk
2 GB
DDR3L
4x Digital I/O
(5 V Tolerant)
16x Multiplexed
Analog Input
RS-232
RS-232
Console Out
RS-485
RJ-45 TSN Gigabit
Ethernet Port
RJ-45 TSN Gigabit
Ethernet Port
USB 2.0 Host
Type-A Connector
USB 2.0 Host
Type-A Connector
USB 2.0 Device
Type-C Connector
USB 3.1 Host
Type-C Connector
with DisplayPort
MicroSD
Connector
4x Analog
Output
XCVR
XCVR
XCVR
PHY
PHY
CAN Port
Connector0 (MIO)
CAN
Controller
5 V
3.3 V
PCIe x1 Gen 2
USB 2.0
Battery Holder
(1632)
SATA 2.0
VBAT
LabVIEW FPGA API Data Path
Processor Data Path
NI-DAQmx API Data Path
Power Path
FPGA_VIO [0-47]
2.5 V/3.3 V
Power Selector
2.5 V/3.3 V
Power Selector
9-30 VDC
Input
Power
Selection and
Protection
On-board
Power
Supplies
Power
Connector
Configurable per Module
NI-DAQmx
Technology
Configurable per Module
NI-DAQmx
Technology
Optional System
Power 9-30 VDC
2x C Series
Module Interface
RMC Connector
(240-pin 60x4 Searay)
