NI 9411 Operating Instructions and Specifications 10 ni.com

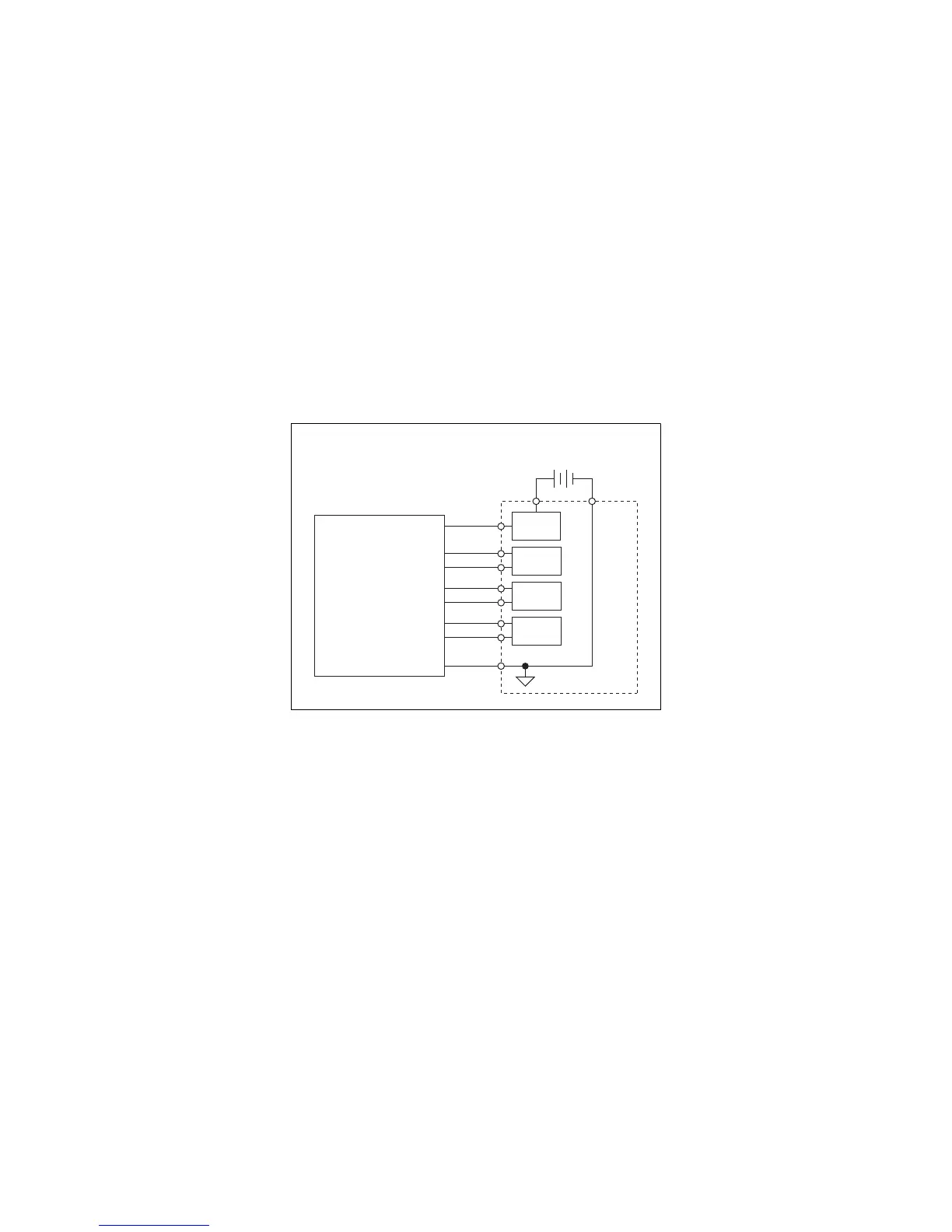

Figure 3. Connecting a Differential Encoder to the NI 9411
A+
B+
+5 V
GND
Differential
Encoder
DI0a
DI0b
COM
NI 9411
–+
A–
B–
Index+
Index–
DI1a
DI1b
DI2a
DI2b
V
sup
COM
+5 V
out
External
Power Supply
+5 V
Reg
Receiver
Circuitry
Receiver
Circuitry
Receiver
Circuitry
