NI 9411 Operating Instructions and Specifications 14 ni.com
Wiring for High-Vibration Applications
If an application is subject to high vibration, National Instruments
recommends that you use ferrules to terminate wires to the
detachable screw-terminal connector. Refer to Figure 6 for an
illustration of using ferrules.

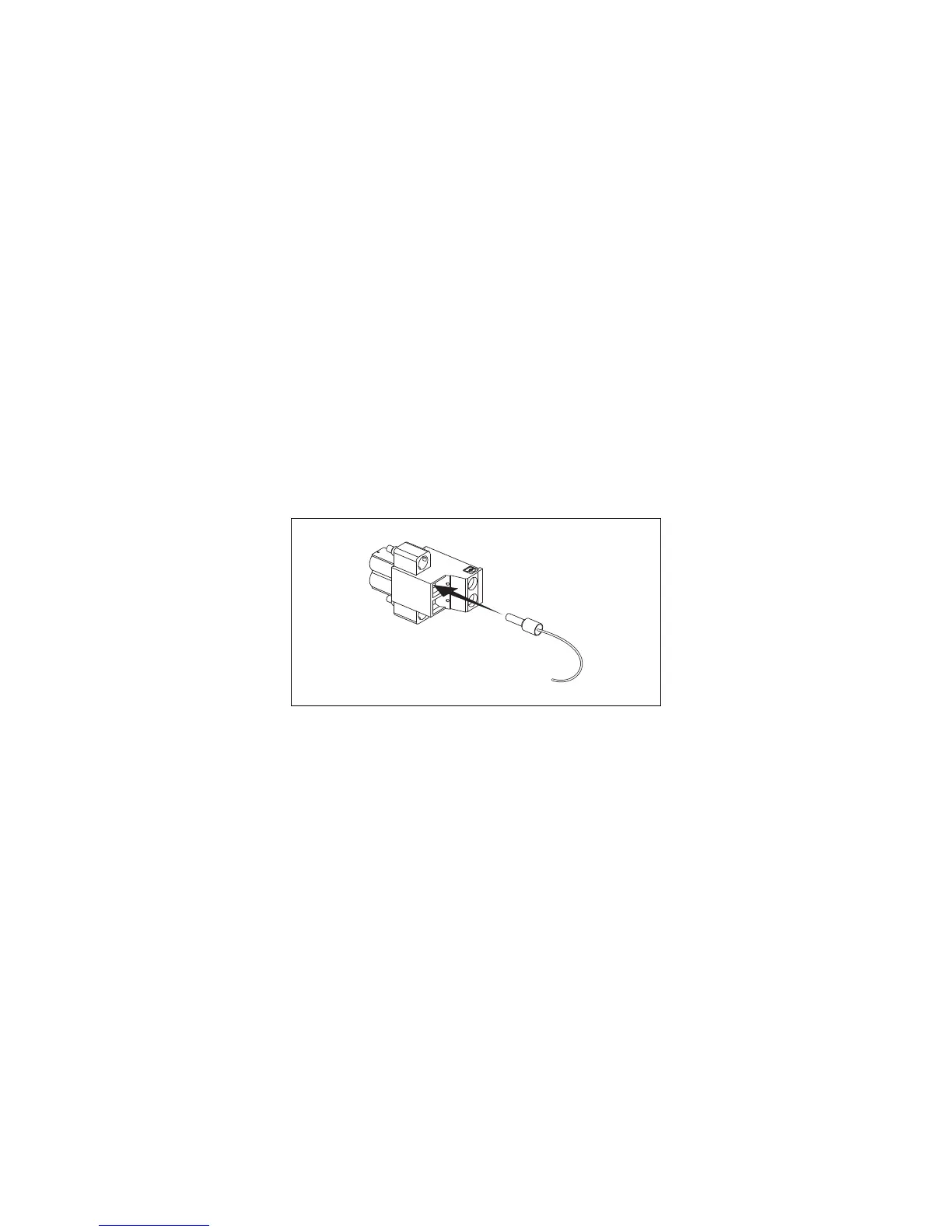

Figure 6. 2-Terminal Detachable Screw-Terminal Connector with Ferrule
