Chapter 1 Getting Started with the cDAQ Chassis
• Panel Mounting without a Panel Mount Kit—Threaded holes are located in the cDAQ
chassis for mounting it to a panel. Use two standard #6-32 UNC-2B machine screws with
a maximum threaded engagement length of 4.83 mm (0.190 in.) to go through the panel and
into the back of the chassis, as shown in Figure 1-14. National Instruments does not provide
these screws with the chassis. Refer to the specifications document for your cDAQ chassis
for mounting dimensions.

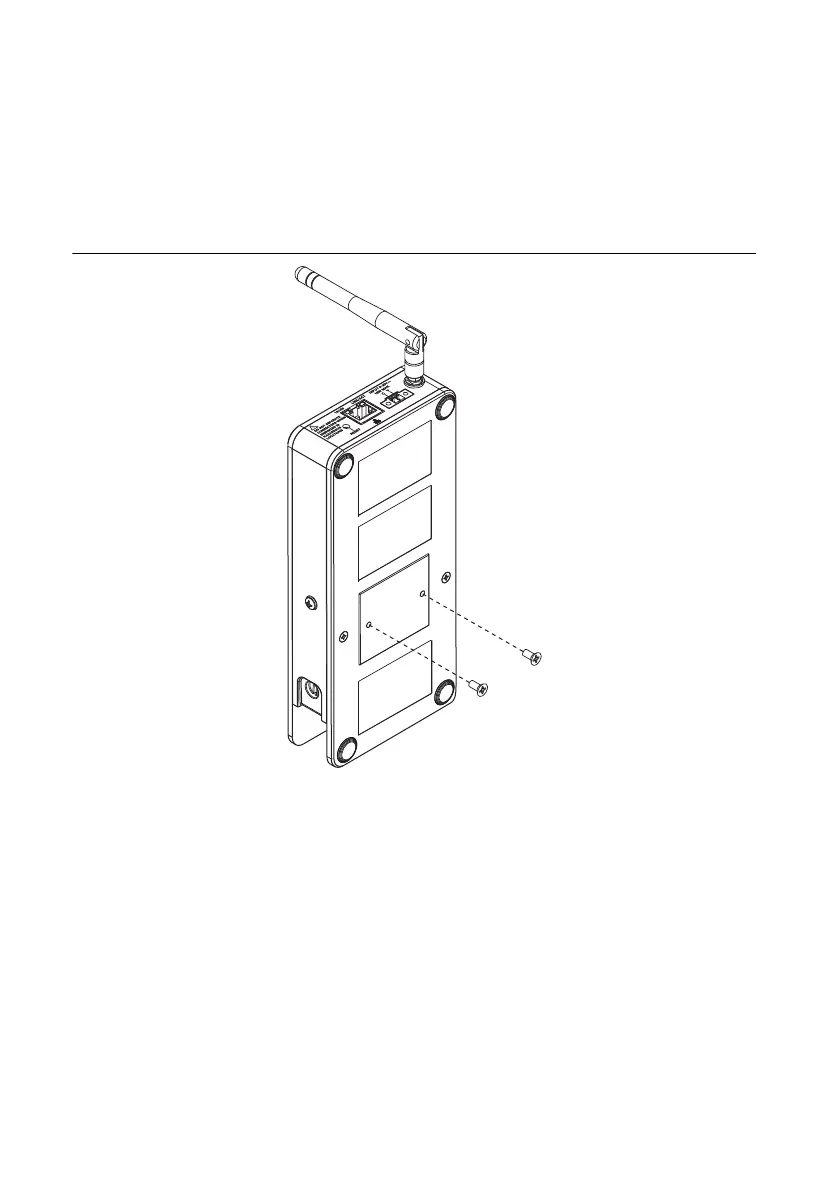

Figure 1-14. Panel Mounting the cDAQ-9181/9191 without a Panel Mount Kit
