Chapter 2 Hardware Overview of the NI 78xxR
© National Instruments Corporation 2-27 R Series Intelligent DAQ User Manual

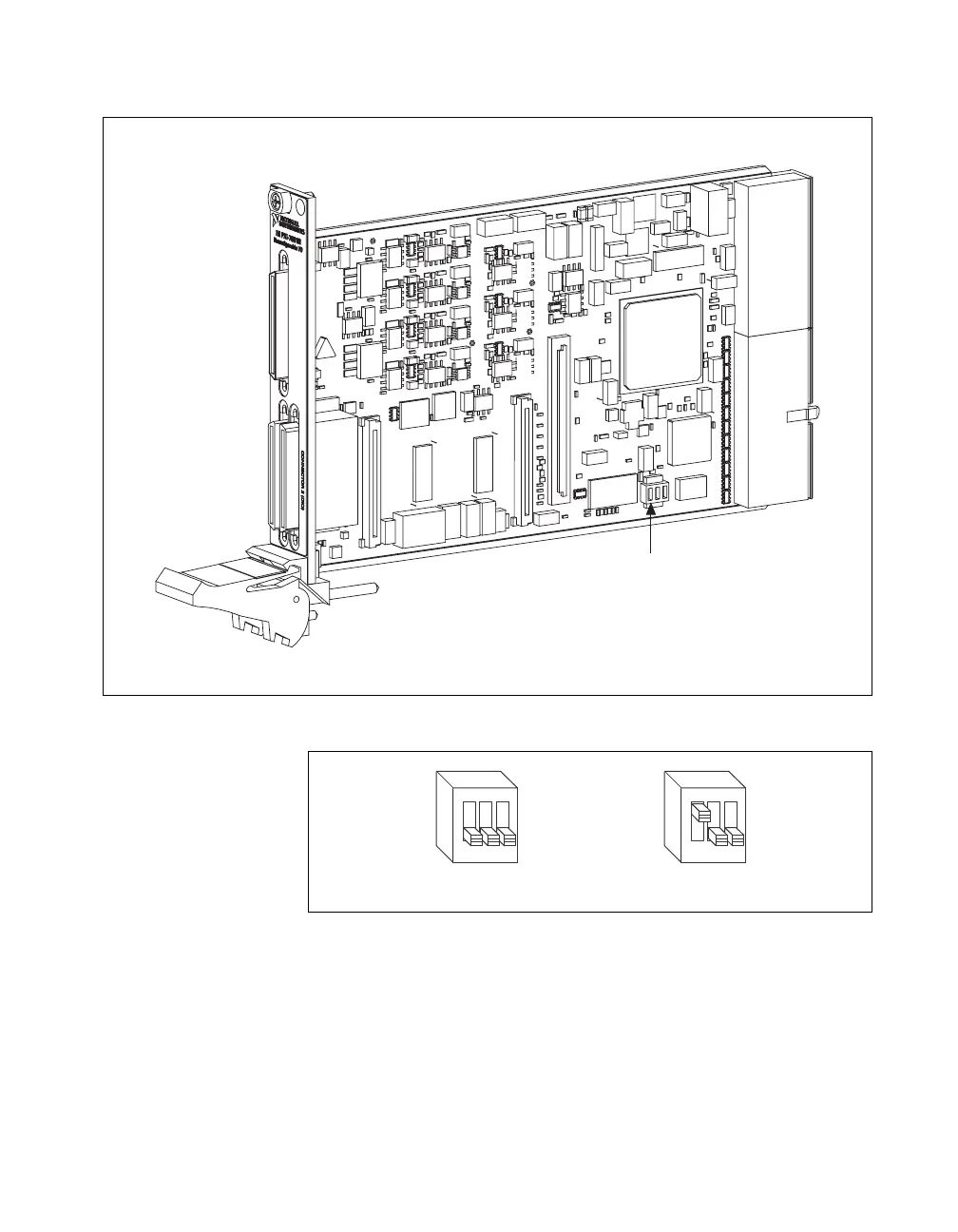

Figure 2-16. Switch Location on the NI PXI-783xR
Figure 2-17. Switch Settings
Complete the following steps to prevent a VI stored in flash memory from
loading to the FPGA:
1. Power off and unplug the PXI/CompactPCI chassis or PCI computer.
2. Remove the NI 781xR/783xR from the PXI/CompactPCI chassis or
PCI computer.
SW1, SW2, SW3
123
ON
123
ON
a. Normal Operation (Default) b. Prevent VI From Loading
