3-4 | ni.com
Chapter 3 Installation and Configuration
PCIe-8366
1. Disconnect the fiber optic cable from the cabled PCI Express connector.
2. Move the release lever downwards until it is pointing towards you.
3. Gently pull the release lever toward you to release the catch mechanism of the SFP module.
The SFP module should easily slide out of the receptacle as shown in Figure 3-3.

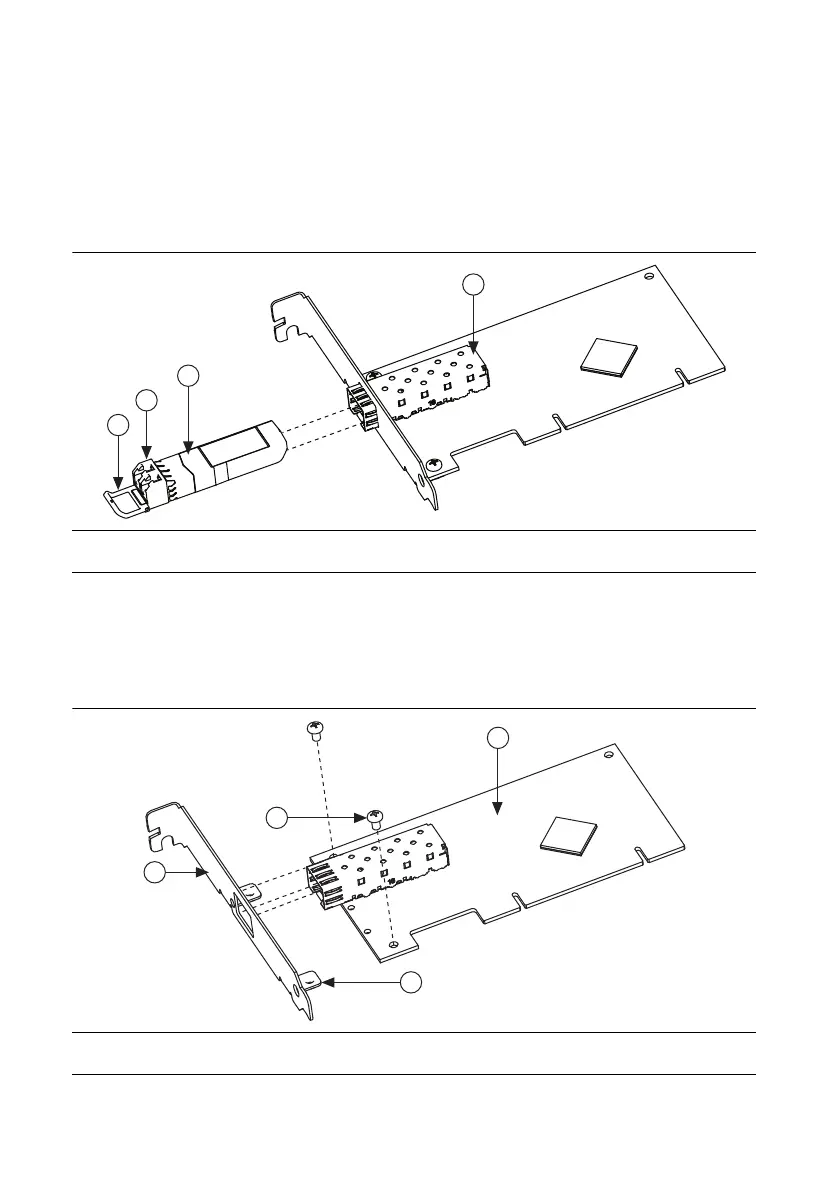

Figure 3-3. SFP Module Removal
4. Remove the two 4-40 × 1/4 inch Phillips head screws that attach the standard height bracket
to the card as shown in Figure 3-4. Set the screws aside to re-use when installing the
low-profile bracket.
5. Remove the standard height bracket as shown in Figure 3-4.
Figure 3-4. Removing Bracket
1 Release Lever
2 Cabled PCI Express Connector
3 SFP Module
4SFP Receptacle
1 Standard Height Bracket
2 4-40 ×1/4 inch Phillips Head Screws (x2)
3 Front Side of Card
4 Mounting Tab
3
2
1
4
3
4
1
2
