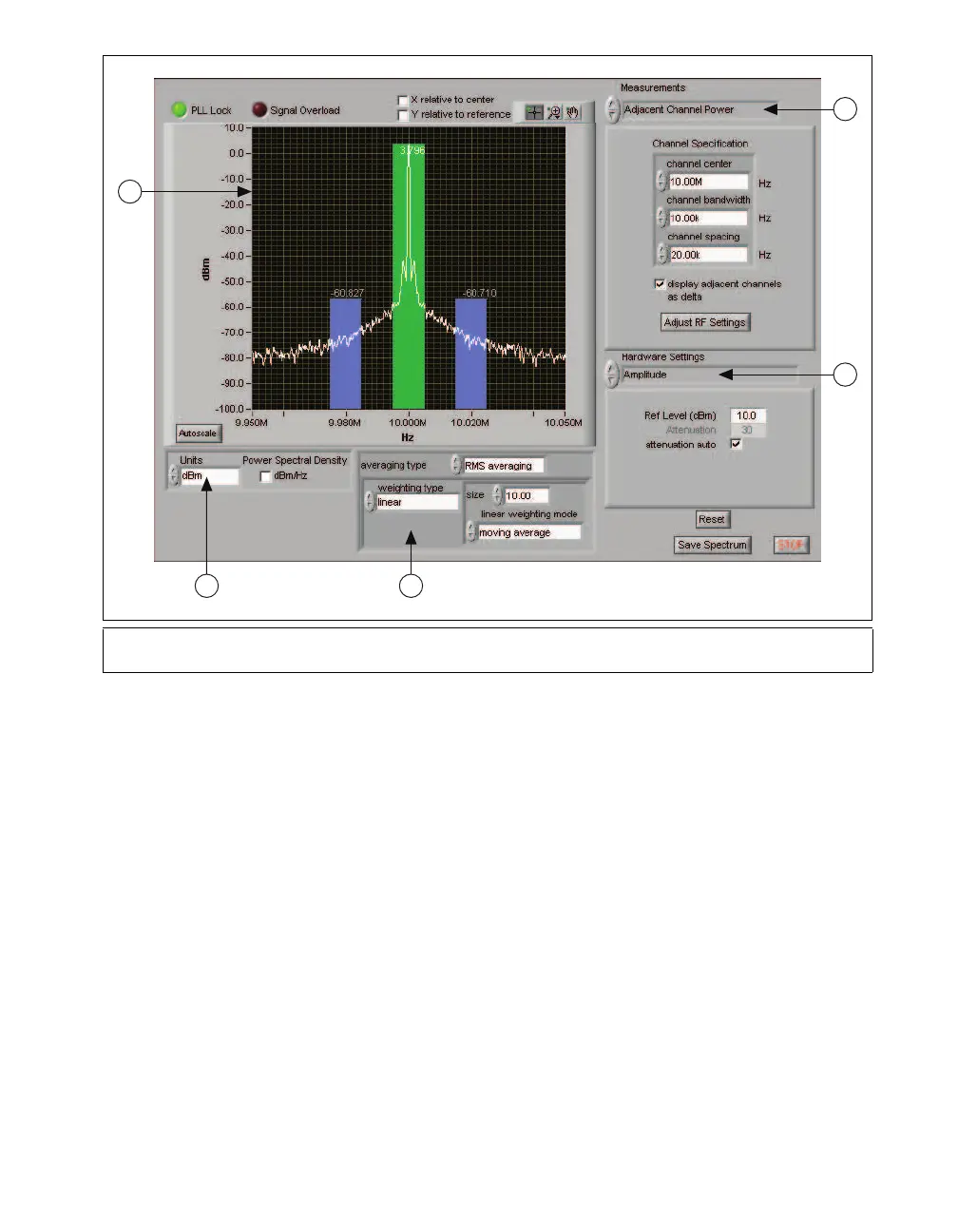

Figure 4. RFSA Demo Panel Performing ACP Measurement
To use the RFSA Demo Panel, configure the following controls:

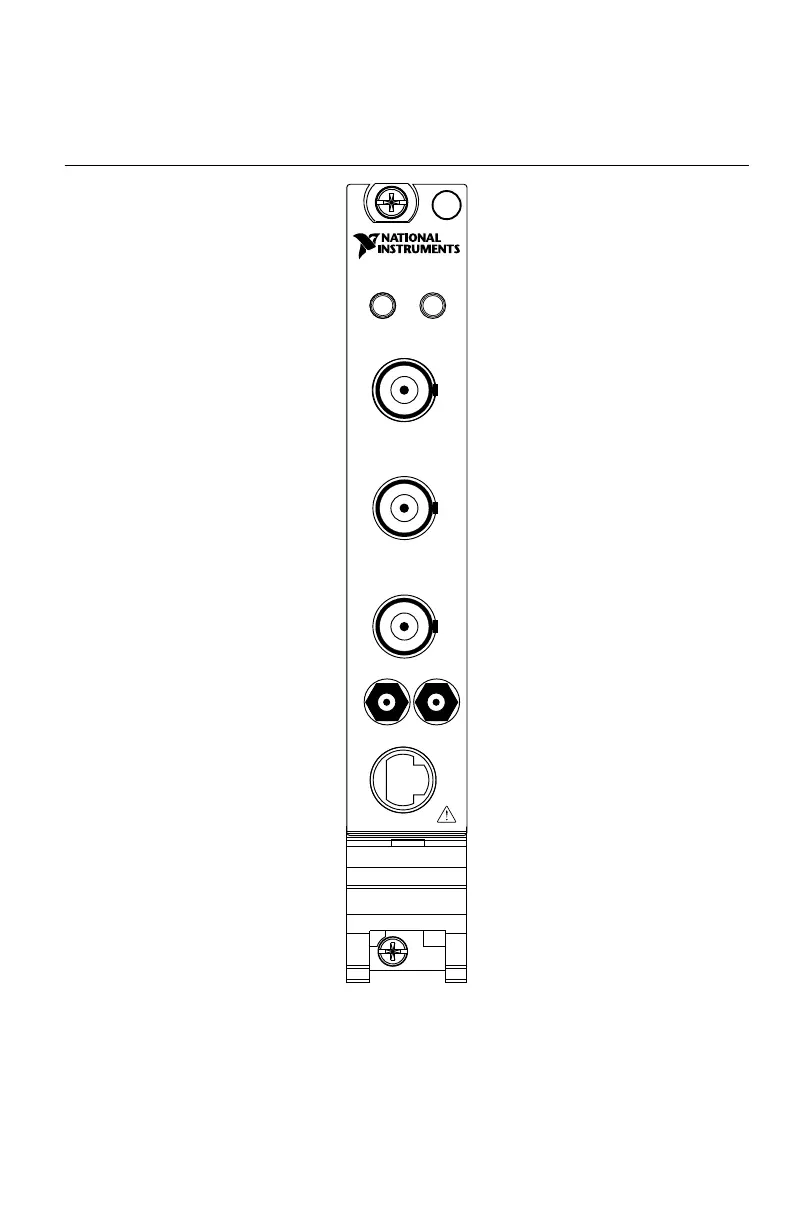

1. Verify that the device numbers in the RFSADeviceNumbers dialog box reflect those assigned to
the RF vector signal analyzer hardware modules in MAX, and click OK.
2. Specify hardware parameters for your measurement, including the following parameters, in
Hardware Settings:
• RF Spectrum Settings
• Amplitude
• Timing
• Advanced Spectral Parameters
•Devices
1 Measurements Controls
2 Hardware Settings Controls
3 Averaging Controls
4 Units Controls
5 Waveform Graph
1
2
5
34
