NI 5620 IF Digitizer Module

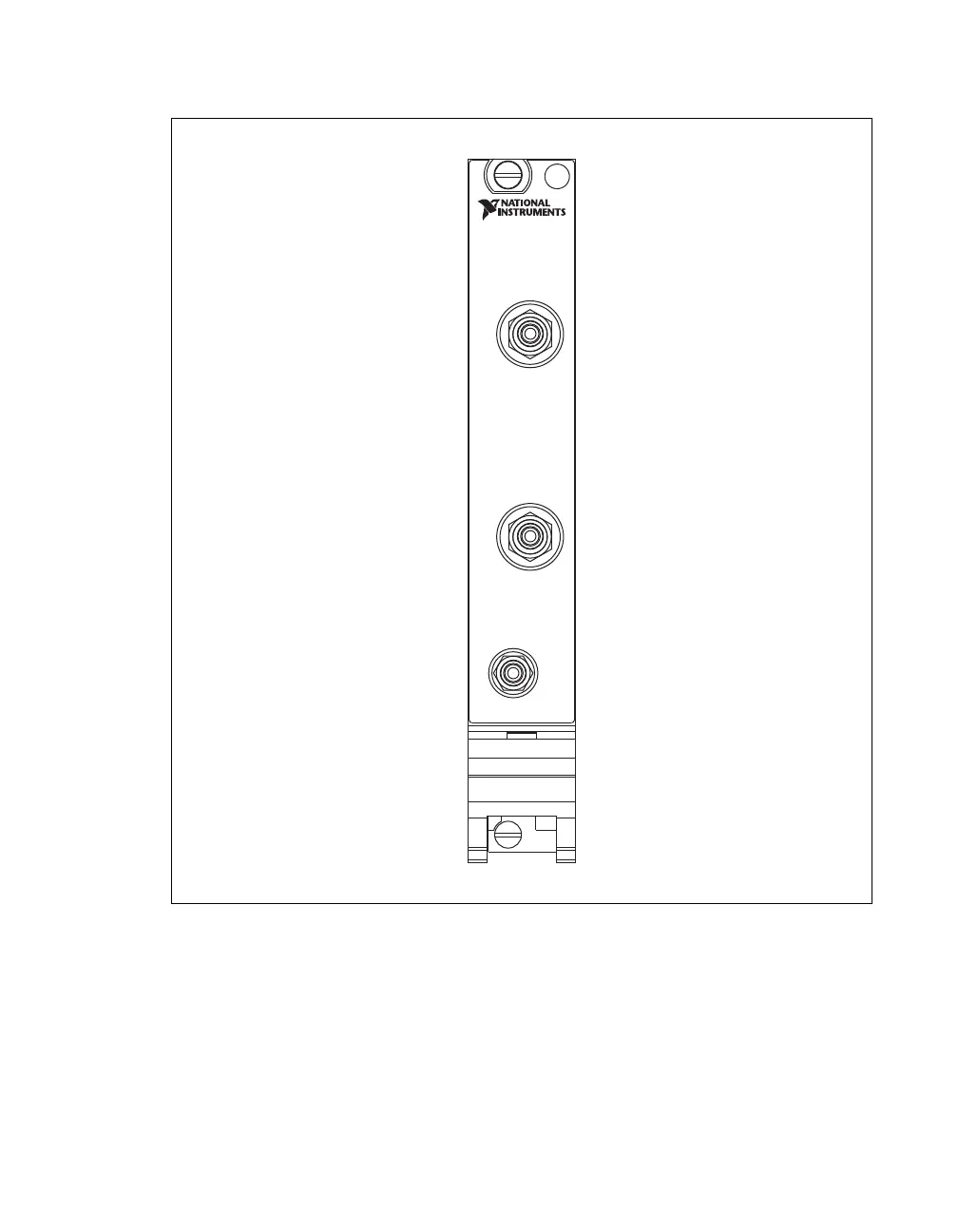

The front panel of the NI 5620 IF digitizer module contains three connectors, as shown in Figure 11.
Figure 11. NI 5620 IF Digitizer Module Front Panel
50 Ω
+20 dBm MAX
50 Ω
+16 dBm MAX
INPUT
REF CLK IN
PFI 1
NI 5620
64 MS/s Digitizer
