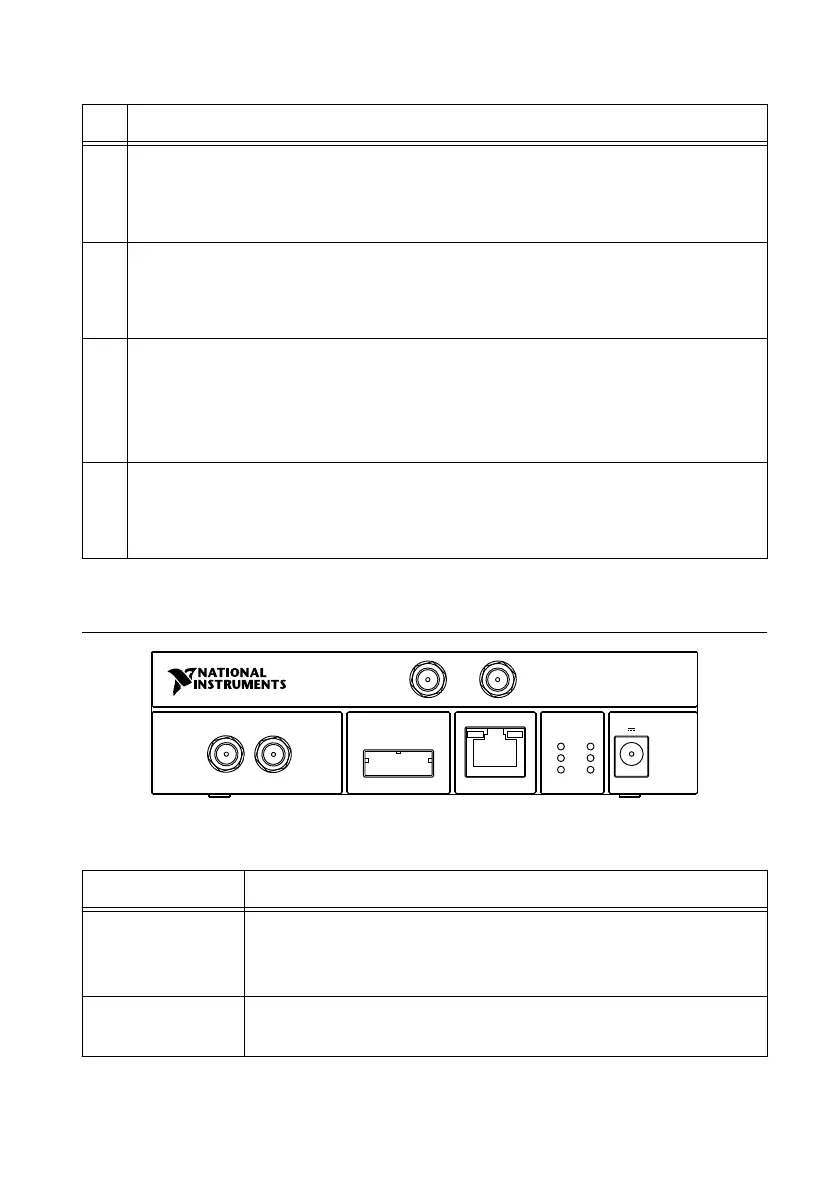

Table 7. NI USRP-2920 Module LEDs (Continued)
LED Indication
C Indicates the receive status of the module:
OFF—The module is not receiving data.
GREEN—The module is receiving data.
D Indicates the firmware status of the module:
OFF—The firmware is not loaded.
GREEN—The firmware is loaded.
E Indicates the reference lock status of the LO on the module:
OFF—There is no reference signal, or the LO is not locked to a reference signal.
BLINKING—The LO is not locked to a reference signal.
GREEN—The LO is locked to a reference signal.
F Indicates the power status of the module:
OFF—The module is powered off.
GREEN—The module is powered on.
NI USRP-2921
Figure 8. NI USRP-2921 Front Panel
MIMO EXPANSION GB ETHERNET POWER
RX 1
TX 1
REF IN PPS IN
A
C
E
B
D
F
NI USRP
-
2921
2.4 - 2.5 GHz, 4.9 - 5.85 GHz
RX 2
TX 2
6 V 3 A
Table 8. NI USRP-2921 Module Front Panel Connectors
Connector Use
RX1
TX1
Input and output terminal for the RF signal. RX1 TX1 is an SMA (f)
connector with an impedance of 50
Ω and is a single-ended input or
output channel.
RX2 Input terminal for the RF signal. RX2 is an SMA (f) connector with an
impedance of 50 Ω and is a single-ended input channel.
24
| ni.com | NI USRP-29xx Getting Started Guide
