50
14. Reassembly of the Drive Pulley procedure is the reverse of the
removal.
NOTICE: Put the Drive Belt around the edge of the Drive Pulley.
Slowly turn the Drive Pulley and carefully walk the Drive
Belt onto the Drive Pulley. Make sure the Drive Belt is
aligned on the Flywheel Pulley and Drive Pulley.
Be sure to keep ngers clear of all pinch hazards as
you turn the Drive Pulley and Flywheel.
Installation of the Crank Arms does not require the
use of the Crank Puller. Be sure the Crank Arms are
connected at 180° from each other.
15. Make sure that the Drive Belt tension is correct. Refer to the “Adjust
the Belt Tension” procedure.
16. Add Loctite
®
272 (or equivalent) to the inner threads of the Crank
Nut. Do not to apply the Loctite
®
272 to the Crank Shaft.

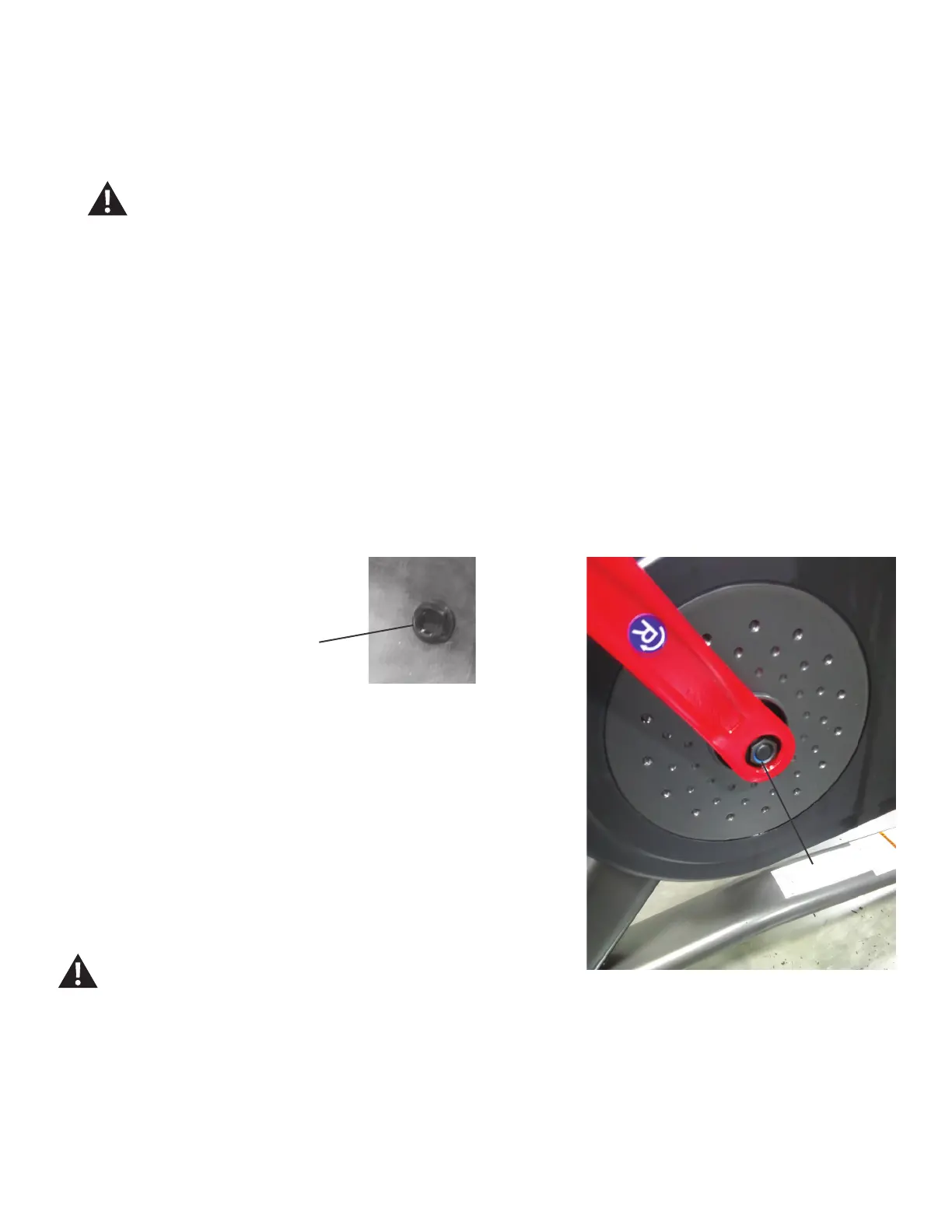

17. Install the Crank Nut onto the Crank Shaft, and fully tighten it.
18. Replace the threaded Cap onto the Crank Arm.
19. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
Crank Nut
Crank Nut
