52
Note: Your machine may not match the images provided exactly.
1. Unplug the AC Adapter from the wall outlet and machine.

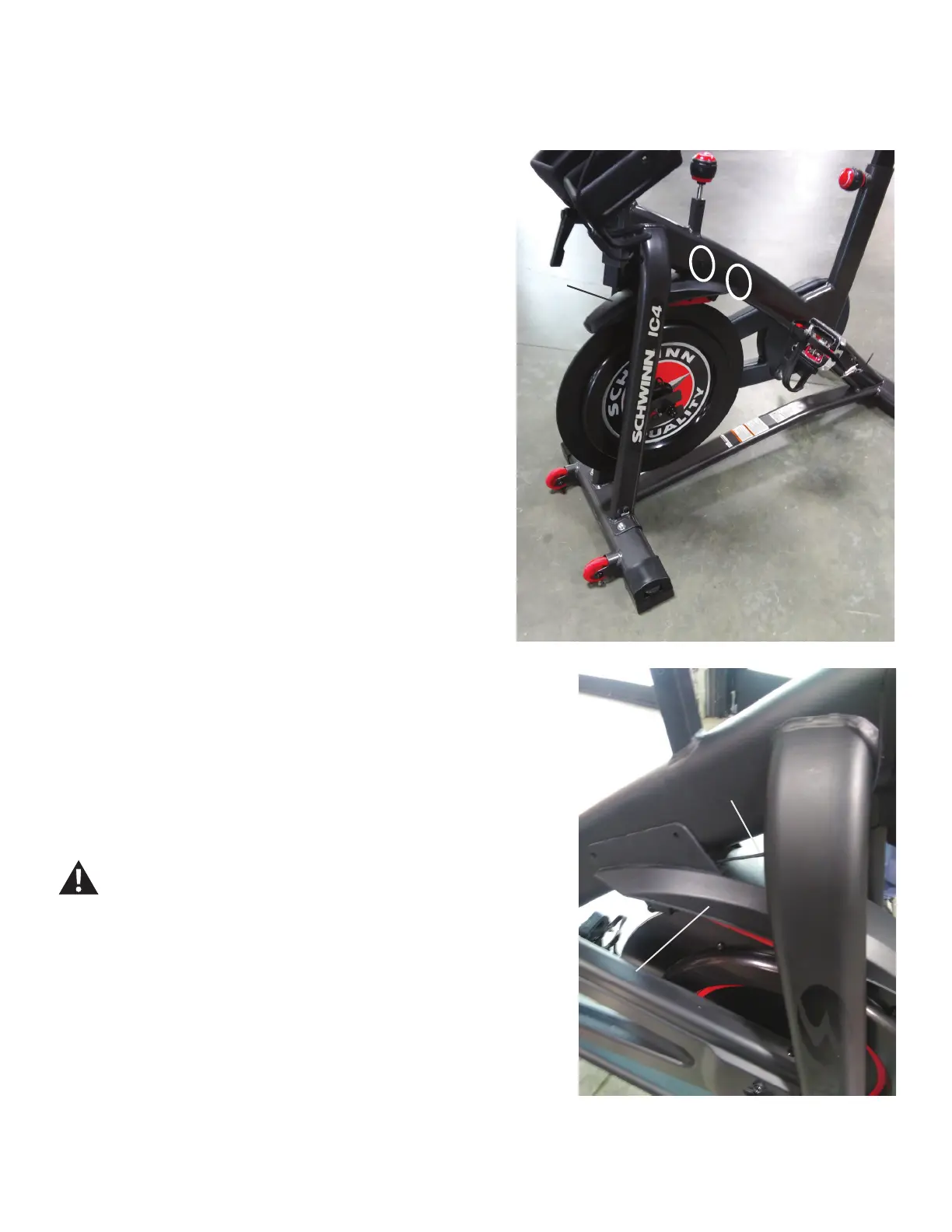

2. Loosen and remove the hardware (indicated by ovals on this side
of the machine) that attaches the Fender to the Main Frame. Set the
hardware safely aside for re-assembly.
NOTICE: Hold the Fender so that it does not fall.
3. Remove the Fender from the front of the machine after noting how
the Resistance Cable routes through it.
NOTICE: Do not crimp the cable.
4. Install the new Fender, making sure the Resistance Cable is routed
between the Frame and the top of the Fender.
5. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
Fender
Resistance Cable
Fender
To Next Page
