64
Flywheel Axle
Tensioner Eyebolt
Outer
Flywheel
Retainer
Nut

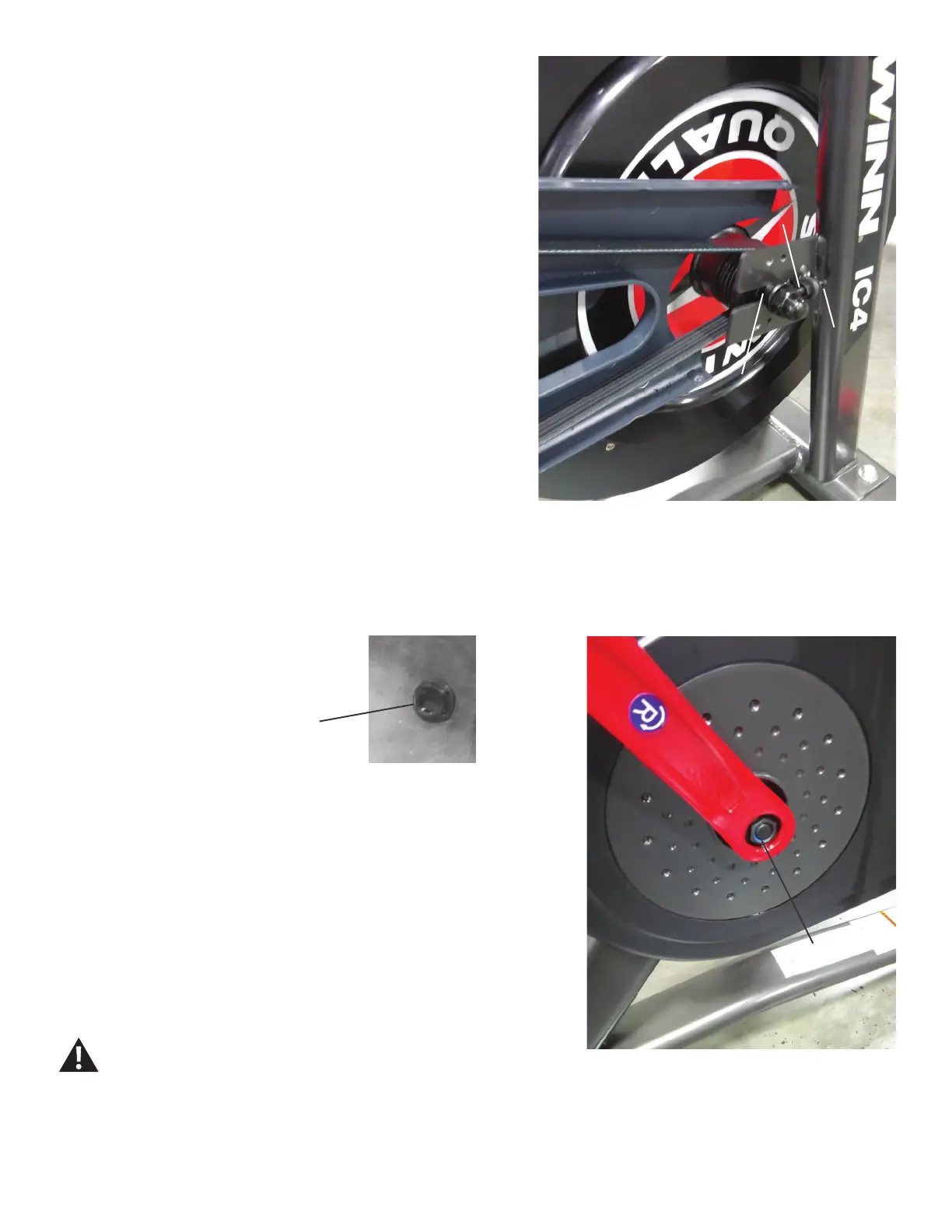

10. Using a 10mm wrench, loosen and remove the outer Flywheel Retainer
Nut from the Tensioner Eyebolt. Remove the Tensioner Eyebolt and Inner
Retaining Nut from the Flywheel Axle and Tensioner Support Bracket.
11. Place the inner Retaining Nuts in the same location on the new
Tensioner Eyebolts.
12. Place the Tensioner Eyebolts on the Flywheel Axle, and through the
Tensioner Support Bracket.
13. Re-install all remaining parts that were removed in reverse order up to
the Crank Nut.
NOTICE: Do not crimp any cables. Install the Flywheel Tensioners
at the position that you recorded in Step 9. Make sure
the Flywheel can turn easily and is centered on the Brake
Assembly.
Installation does not require the use of the Crank Puller. Be sure the Crank
Arms are connected at 180° from each other.
14. Add Loctite
®
272 (or equivalent) to the inner threads of the Crank Nut.
Do not to apply the Loctite
®
272 to the Crank Shaft.
15. Install the Crank Nut onto the Crank Shaft, and fully tighten it.
16. Replace the threaded Cap onto the Crank Arm.
17. Final Inspection
Inspect your machine to ensure that all hardware is tight and components are
properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
Crank Nut
Crank Nut
