Power Inlet Cable
Power Input Connection
6. Remove the Power Inlet Grommet that is on the other side of the
Frame Assembly from the Power Inlet.
7. From the Power Inlet Grommet opening, gently pull the Power
Inlet Cable from the Frame Assembly.
8. Remove the old Power Inlet Cable from the Power Input
Connection, and replace with the new Power Inlet Cable.
9. Gently pivot the Power Inlet Cable into place on the Frame
Assembly, and secure it to the Frame Assembly with the securing ring.
10. Replace the Power Inlet Grommet. Be sure not to push it into the
Frame Assembly.
11. Gently pull out the slack of the Console Cable from the Frame
Assembly to the original position.

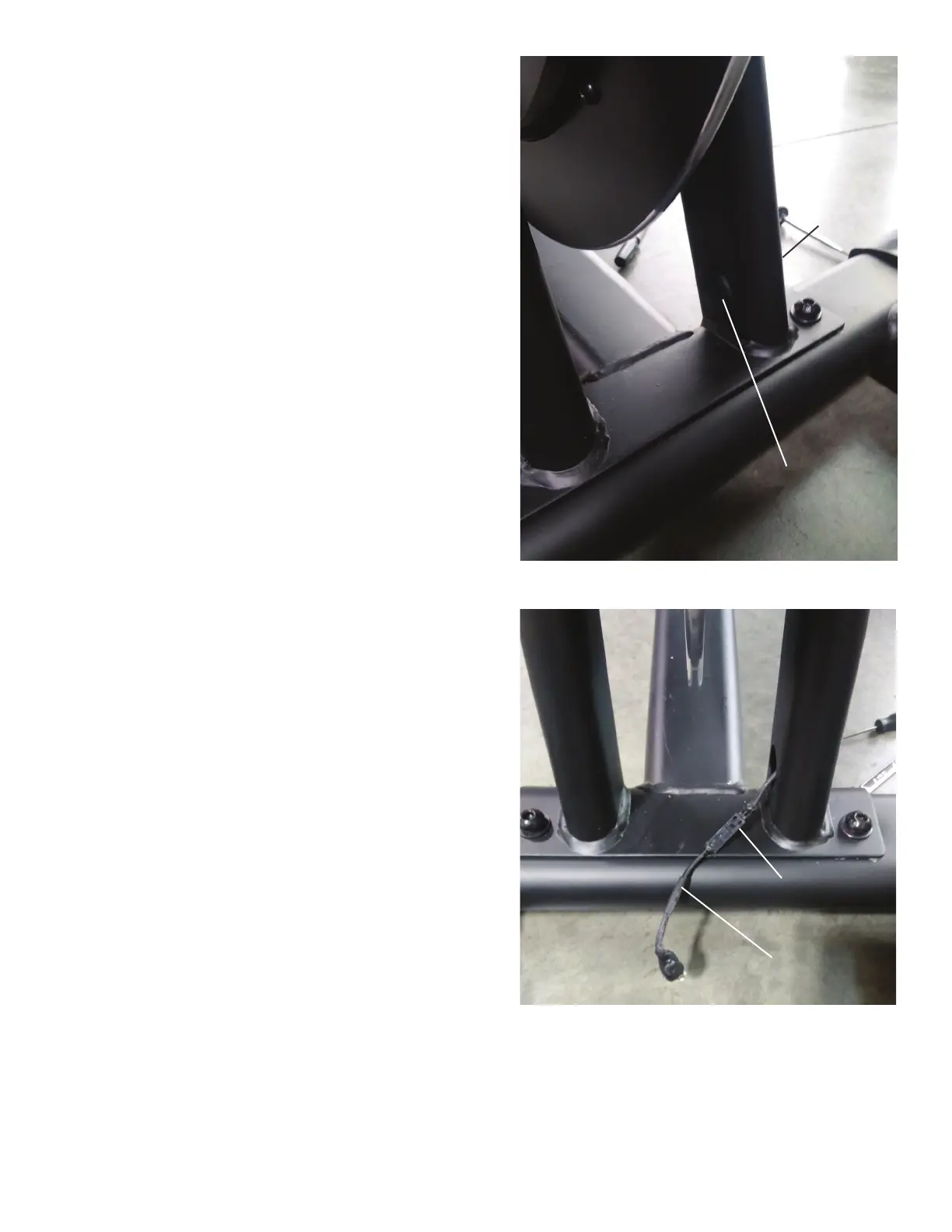

Power Inlet
Power Inlet Grommet
To Next Page
