Step 6: Install Guide Rods
Locate the following for this step:
Parts:
• Ref 4, Bumper, Guide Rod Qty. 2
• Ref 9, Tube, Guide Rod Qty. 2
• Ref 10, Guide Rod Bushing Qty. 2
Hardware:
• Ref 9, 1/2” Washers Qty. 2
Tools:
• None

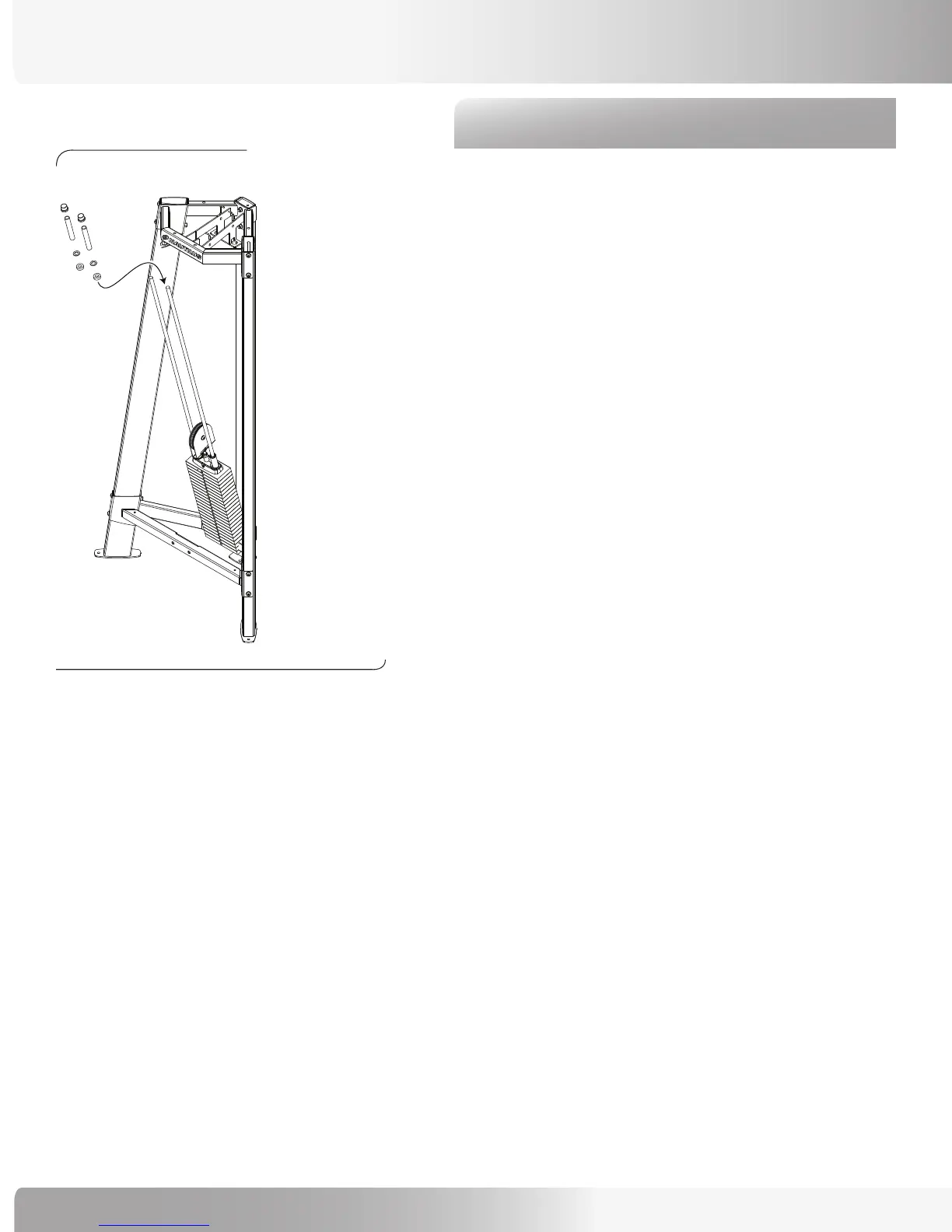

Refer to Figure 8:
6-1 Place the components onto the Guide Rod ends in
the order shown.
Note: Do not lift the Guide Rods into place at this time.
Figure 8:
