Nautilus F3AT - Step 7: Install Seat Guide Rods into Upper Triangle Weldment

17
Nautilus® Commercial Free Weights Adjustable Tower Assembly Manual
Step 7: Install Seat Guide Rods into Upper Triangle
Weldment
Locate the following for this step:
Parts:
• None
Hardware:
• Ref 4, 1/2” x 2 3/4” Button Head Bolt Qty. 2
• Ref 11, 1/4” x 3/4” Thread Cutting Screw Qty. 1
• Ref 10, 1/2” Nuts Qty. 2
• Ref 9, 1/2” Washers Qty. 4
Tools:
• Ref 16, 5/16” Allen Wrench
• Ref 13, 5/32” Allen Wrench
• 3/4” Wrench
Refer to Figure 9:
7-1 Tip the Guide Rods to a vertical position. Lift the
Guide Rods one at a time so that the Guide Rod
Bushing is seated completely into the Upper
Triangle Weldment.
7-2 Place the 1/2” x 2 3/4” retaining bolt into the hole
just below the Guide Rod and secure with a 1/2”
nut.
7-3 Repeat 7-1 and 7-2 for both sides.
7-4 Attach the Pin Rope to the Second Plate using the
1/4” x 3/4” Thread Cutting Screw.
7-5 Firmly tighten the hardware.

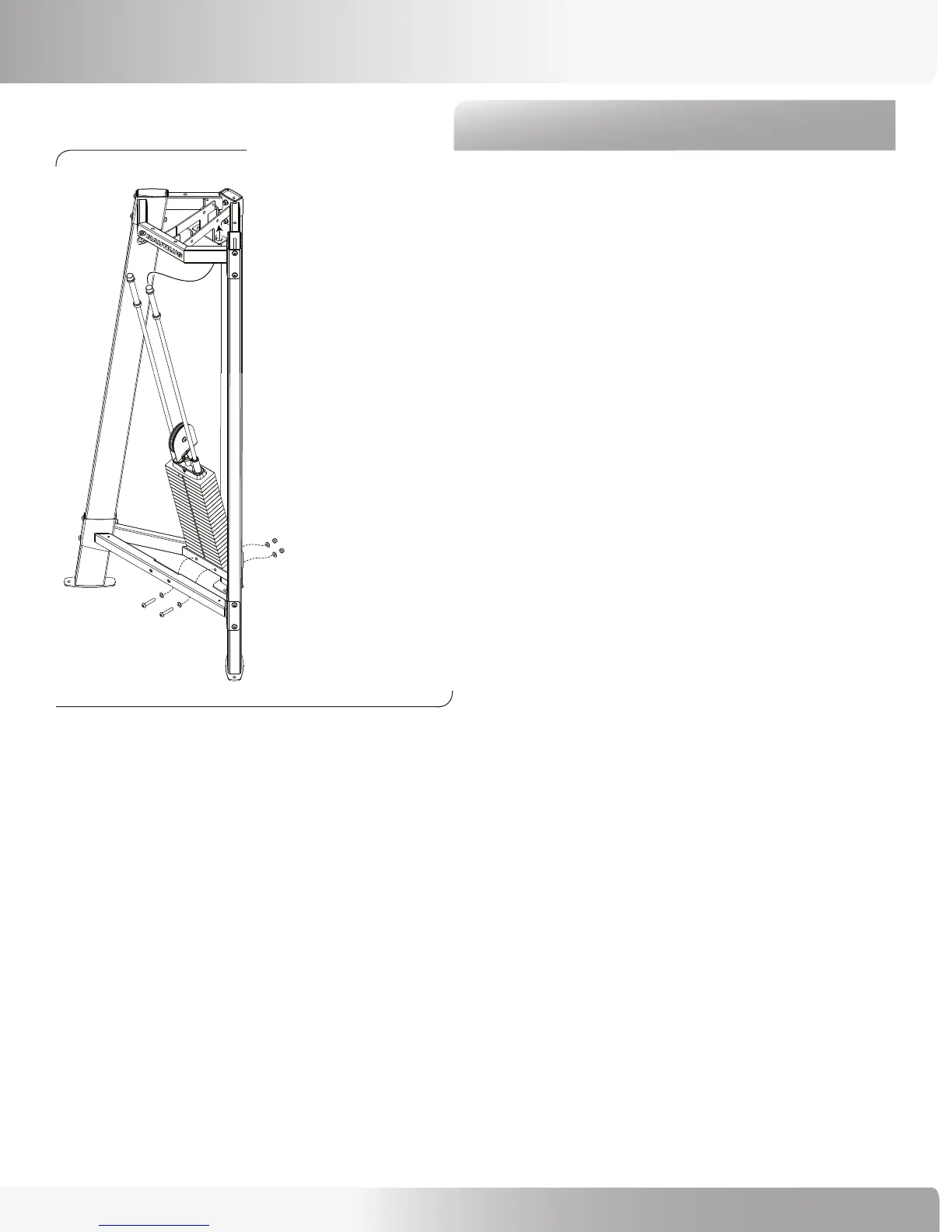

Figure 9:
ASSEMBLY GUIDE
