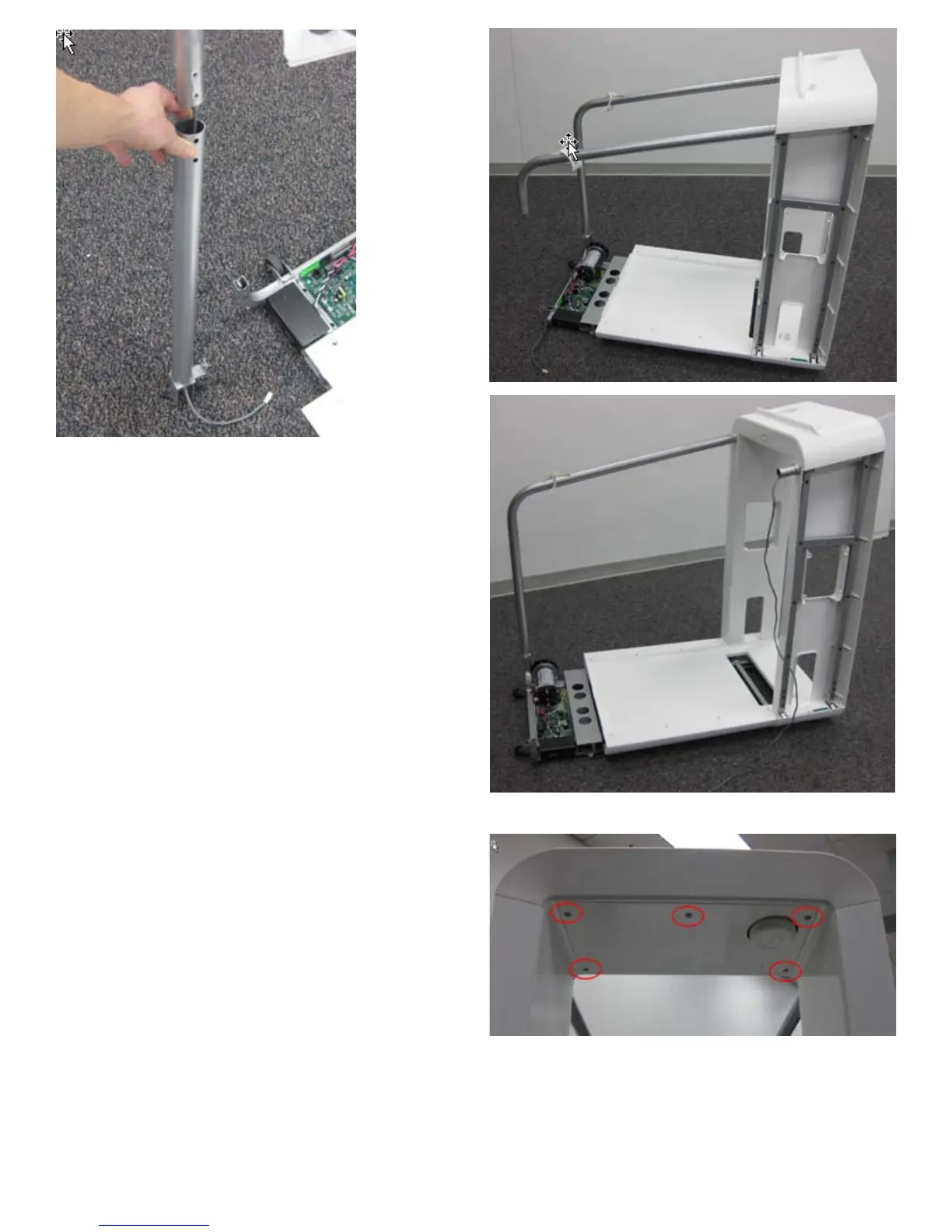

12. Move the Lower Right Hand Bar back until it can be removed, and pull the data
cable through tube.
13. Remove right Upper Hand Bar and pull cable through the tube.
14. Remove the 5 indicated screws from Console Access Door using a #2 Phillips
screwdriver.
15. Lower the Console Access Door and set aside (Use Caution! Door can fall when
last screw is removed – tape can be used to temporarily hold door in place).
