9

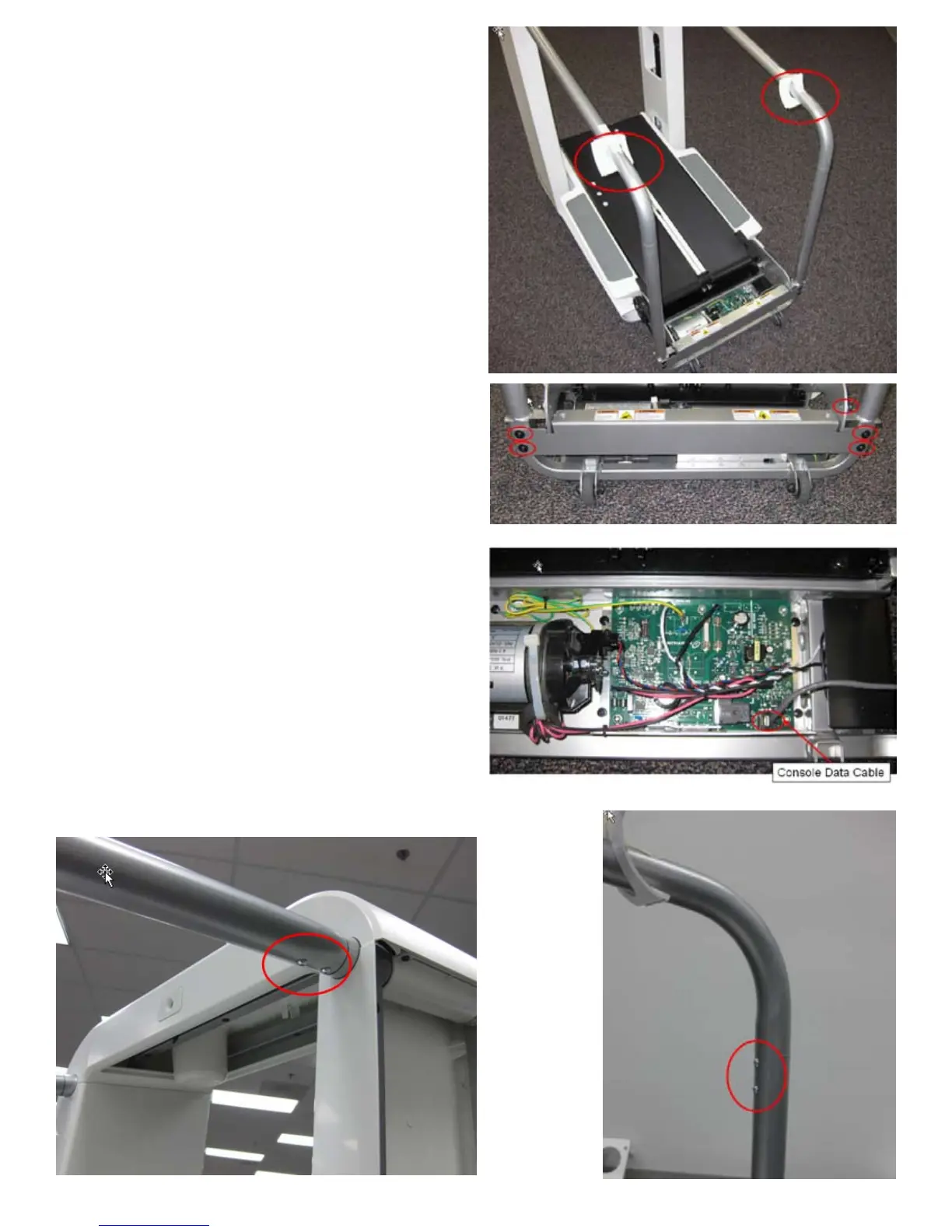

7. Slide both Bar Covers to the Upper Hand Bars and tape them there.
8. Remove the 4 bolts indicated from the Rear Upright Support Bracket using a 4mm
hex wrench and remove it.
9. Remove indicated bolt between right side Upright and right Roller Plate.
10. Disconnect Console Data Cable.
11. Using a 3 mm hex wrench, remove the 4 indicated bolts from the right Hand Bars.
