Nautilus Mobia User Manual

8
Part Replacement
Replacing the I/O Data Cable
!
To reduce the risk of electrical shock, always unplug the power
cord and wait 5 minutes before cleaning, maintaining or repairing this machine.
Tools Required: #2 Phillips Screwdriver

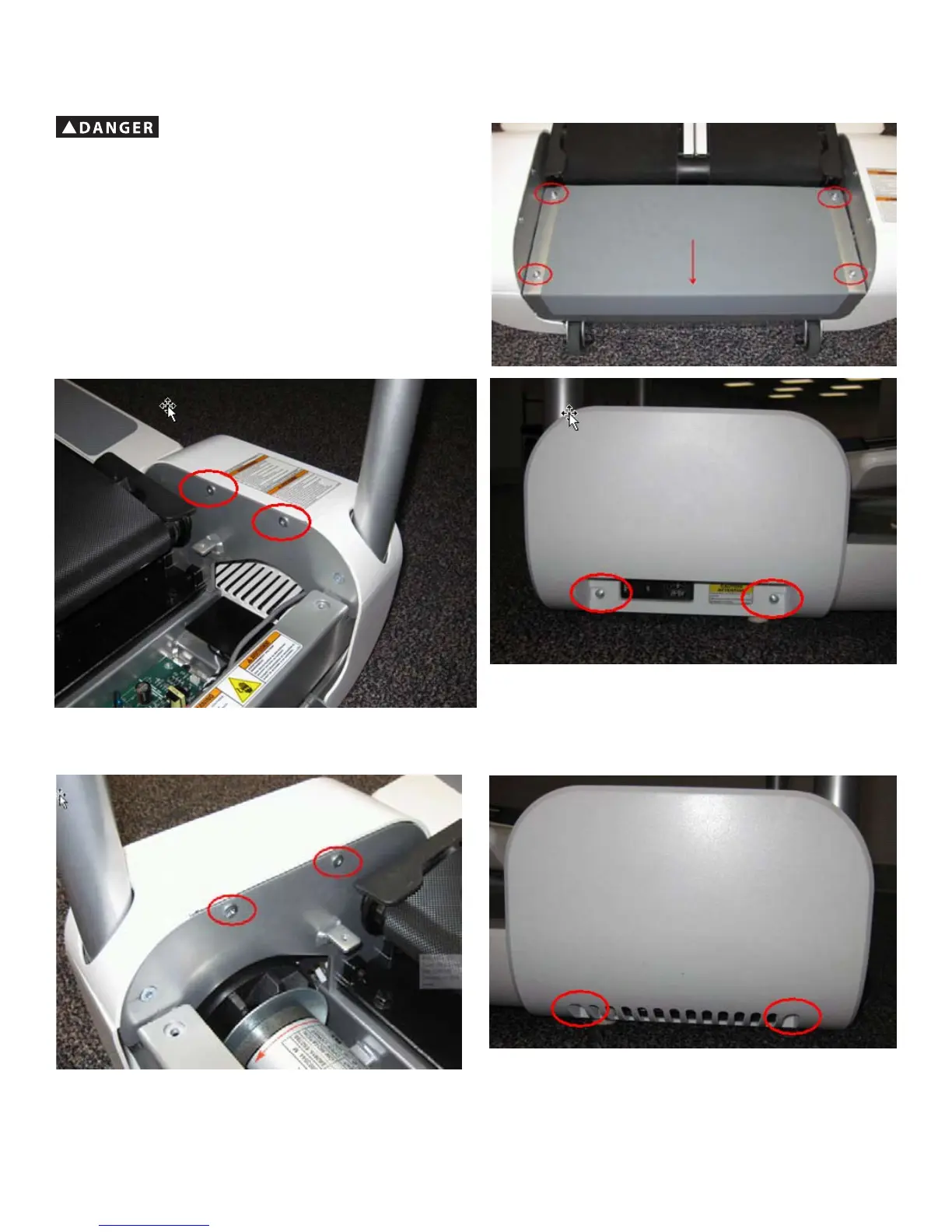

1. Remove 4 indicated bolts using 4mm hex wrench.
2. Slide Rear Step toward back of machine, and lift off.
3. Remove 4 indicated screws using a #2 Phillips screwdriver.
4. Slide Right Rear Side Cover off of machine.
5. Remove 4 indicated screws using a #2 Phillips screwdriver.
6. Slide Left Rear Side Cover off of machine.
