Nautilus Mobia - Page 28

28

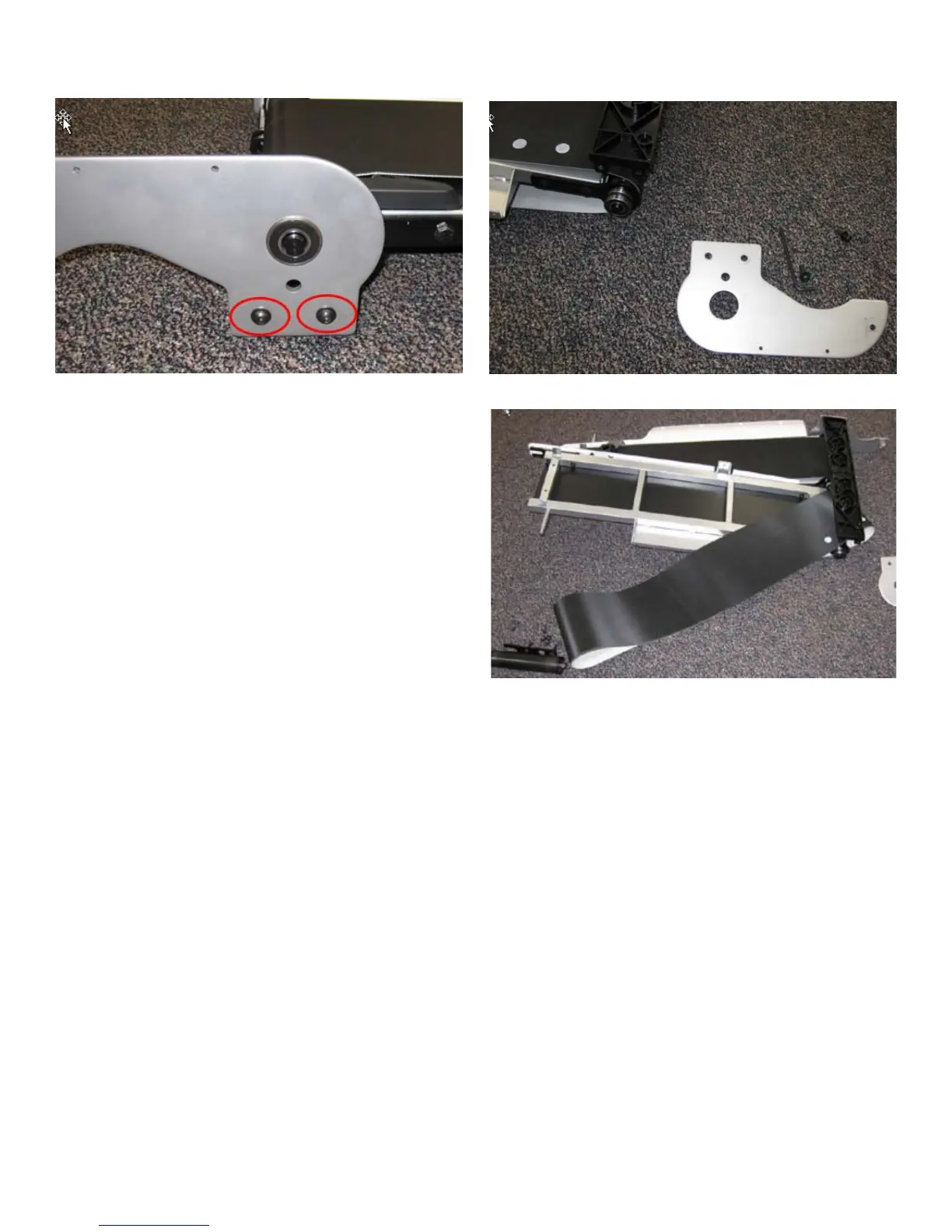

12. Remove the 2 indicated bolts from the Side Bearing Plate using a 5 mm hex wrench.
13. Remove the Side Bearing Plate from the Bearing by hand.
14. Elevate the Treadle slightly and slide the belt off.
15. Installation is the reverse procedure. Follow the same procedure for the op-
posite side.
