Nautilus Mobia - Page 27

27

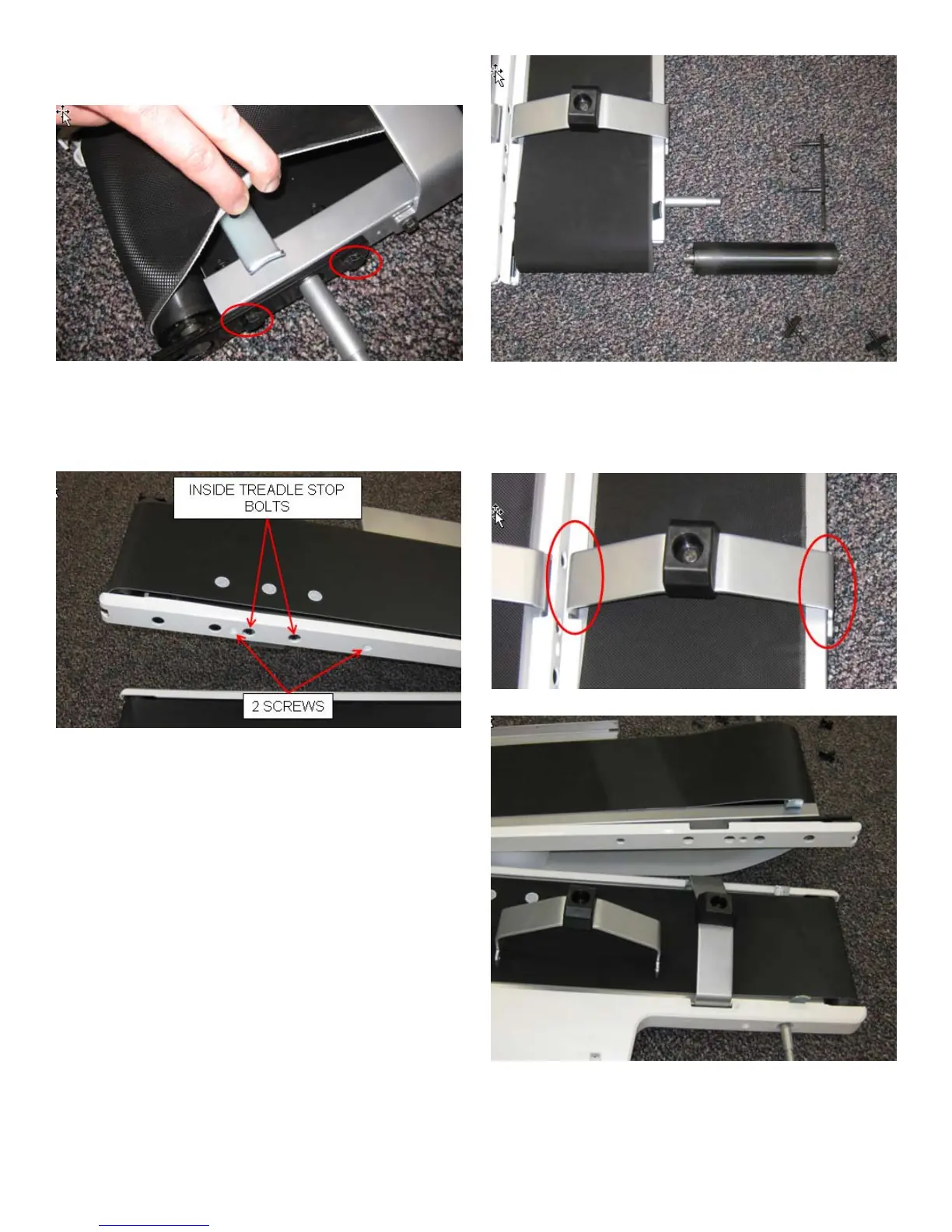

7. Remove the 2 Roller Bracket bolts using two 13 mm wrenches.
8. Remove the Front Roller by sliding it out of the belt.
9. Remove the 2 indicated screws using a #2 Phillips screwdriver.
10. Remove the 4 bolts holding the Treadle Stop on using a 10 mm socket.
11. Pull the plastic out of the way and remove the Treadle Stop.
