34

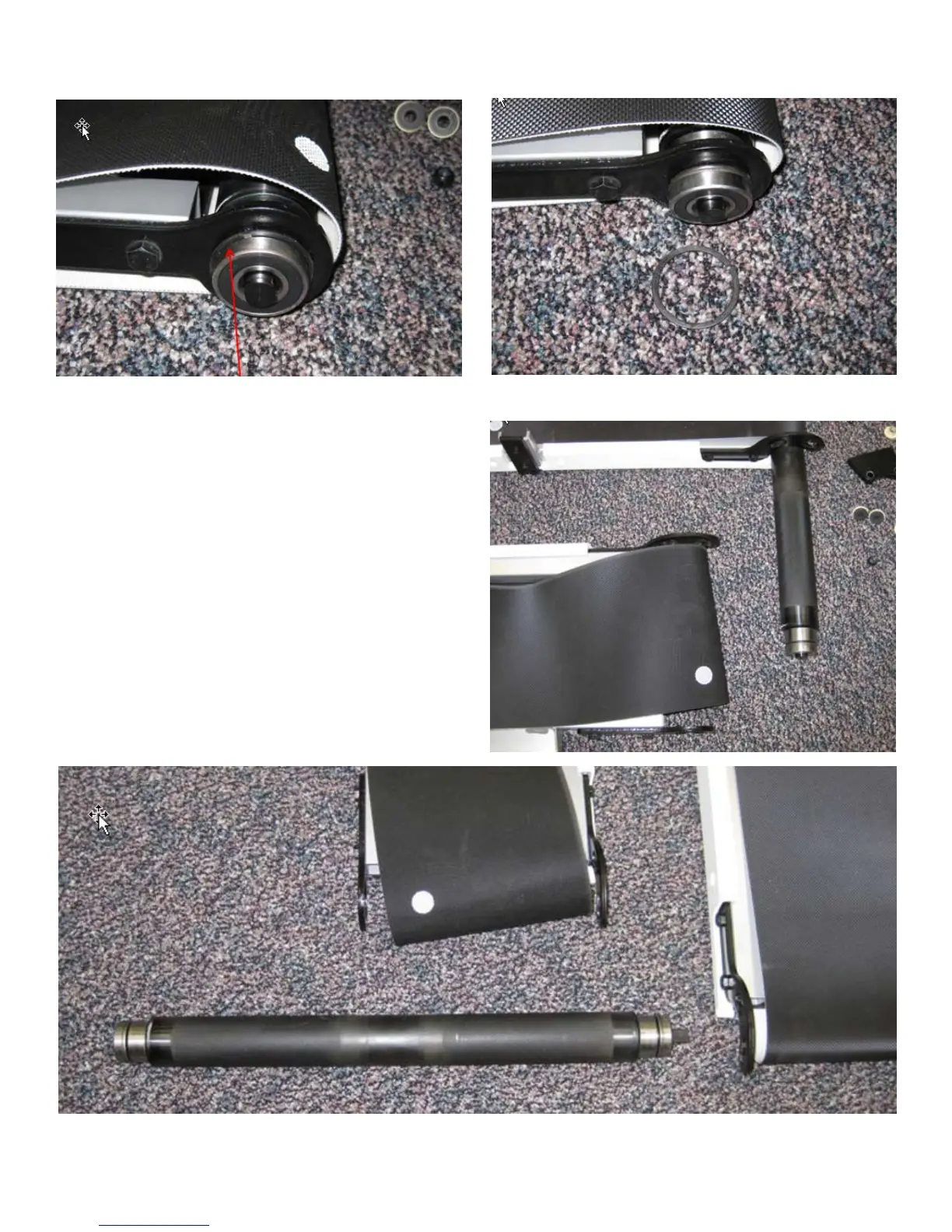

8. Remove the Bearing Snap Rings from both sides.
9. Procedure is identical for both sides.
10. Slide the Treadle off of the Roller Bearing until clear of Rear Roller.
11. Slide the Rear Roller out of the second Treadle
12. Assembly is the reverse procedure. See Virtual Pivot Replacement instructions
for correct assembly method
