8. The Virtual pivot can be assembled in one of two ways – this is the preferred
method.

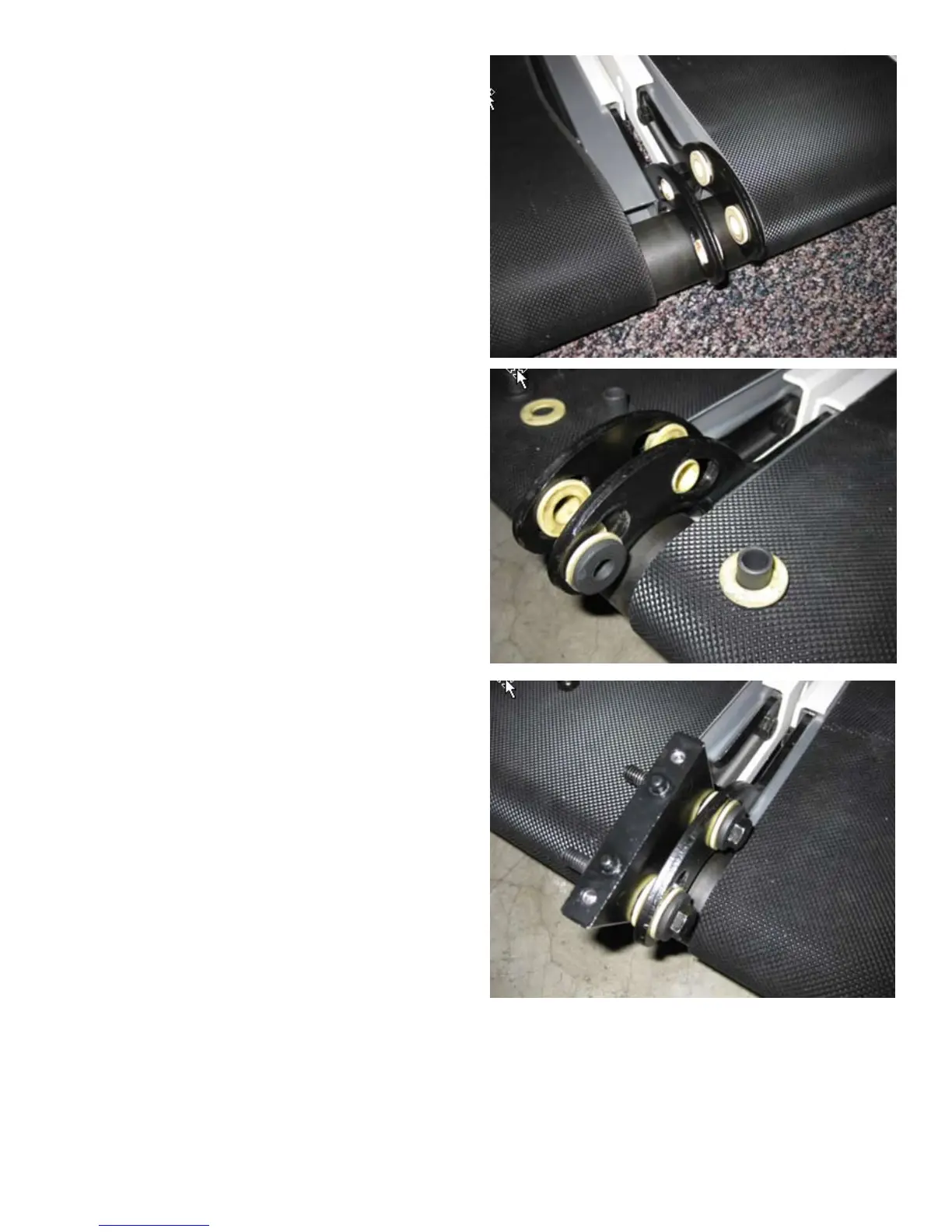

9. Install ‘hat’ shaped yellow bushings into pivot arms.
10. Install ‘washer’ shaped yellow bushings onto metal spacers.
11. Insert 4 metal spacer / washer assembly into hat shaped bushings.
12. Align center block and re-install fasteners – tighten only until nut has bot-
tomed out on the metal spacers – excessive tightness will cause the metal spacer
to crack.
13. Remaining assembly is the reverse procedure.
