Replacing the Hydraulic Cylinder (shocks)
!
To reduce the risk of electrical shock, always unplug the power cord and wait 5 minutes before cleaning, maintaining or repairing this machine.
Tools Required: #2 Phillips Screwdriver, 13 mm wrench, 5 mm hex head wrench

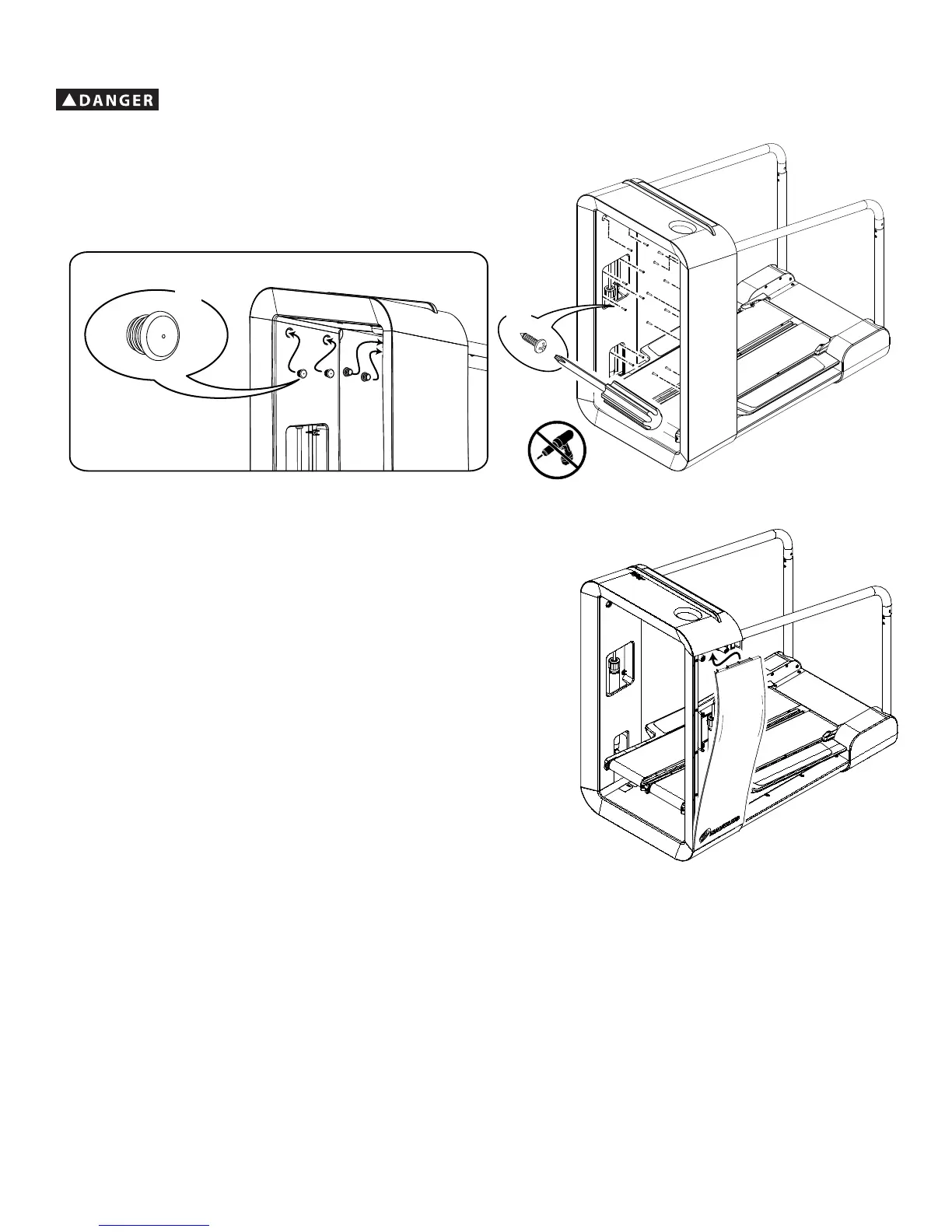

1. Remove the 4 screw plugs (R) .
2. Remove the 16 indicated retaining screws(P) from each side using a Phillips
screwdriver.
#2
P
X16
X4
R
#2
P
X16
X4
R
3. Remove the outer Upright Covers by pulling at the center and flexing outward.
Set them aside.
