Nautilus Mobia - Page 39

39

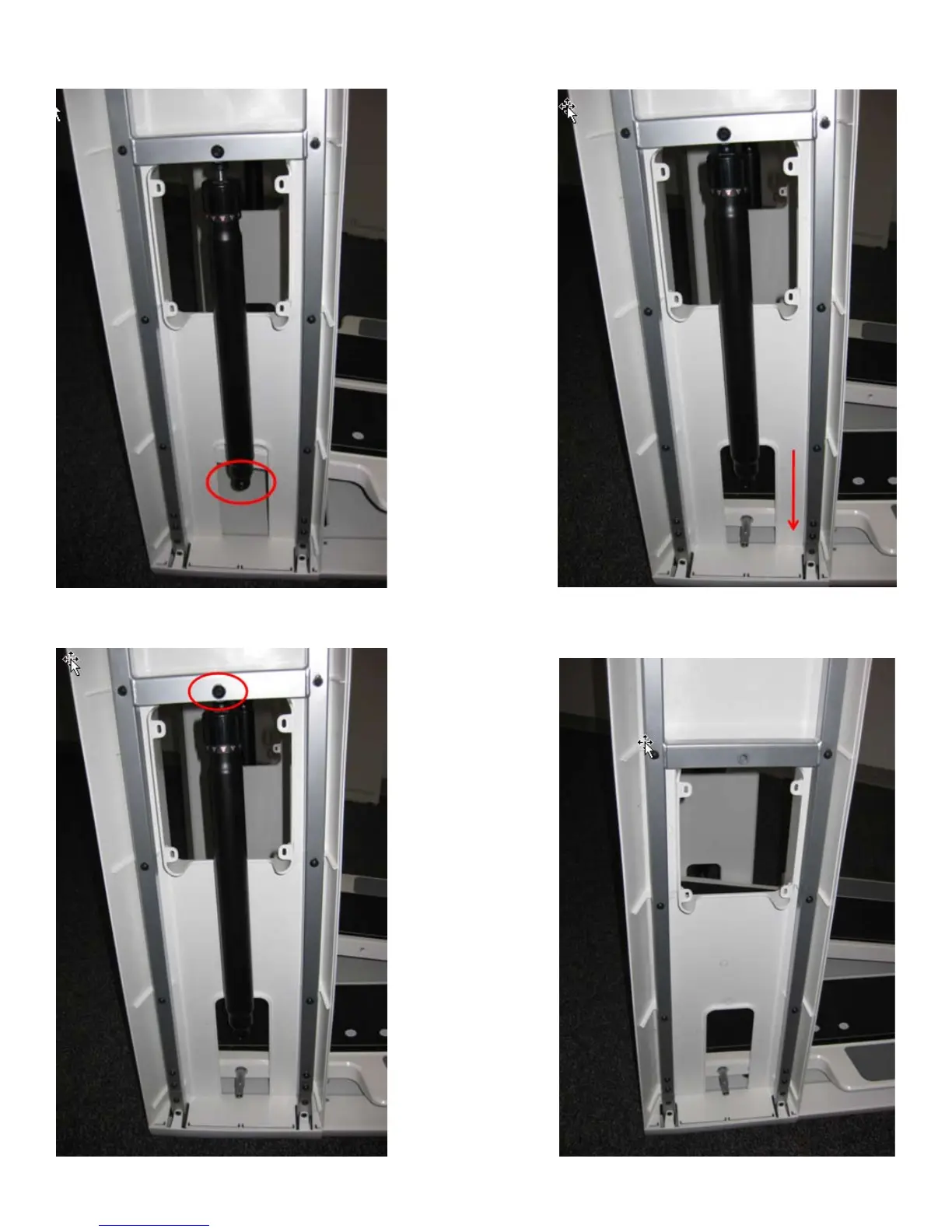

4. Remove the lower Cylinder bolt using a 5 mm hex wrench.
5. Swing the Cylinder to the side while supporting the Treadle with one hand. Lower the Treadle.
6. Remove the upper Cylinder bolt using a 5 mm hex key and 13 mm wrench.
7. Remove the Cylinder.
8. Installation is the reverse of this procedure
