Nautilus NT-1830 User Manual

5a
6
7
9
11
18
Pec Pad Collar
Pec Fly Pad
Seat Back
Cap Screw - 3/8" x 2.75"L
3/8" Washer
5/16" Set Screw (Preassembled)
2
2
1
2
2
2

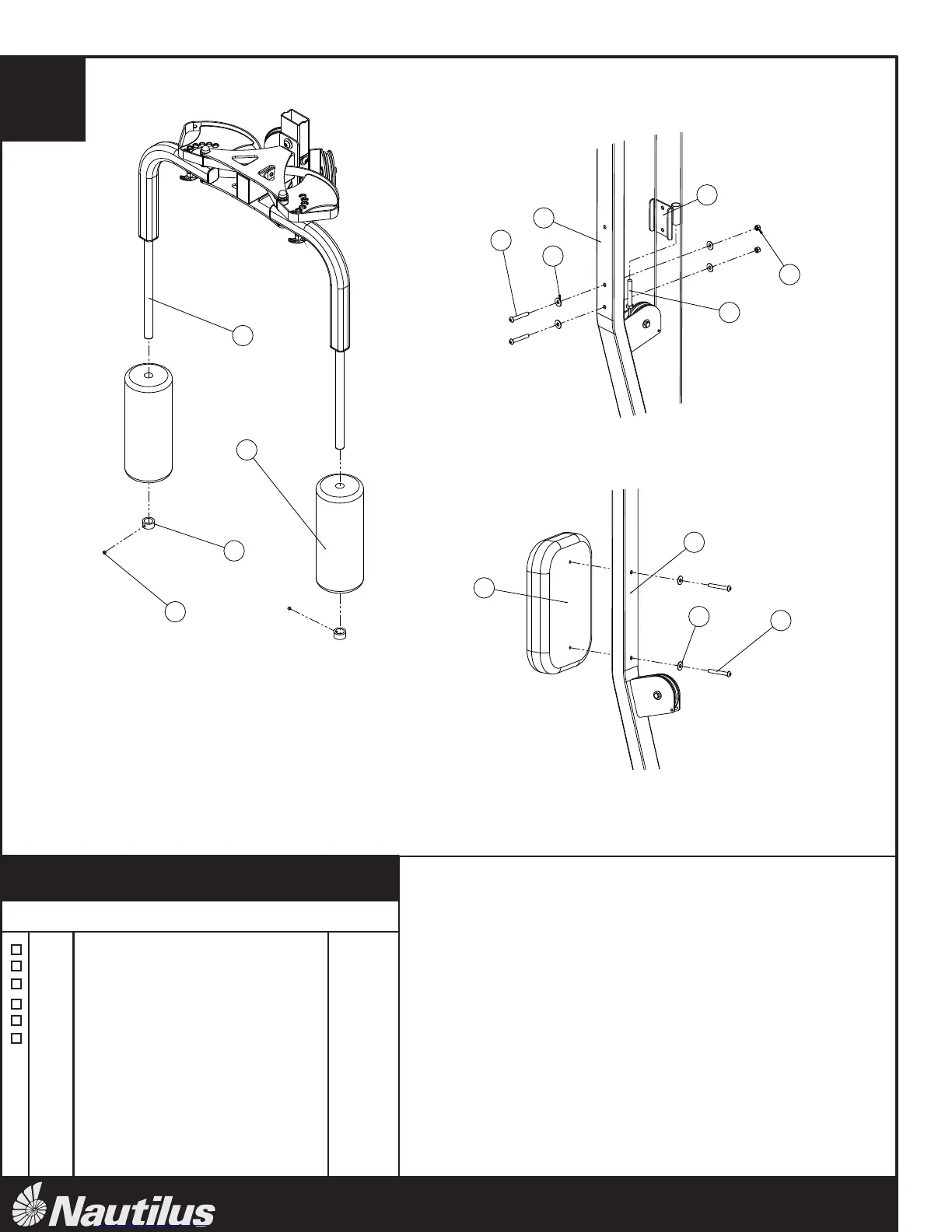

A.
Slide the PEC FLY PAD (6) onto the Right Pec Arm Assembly
(A) and secure with a PEC PAD COLLAR (5a) and a 5/16"
SET SCREW (18). Tighten all hardware.
B.
Repeat step A for the Left Pec Arm Assembly.
C.
Remove the Lat Cable (G) from the Lat Cable Termination
Assembly (B). Remove the Lat Cable Termination Assembly
(B) from the Lat Upright Assembly (F) and all hardware
(C, D, and E). Discard the Lat Cable Termination Assembly
(B) and all hardware (C, D, and E)
TM
5
step
3
Step #3 Materials:
#
Description
Qty.
NT-1830
D.
Attach the SEAT BACK (7) to the Lat Upright Assembly (F)
with the hardware shown. Tighten all Hardware.
18
5a
6
A
D
C
G
B
F
E
9
11
F
7
