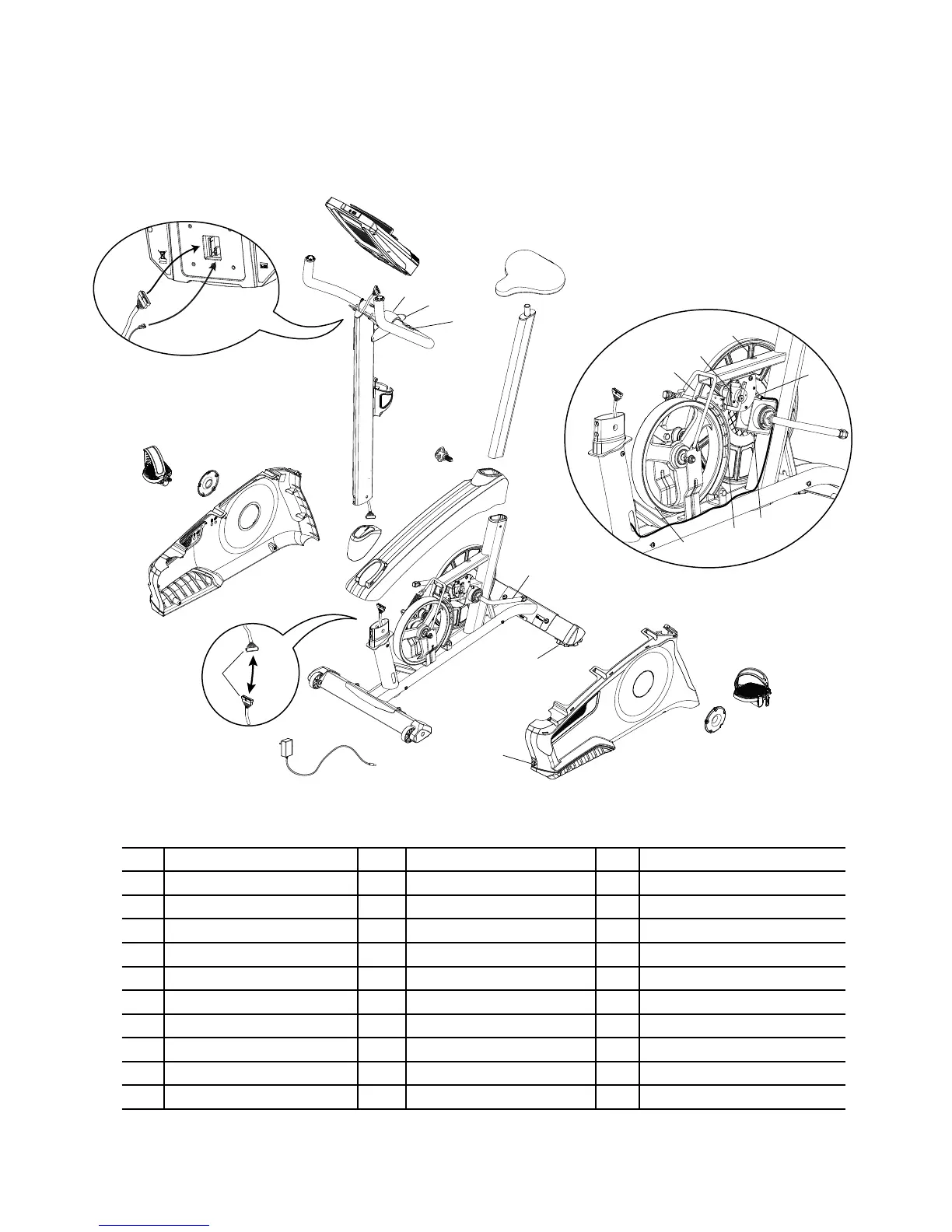

Maintenance Parts Exploded View
Your machine may differ. Use only as a guide.
U624
A
B
C
C
D
E
F
G
H
I
J
J
A
K
L
J
M
N
O
P
Q
R
S
T
U
V
W
X
D
AA
BB
CC
Z
Y
DD
EE
FF
FF
A Console L HR Cable W Flywheel
B Console Mast M CHR Sensors X Brake Assembly
C Pedals N Seat Y RPM Sensor
D Crank Arms O Seat Post w/ Slider Z Speed Sensor Magnet
E Left Shroud P Adjustment Knob AA Servo Motor
F Power Inlet Q AC Adapter BB Drive Belt
G Right Shroud R Water Bottle Holder CC Drive Pulley
H Top Shroud S Rear Stabilizer DD Handlebar Mount Cover
I Mast Gasket T Levelers EE T-handle
J Data Cable U Front Stabilizer FF Cover, Crank Disc
K Handlebars V Transport Wheels
