NOTICE:,WLVQHFHVVDU\WRUHPRYHWKH6KURXGVIRUWKLVSURFHGXUH5HIHUWRWKH³5HSODFHWKH6KURXGV´SURFHGXUH

,WLVQHFHVVDU\WRDGMXVWWKH'ULYH%HOWWHQVLRQDWWKHHQGRIWKLVSURFHGXUH5HIHUWRWKH³%HOW7HQVLRQ$GMXVWPHQW´SURFHGXUH

1RWH<RXUPDFKLQHPD\QRWPDWFKWKHLPDJH)RUUHIHUHQFHRQO\

1. Carefully remove the Shrouds. Refer to the “Replace the

Shrouds” procedure in this manual.

2. Observe the EMS Cable routing from the EMS Motor

Control Board (MCB) Watts assembly to the EMS Engine

assembly.

Note: Be sure to note where all cables are routed for re-

assembly.

3. Remove the ziptie(s) that holds the EMS Cable.

4. Disconnect the EMS Cable from the EMS MCB Watts

assembly after noting the connector location.

NOTICE: Do not crimp the cables.

5. Using the needlenose pliers, release the Belt Tensioner

spring (A) from the Tensioner arm (F). Set the spring safely

aside for reassembly.

Disconnect all power to the machine before you service it.

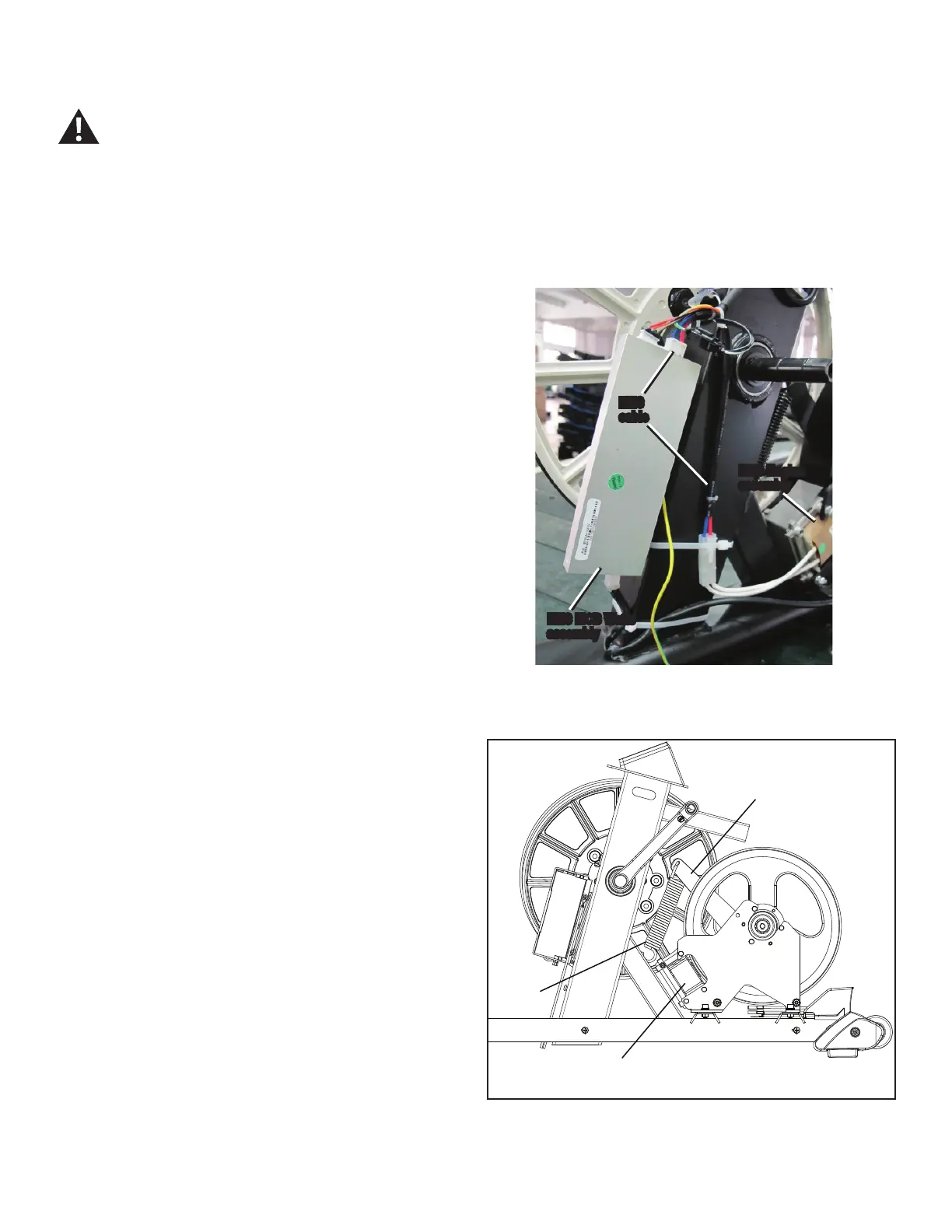

R628 right side view

EMS MCB Watts

assembly

EMS

cable

EMS Engine

assembly

EMS engine

)
