Nautyl PHCP80 - Dimension

6
IV. Dimension

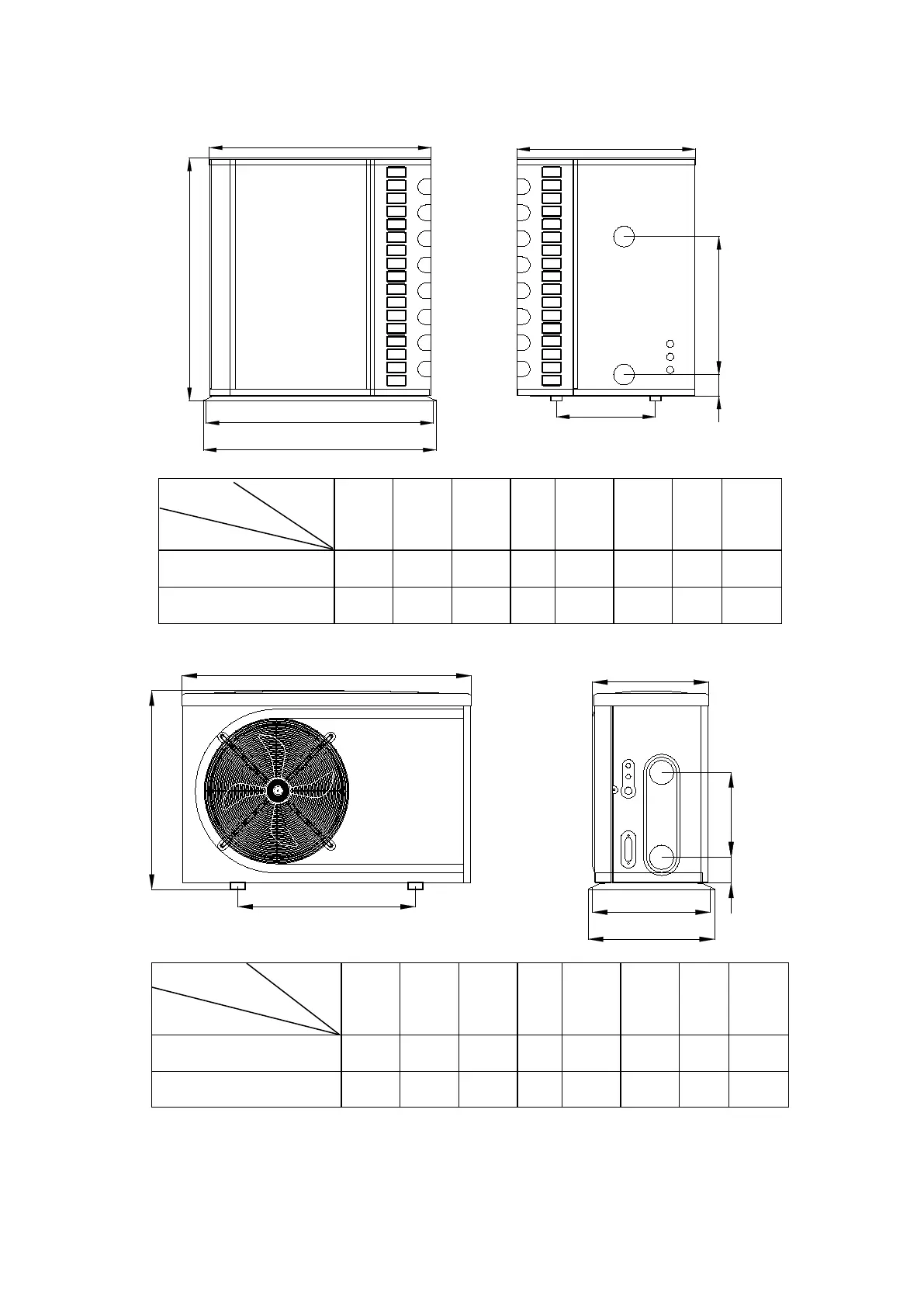

Note: The picture above is the specification diagram of the pool heater, for technician’s installation and layout reference
only. The product is subject to adjustment periodically for improvement without further notice.
A B C D E F G H
PHCP110 879 383 690 900 857 530 83 933
PHCP80 662 452 694 687 652 360 83 734
A B C D E F G H
PHCP50 392 590 398 420 961 280 84 658
PHCP65 395 590 387 420 961 380 77 758
E
H
C
B
D
A
FG
Name
Size(mm)
Model
E
B
H
C
FG
D
A
Size(mm)
Name
Model
