Nautyl PHCP80 - Installation Guide

7
V. Installation Guide

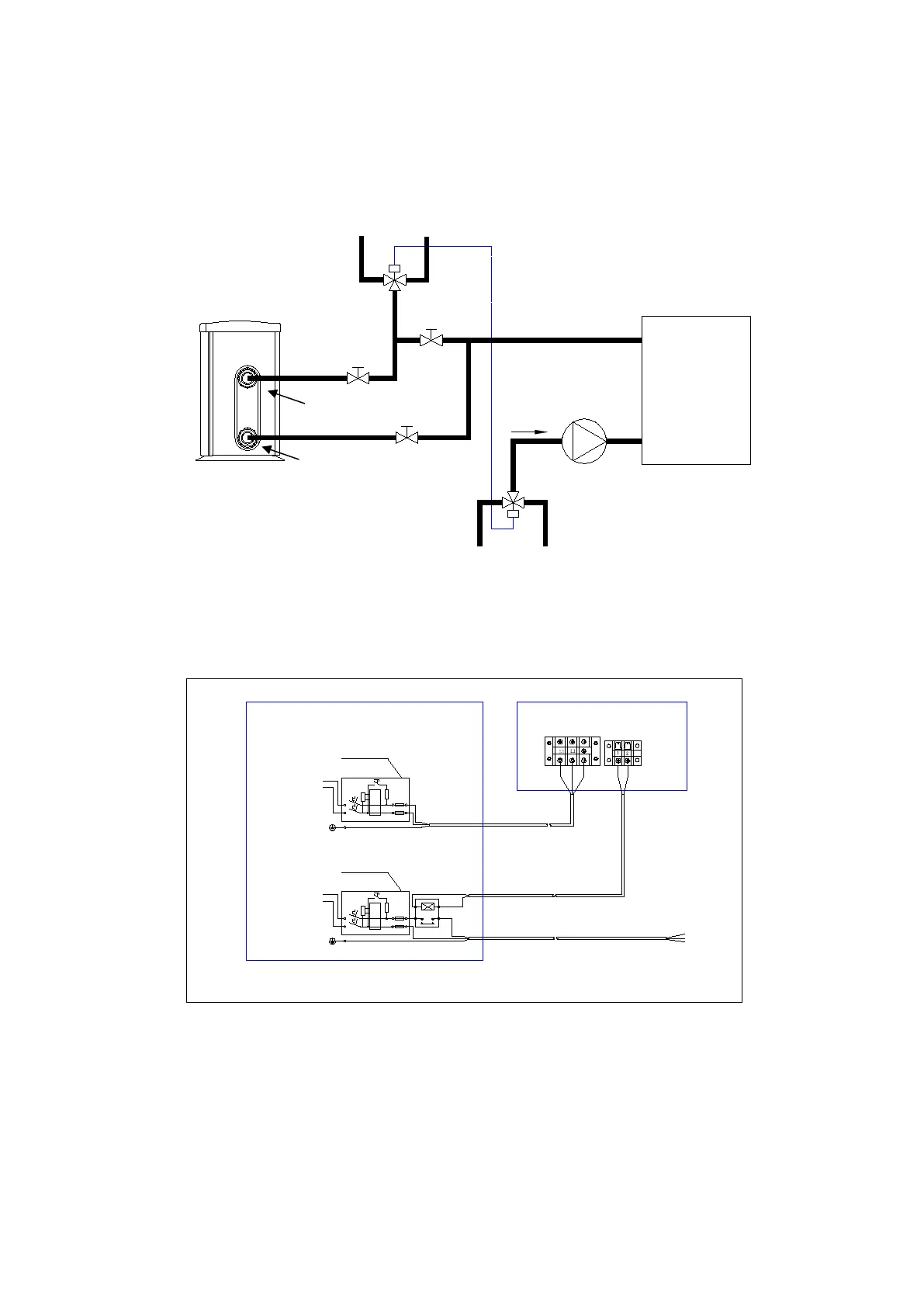

1. Drawing for water pipes connection
Pump
POOL WATER IN
WATER TO SWIMMING POOL
STOP VALVE
THREE WAY
VALVE
SWIMMING
POOL WATER
TREATMENT
SYSTEM
work together
STOP VALVE
STOP VALVE
THREE WAY
VALVE
Notice：The drawing is just for demonstration, and layout of the pipes is only for reference.
2.Electric Wiring Diagram
Breaker/fuse
(Customer prepare)
Earthing
Power Supply
230V/ 60Hz
L1
L2
Breaker/fuse
(Customer prepare)
Earthing
Power Supply
230V/ 60Hz
L1
L2
Pump
Heat Pump
contactor
Terminal Board
Users'Electric Box
Note：The swimming pool heater must be electrically bonded.
Outlet
Inlet
Bonding
Bonding
