DXP1000DVR

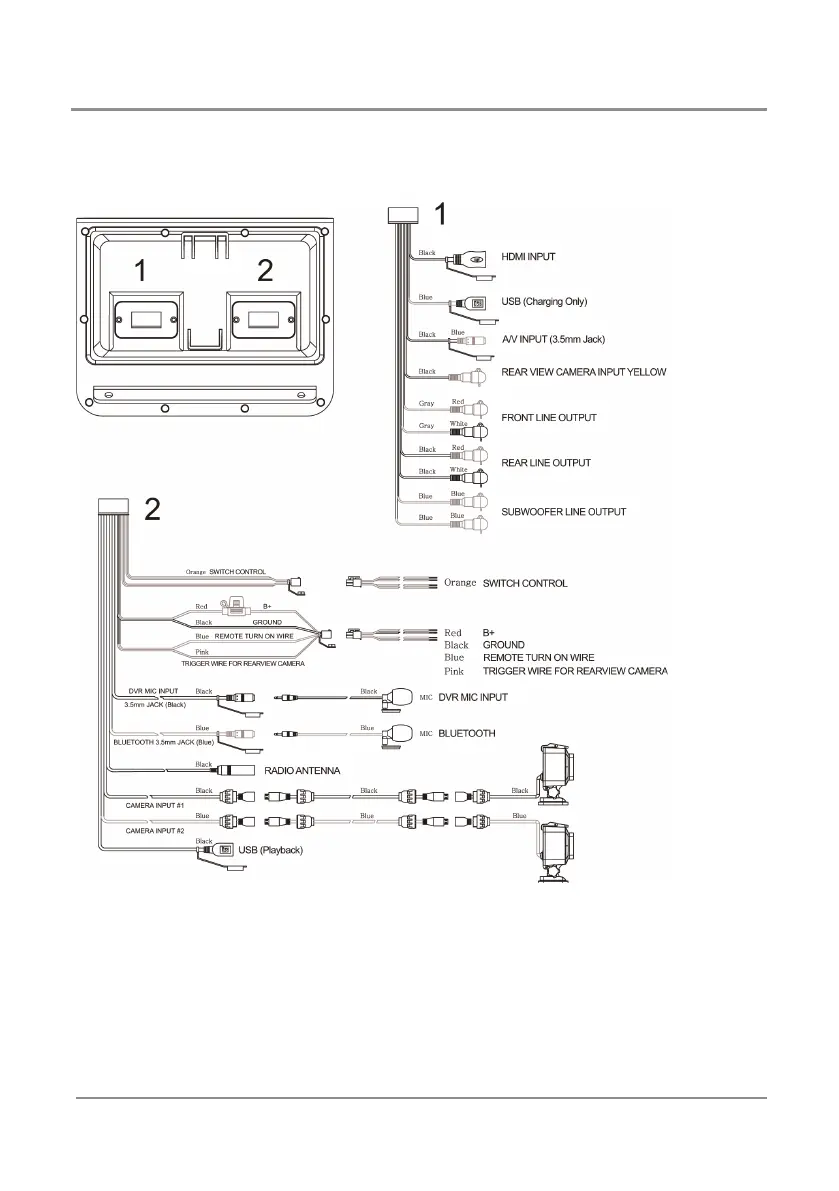

Wiring Diagram - Inputs/Outputs
Note: Please connect cameras before
powering the unit. Damage or no
video signal may occur if connected
after unit is on.
(Optional RBX4)
12V @ 1A AUX Switches
(External lighting, etc.)
Universal antenna required
(sold separately)
Universal antenna
required
(sold separately)
Note: Amplier (RCA) cables not
included (must purchase separately)
ANBX1/DMH25)
ACC
(
