Wiring the radar system
•

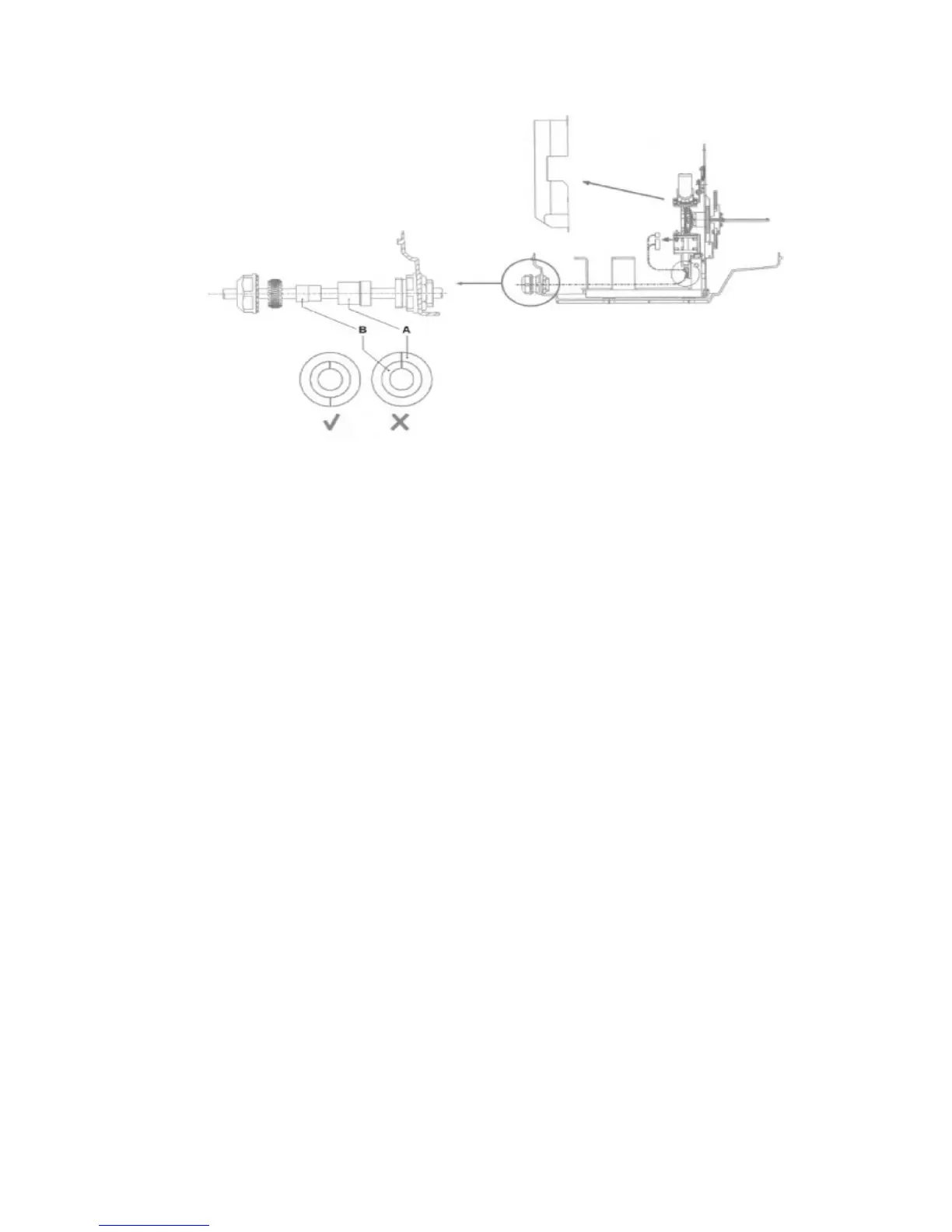

Place the internal locki
ng nut over the end
of the interconnection cable, then attach
connectors B and C to the connectors (as shown in the figure).
The broken line shows the route for the interconnection cable.
•
Attach connector D to one of the screws clos
e by to provide grounding (as shown in the
figure).
