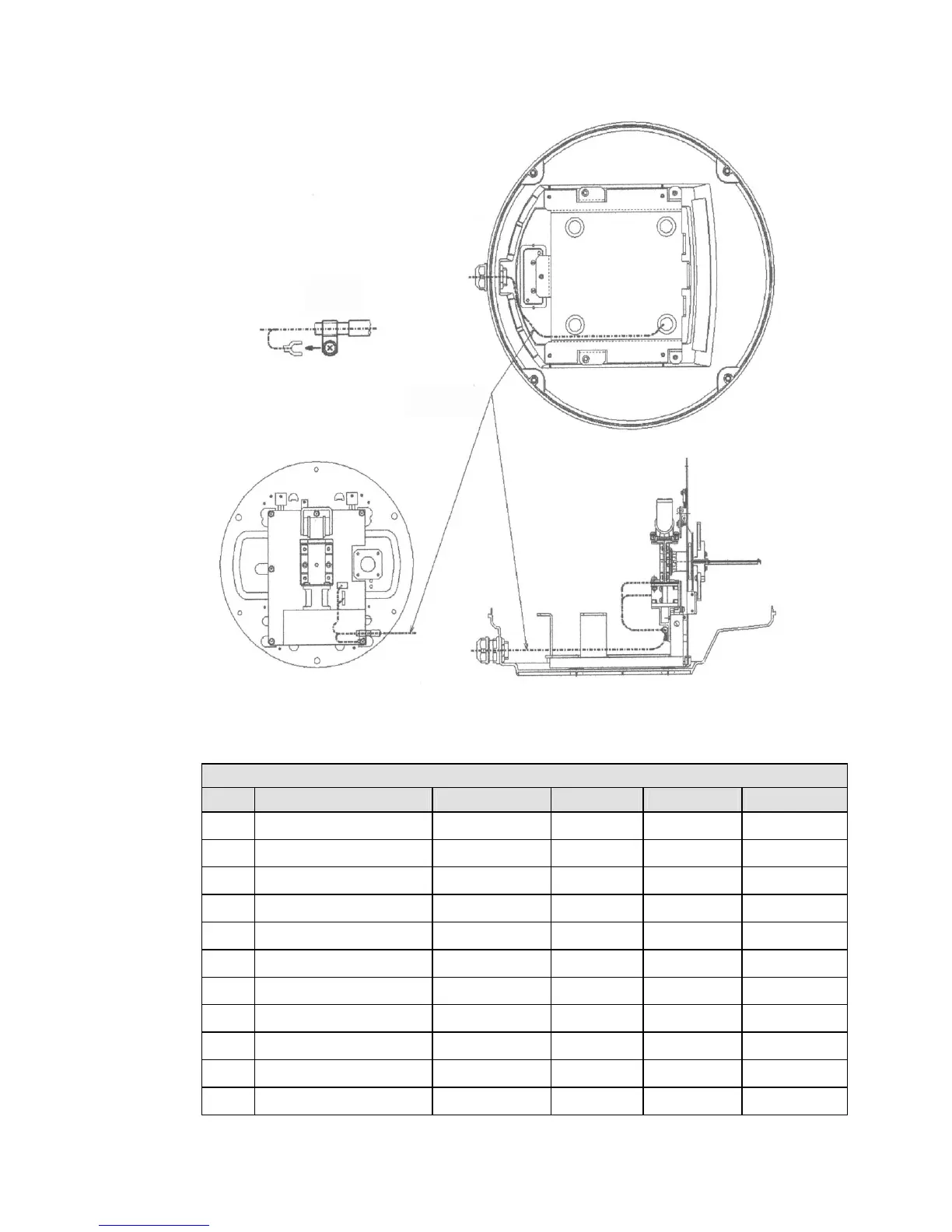

Wiring the radar system | 21
The wiring details for the connector ends (B, C, and D) are as follows:
2 kW interconnection cable (AA010088 / AA010089) connector ends
Pin Color/Name AWG size B C D
1 Green (thick) #12
1
2 Yellow (thick) #12
2
3 Green (thin) #24 7
4 Clear coax signal #24 4
5 Drain wire for 4 #24 5
6 Drain wire for 7 #24 3
7 Black coax signal #24 2
8 White #24 6
9 Yellow #24 1
10 White (thick) #12
3
Shell Braid shield
X
