WM-4 Marine Weather & Audio Receiver Installation Manual

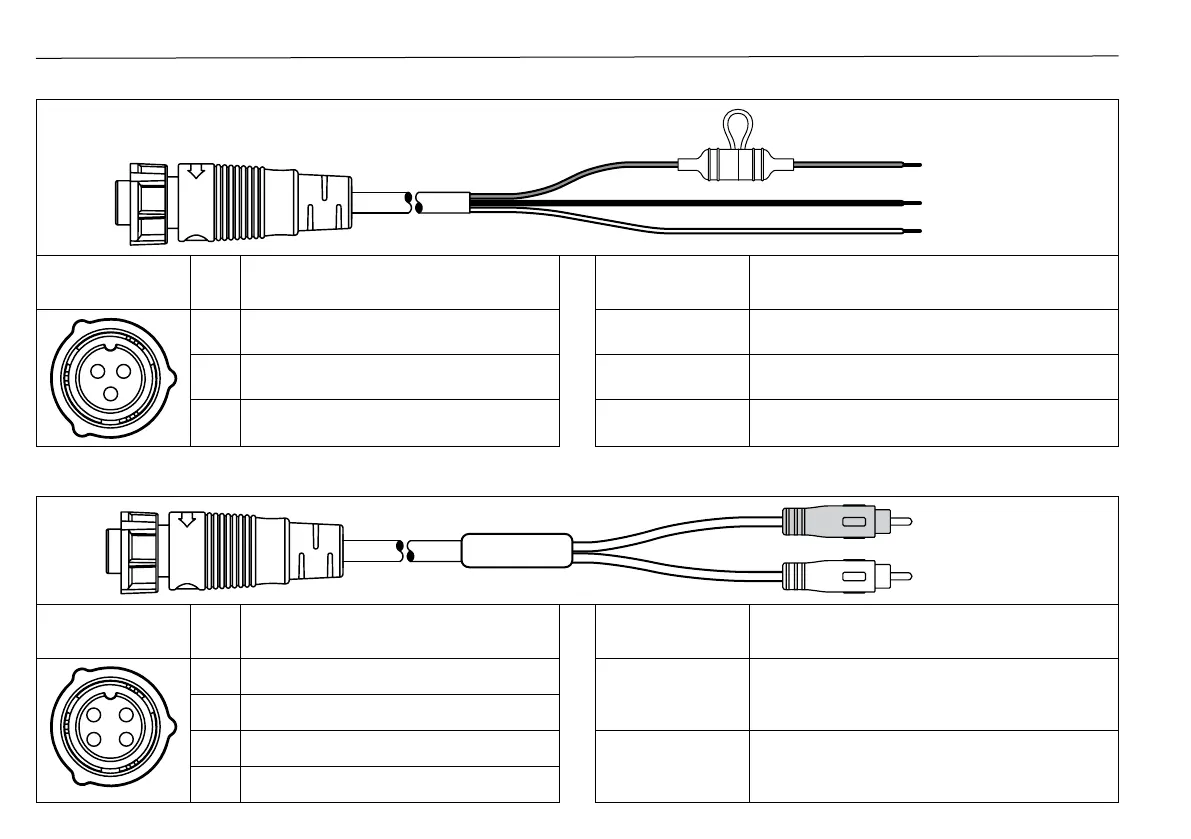

The following is the pin and wire identification for the Power Cable provided with the WM-4 Receiver.
Power
Connector
Pin Description
Wire
Color
Description
1
2
3
1 Battery + (Switched) Red Battery + (Switched)
2 Ground - Black Ground -
3 RF Shield Ground White RF Shield Ground
The following is the pin and connector identification for the Audio Cable provided with the WM-4 Receiver.
Audio
Connector
Pin Description
Connector
Color
Description
14
2
3
1
Left Audio +
Red Right Stereo Audio
2
Left Audio –
3
Right Audio –
White Left Stereo Audio
4
Right Audio +
Item #: 000-14971-001
Item #: 000-14973-001
