WM-4 Marine Weather & Audio Receiver Installation Manual
9

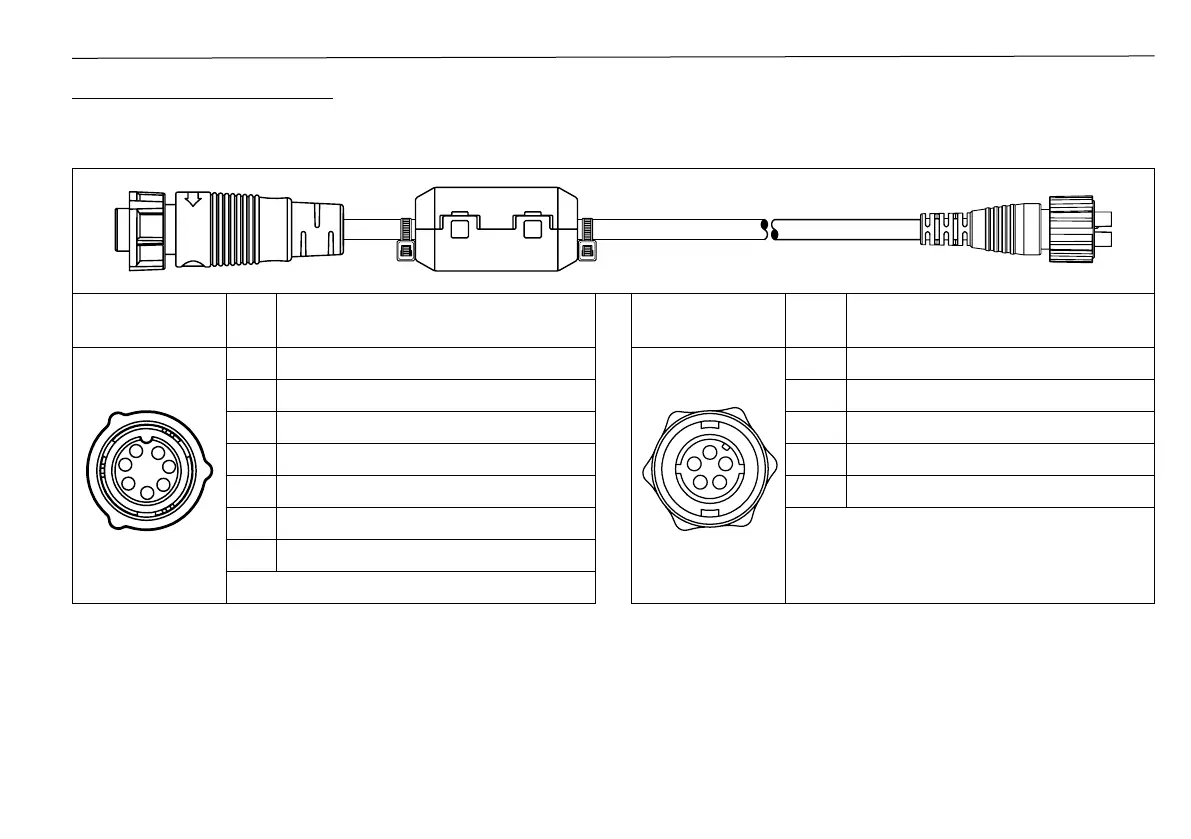

Cable Identification
The following is the pin identification for the Network Cable provided with the WM-4 Receiver.
SiriusXM Receiver MFD/Network
SiriusXM
Connector
Pin Description
Network
Connector
Pin Description
5
6
7
1
2
3
4
1 Ethernet RX+ (White/Green) 1 Ethernet TX+
2 Ethernet RX– (Green) 2 Ethernet TX–
3 Ethernet TX+(White/Orange) 3 Ethernet RX+
4 Ethernet TX– (Orange) 4 Ethernet RX–
5 HW ID-A 5 Shield/Ground
6 HW ID-B
7 Shield/Ground
Note: if a longer network connection is needed, visit www.lowrance.com, www.simrad-yachting.com, or
www.bandg.com for additional extension solutions.
1
23
4
5
Item #: 000-14972-001
