4.4 The Front Panel
The front panel allows you to adjust the water temperature and view the operating status or error codes. Remove the protective sheet
from the front panel before using it.

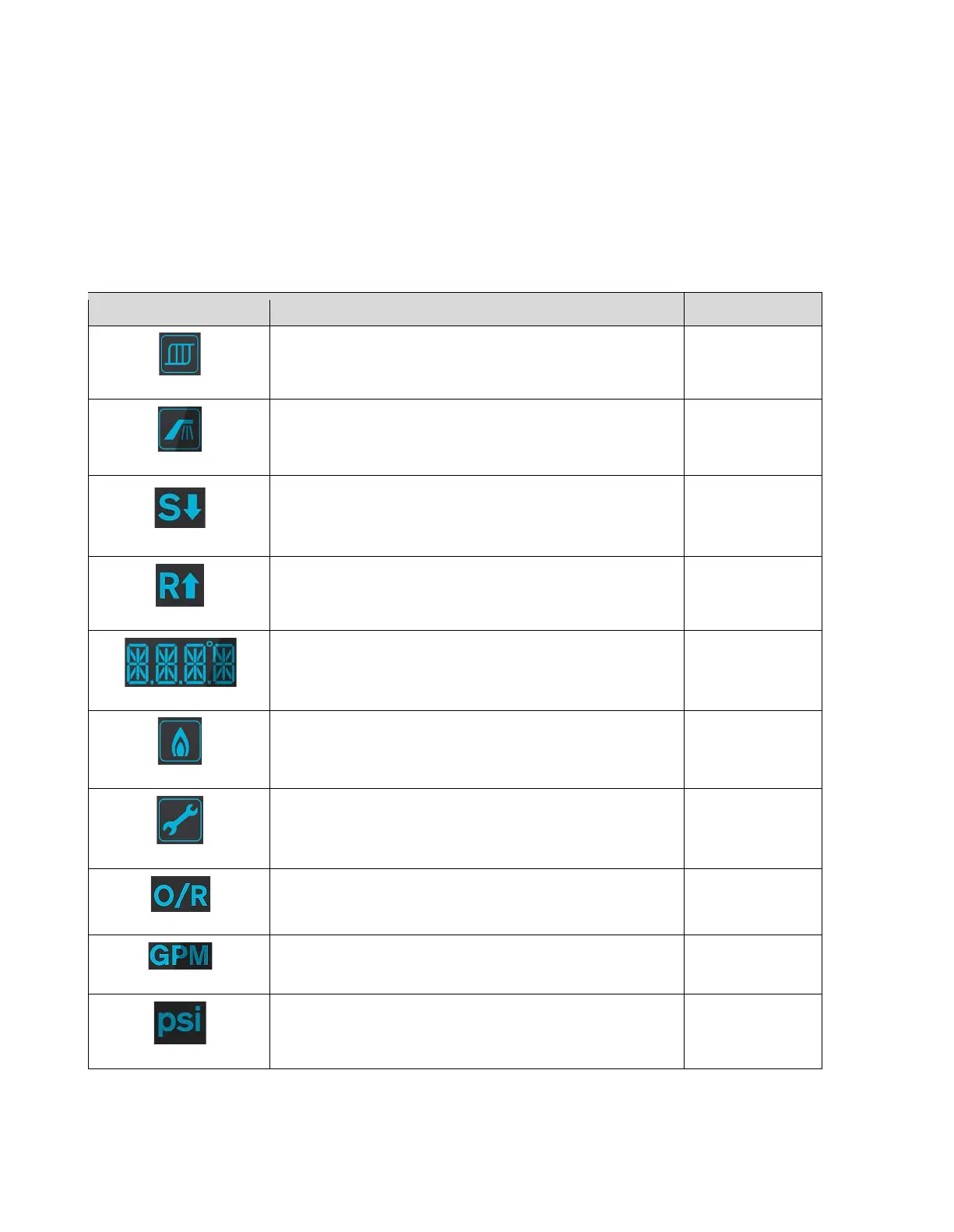

4.4.1 LCD Display
Displays Heating icon upon heating demand
(Space Heating mode)
Displays Hot Water icon upon hot water demand
(DHW setting mode)
Supply water Control
Displays the Supply Water Control mode status
Displays the Return Water Control mode status
Displays the data set in each Segment according to display status
Displays the Combustion status. Flashes the Combustion icon at 1
second intervals when performing combustion freeze protection
Displays the Error icon when an error occurs. The Boiler may still maintain
basic operations (temperature settings, etc.) if it displays the error icon
only.
Displays the Outdoor Reset function status
Displays the system flow rate (in GPM)
Displays the system water pressure (in psi)
To Next Page
