Navistar MaxxForce 15 Service Manual

14ENGINESYSTEMS

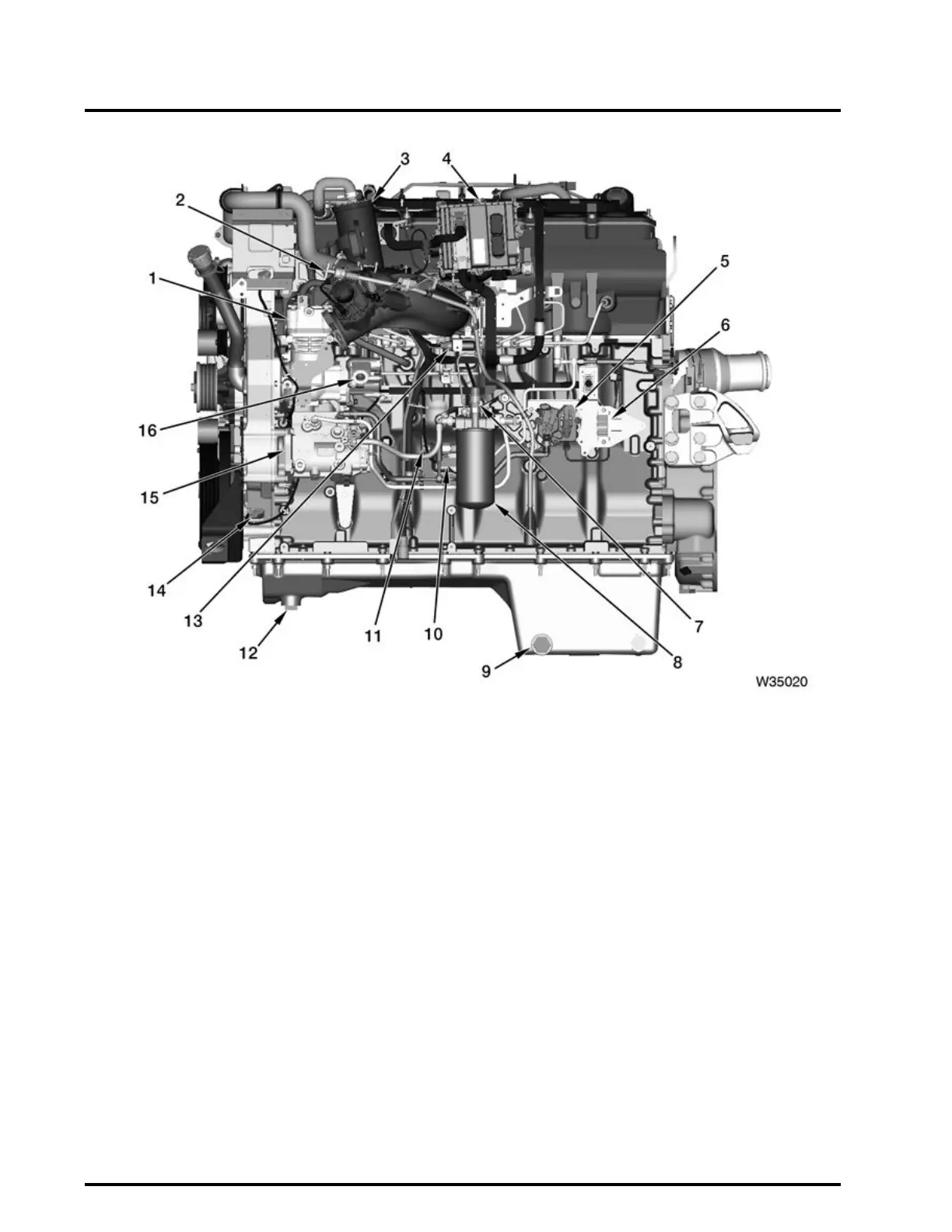

Figure6Componentlocation–left
1.Aircompressor
2.Oillevelgaugeassembly
3.Crankcasebreather
4.EngineControlModule(ECM)
5.DownStreamInjection(DSI)
assembly
6.12Vrelay(forcoldstartassist
solenoid)
7.FuelDeliveryPressure(FDP)
sensor
8.Fuellter
9.Oilpandrainplug(rearsump)
10.CrankcasePressure(CPS)
sensor
11.EngineOilPressure(EOP)
sensor
12.Oilpandrainplug(frontsump)
13.ColdStartFuelSolenoid(CSFS)
14.5mm60degreespeedsensor
(crankshaftpositionsensor)
15.High-pressurefuelpump
16.Powersteeringpump
