INSTALLATION/ SERVICE MANUAL
INSTALLATION/ SERVICE MANUAL
21
22

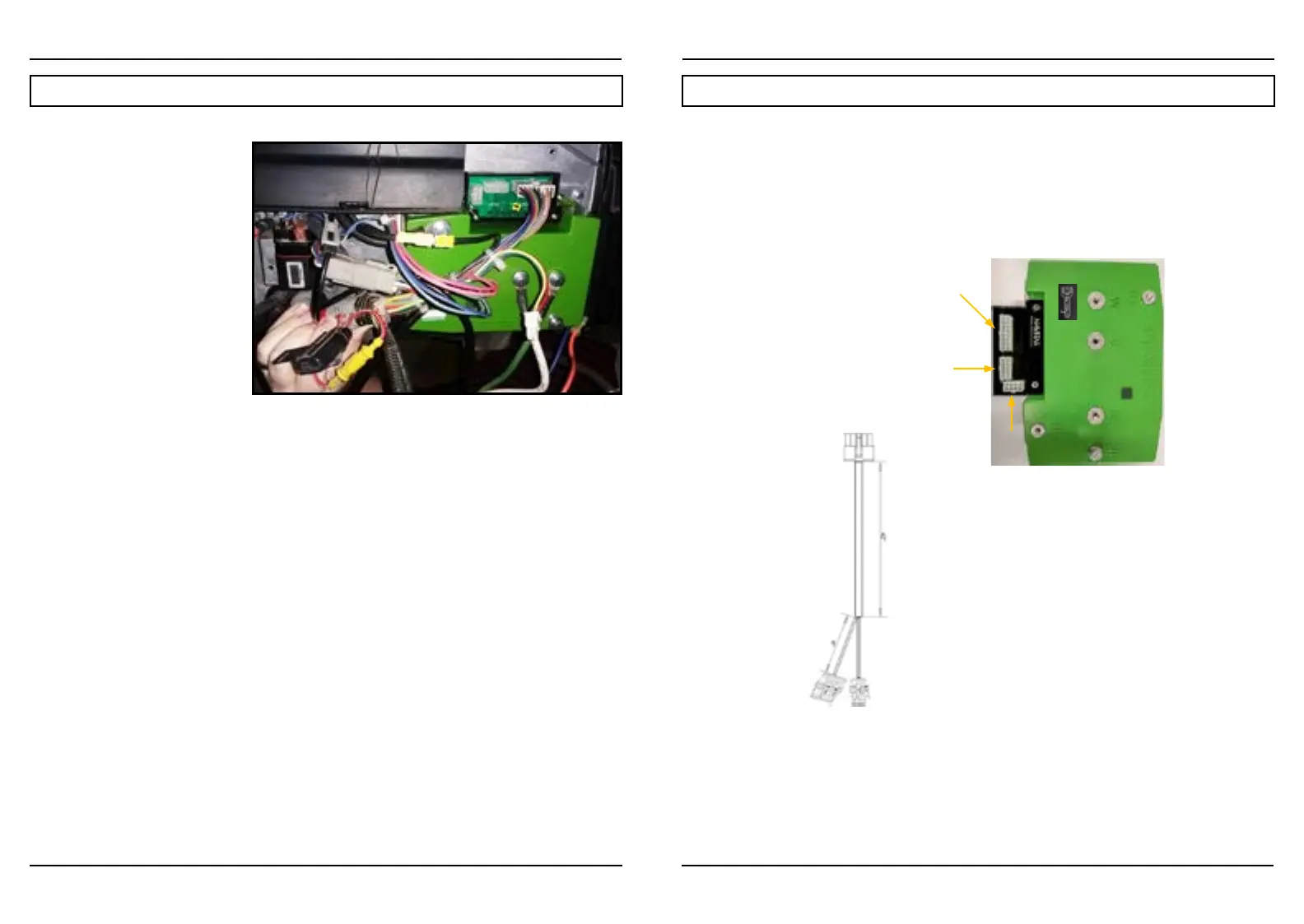

4. Install Navitas TAC 2 Controller
• Install NEW Club Car
Precedent mounting plate
using supplied hardware
• Connect motor phase wires
from controller using the
removed A1 and A2 wires and
the included wire (U = U, V = V
and W = W)
• Connect B+ cable from
solenoid to controller and
existing B- cable from battery
pack to controller
• Install OTF (Optional). See
OTF installation instructions in
RXV install description p12
• Connect OEM harness to adaptor module
• Connect OTF to adaptor module (optional)
• Connect NEW speed sensor/motor temperature harness to controller
• Connect OEM wiring harness to controller (may need to chase back harness to free up
sucient slack)
5. Install AC Motor
• Re-connect A1=U, A2=V and NEW motor cable=W from controller to the AC motor (examine
to make sure the cables align from controller to motor exactly….U-U, V-V and W-W)
• Connect new speed sensor/motor temperature harness from controller to AC motor
6. TESTING INSTALLATION
• Make sure drive wheels are in the air
• Reconnect battery pack
• Put in RUN mode
• Turn key On
• Put in “F” for Forward
• Press on throttle to activate wheels
INSTALLATION INSTRUCTIONS
Club Car IQ (Precedent) DC to AC Conversion cont’d
Fig. 2
Pinout for Controller
INSTALLATION INSTRUCTIONS
Club Car IQ (Precedent) DC to AC Conversion cont’d
Diagrams and other updates available at:
NavitasVS.com/support
P1: +5V PF P2: Throttle In
P3: Fused GND
P4: NA P5: Charger Interlock Input
P6: Foot Switch In P7: Reverse Buzzer P8: Forward In
P9: Logic Power In P10:Key In P11: NA P12:Main Solenoid Out P13: NA P14: NA P15: NA P16:Reverse In
To Navitas AC Motor Adapter
PN: 40-000580
P1: +5V PF P2: Encoder A In P3: Encoder B In P4: Digital GND
P5: NA P6: Motor Temperature In P7: Analog GND P8: NA P9: Key In P10: Motor Brake Solenoid Release
To OEM vehicle harness
To OTF Programmer
PN: 10-000686
P1: +12V PF
P2: OTF Regen P3: OTF speed P4: OTF acceleration P5: +5V PF P6: OTF Lock P7: OTF LED P8: Analog GND
Navitas TAC2 AC Motor Controller
for Club Car Precedent DC-AC Conversion
Product Model 10-000888-02
8-POS Molex
39-28-1083
16-POS Molex
39-28-1163
10-POS Molex
39-28-1103
Navitas AC Motor Adapter
40-000580
To AC Motor
Speed Sensor Temperature Sensor
2-POS
282080-1
4-POS
282088-1
10-POS Molex
39-01-2100
P1: Motor Temperature In P2: Analog GND
P1: +5V PF P2: Encoder B In P3: Encoder A In P4: Digital GND
P1: +5V PF P2: Encoder A In P3: Encoder B In P4: Digital GND
P5: NA P6: Motor Temperature In P7: Analog GND P8: NA P9: NA P10: NA
Module 40-000621
TAC2 for Precedent
OTF
AC Motor
Adapter
Vehicle Harness
Issue Date: 20181219
RES Post may not be installed in conversion model!
Navitas TAC2 AC Motor Controller
for Club Car Precedent DC-AC Conversion
Product Model 10-000888-02 (440A)
10-000890-02 (600A)
