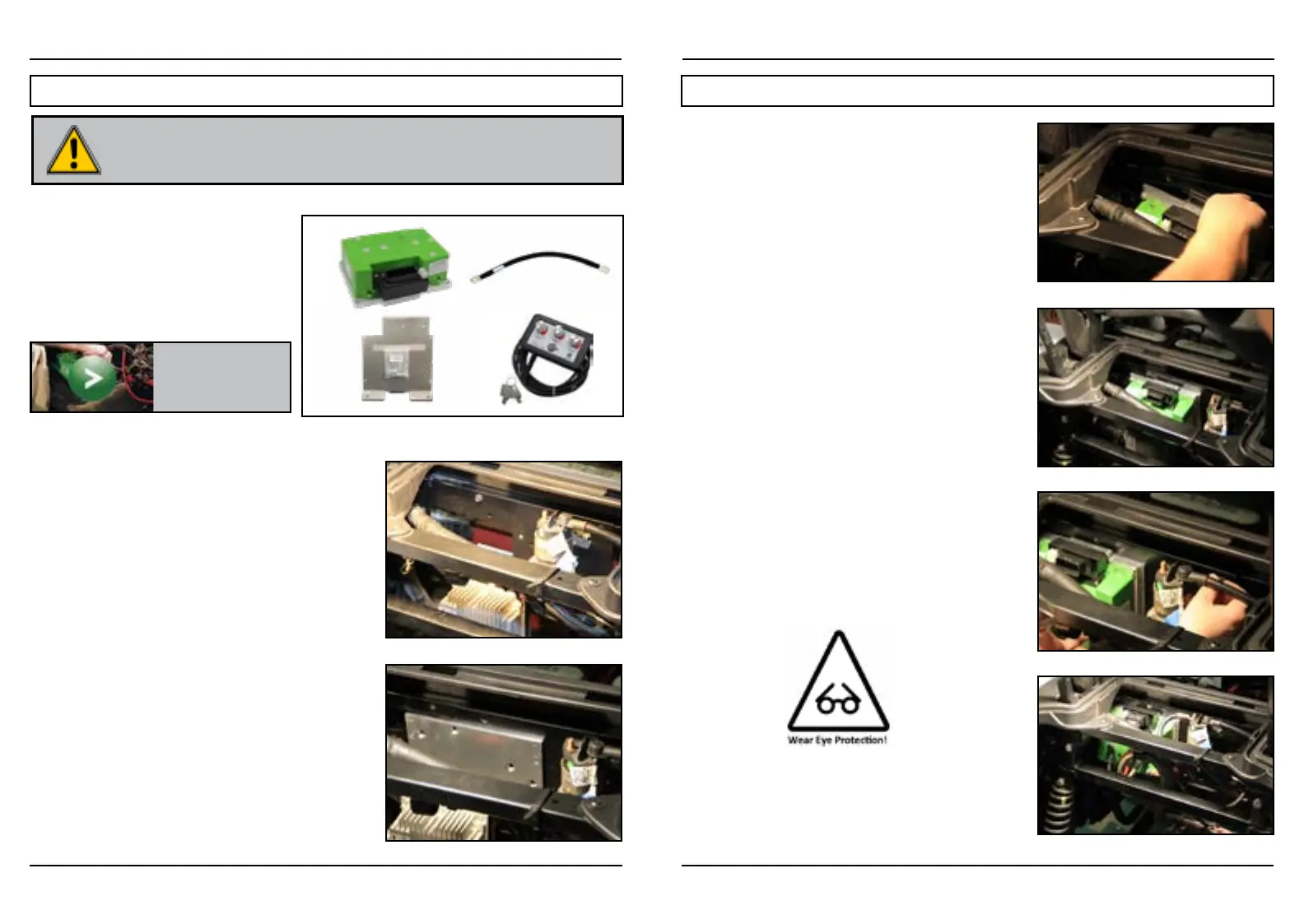

INSTALLATION INSTRUCTIONS
YAMAHA YDRE2 - TOYOTA (NEOS) Installation
Disconnect all batteries before beginning
installation. If the car has a run/tow switch, you must
place the switch in the TOW position first!
CAUTION
PARTS
• AC Controller
• Mounting plate with hardware
• Motor phase cable (4AWG)
• On-The-Fly programmer (Optional)
To view our Installation
video for Golf Cars, visit:
NavitasVS.com/support
1. Power down
• Turn o key, disconnect battery
• Put car on a stand and block wheels
• Use insulated tools
• Never use battery as workbench
2. Remove cables from OEM controller
• Unclip OEM Wire Harness
3. Remove OEM Controller
4. Install YDRE2 Mounting Plate
• Align plate with existing holes (where OEM
controller was fastened) and fasten with
screws.
(Fig. 2)
• To make it easier to install bolts on the
left side of the controller, loosen and slide
assembly to a central, more accessible
position.
(Fig. 2, 3, 4)
Fig. 1
Fig. 2
INSTALLATION INSTRUCTIONS
5. Mount Controller
• Install Navitas AC controller (Fig. 3)
• Connect B- from battery, B+ from solenoid using
supplied battery cable, and motor phase cables to the
controller:
Black - U
Red - V
White - W
6. Connect OEM Harness to Adaptor Module
7. Install On-The-Fly Programmer (optional)
• Install OTF (optional) (see install description in RXV
INSTALL instructions, p12)
• Connect OTF to Navitas Controller
• Zip Tie loose cables
8. Test Installation
• Lift rear wheels
• Reconnect battery pack
• Put in “RUN” mode
• Turn key on
• Put in “F” for Forward
• Press on throttle to activate wheels
Fig. 3
Fig. 4
Fig. 5
Fig. 6
YAMAHA YDRE2 - TOYOTA (NEOS) Installation cont’d
