INSTALLATION/ SERVICE MANUAL
INSTALLATION/ SERVICE MANUAL
25
26

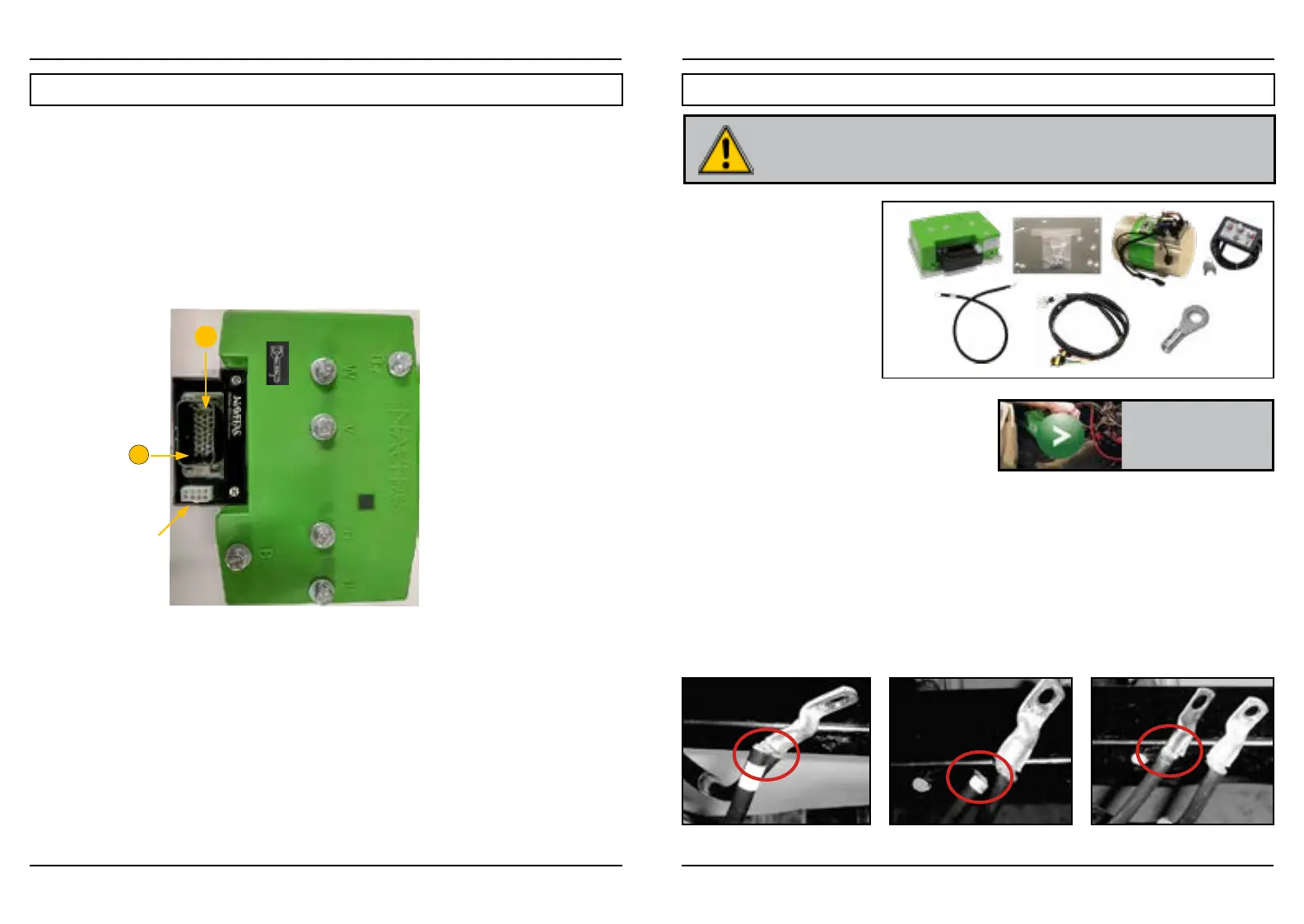

Pinout for Controller
INSTALLATION INSTRUCTIONS
YAMAHA YDRE2 - TOYOTA (NEOS) Installation cont’d
Diagrams and other updates available at:
NavitasVS.com/support
P1: Logic Power
P2: NA
P3: NA
P4: Throttle In
P5: Logic Power
P6: Main Solenoid
P7: Rev Buzzer
P8: Logic Power
P9: +12V PF
P10: SPD B In
P11: SPD A In
P12: Key In
P13: Foot Switch In
P14: Analog GND
P15: Motor Temperature In
P16: Battery Negative
P17: Reverse In
P18: Forward In
P19: NA
P20: +5V PF
P21: NA
P22: CAH Positive
P23: CAN Negative
To OEM vehicle harness
To OTF Programmer
PN: 10-000686
P1: +12V PF
P2: OTF Regen
P3: OTF speed
P4: OTF acceleration
P5: +5V PF
P6: OTF Lock
P7: OTF LED
P8: A
nalog GND
Navitas TAC2 AC Motor Controller
for Yamaha YDRE2
Product Model 10-000888-01
8-POS Molex
39-28-1083
23-POS Ampseal
776228-1
Module 40-000627
TAC2 for Yamaha YDRE2
OTF
23
1
Issue Date: 20181219
RES Post may not be installed in conversion model!
INSTALLATION INSTRUCTIONS
YAMAHA G29 DC to AC Conversion
Disconnect all batteries before beginning
installation. If the car has a run/tow switch, you must
place the switch in the TOW position first!
CAUTION
1. Power down
• Turn o key, disconnect battery
• Put car on a stand and block wheels
• Use insulated tools
• Never use battery as workbench
2. Remove OEM Controller
• Remove cables from controller
• Unclip OEM Wire Harness
3. Prepare Cables --Important--
• Locate the ‘Y’ cable on the vehicle harness (Fig. 1). This cable consists of 2 cables crimped
together into a single ring terminal. One side comes from the Battery Negative. The other
wire is connected to the A2 on the motor. Use side cutters to cut the A2 wire at the ring
terminal (Fig. 2). Then crimp the supplied ring terminal to the A2 wire (Fig. 3).
PARTS INCLUDED
• AC Controller
• AC 4 kW motor
• OTF programmer (optional)
• Mounting plate and
hardware
• Motor phase cable
• Speed sensor/motor
temperature harness
• Ring Terminal
To view our Installation
video for Golf Cars, visit:
NavitasVS.com/support
Fig. 1 Fig. 2
Fig. 3
Navitas TAC2 AC Motor Controller
for YAMAHA YDRE2
Product Model 10-000888-01 (440A)
10-000890-01 (600A)
To Next Page
