WIND 3100 Installation and Operation Manual

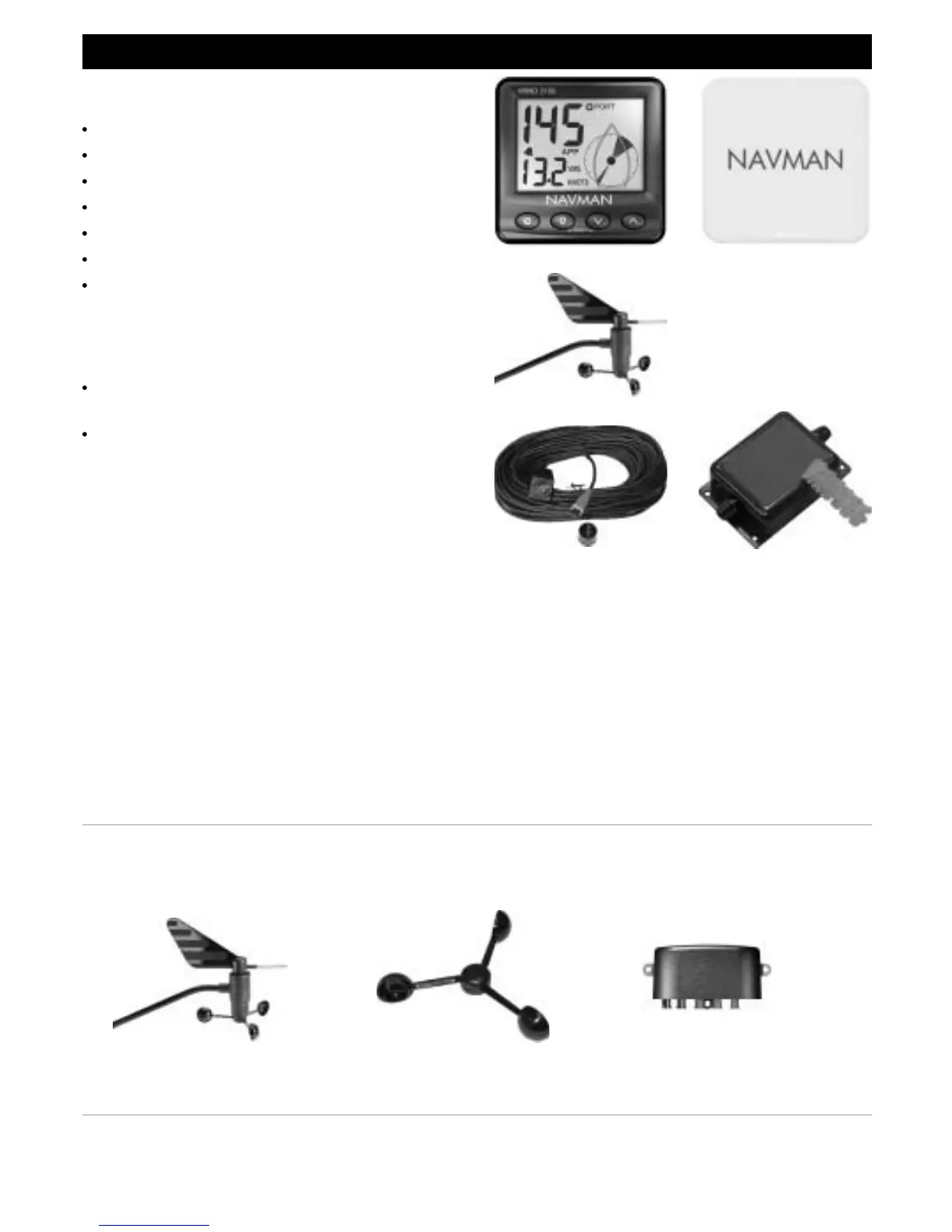

7 WIND 3100 hardware
Standard configuration:
WIND 3100 unit with protective cover.
Masthead unit.
30 m Masthead cable.
Masthead cable junction box.
Warranty card.
Mounting template.
This Installation and Operation Manual.
7-2 Other parts required
One or more 3100 series instruments will be
connected to the boat 12 V DC power supply via:
An accessory switch to turn the instruments on
and off.
A fuse. Use a 1 A fuse for between one and five
instruments.
Optional external beepers or lights can be fitted. The
WIND 3100 output is switched to ground, 30 V DC
and 250 mA maximum. If the beepers and lights
require more than 250 mA, fit a relay.
For systems of several instruments, wiring and
connectors are required (see section 6 or the NavBus
Installation and Operation manual).
In order to display true wind speed and direction and
VMG, the WIND 3100 must be connected to an
instrument that outputs speed (see section 6).
The WIND 3100 is usually used with the supplied
masthead unit. However, the unit can take readings
from another NAVMAN wind instrument, in which
case the masthead unit does not need to be fitted
(see section 6-1).
7-3 Accessories
These accessories are available from your NAVMAN dealer.
7-1 What comes with your WIND 3100
NavBus junction box
(see section 6)
Replacement
masthead unit
Masthead unit windcup
