NC SW6 - Maintenance Decals Descriptions

15
Maintenance Decal Descriptions
The machine is fitted with a maintenance decal. It is important that before using the ma-
chine the decal is understood and all the checks have been carried out. The decal must be
clean and readable at all times. If the decal needs to be replaced it can be obtained from
the NC Spares department.

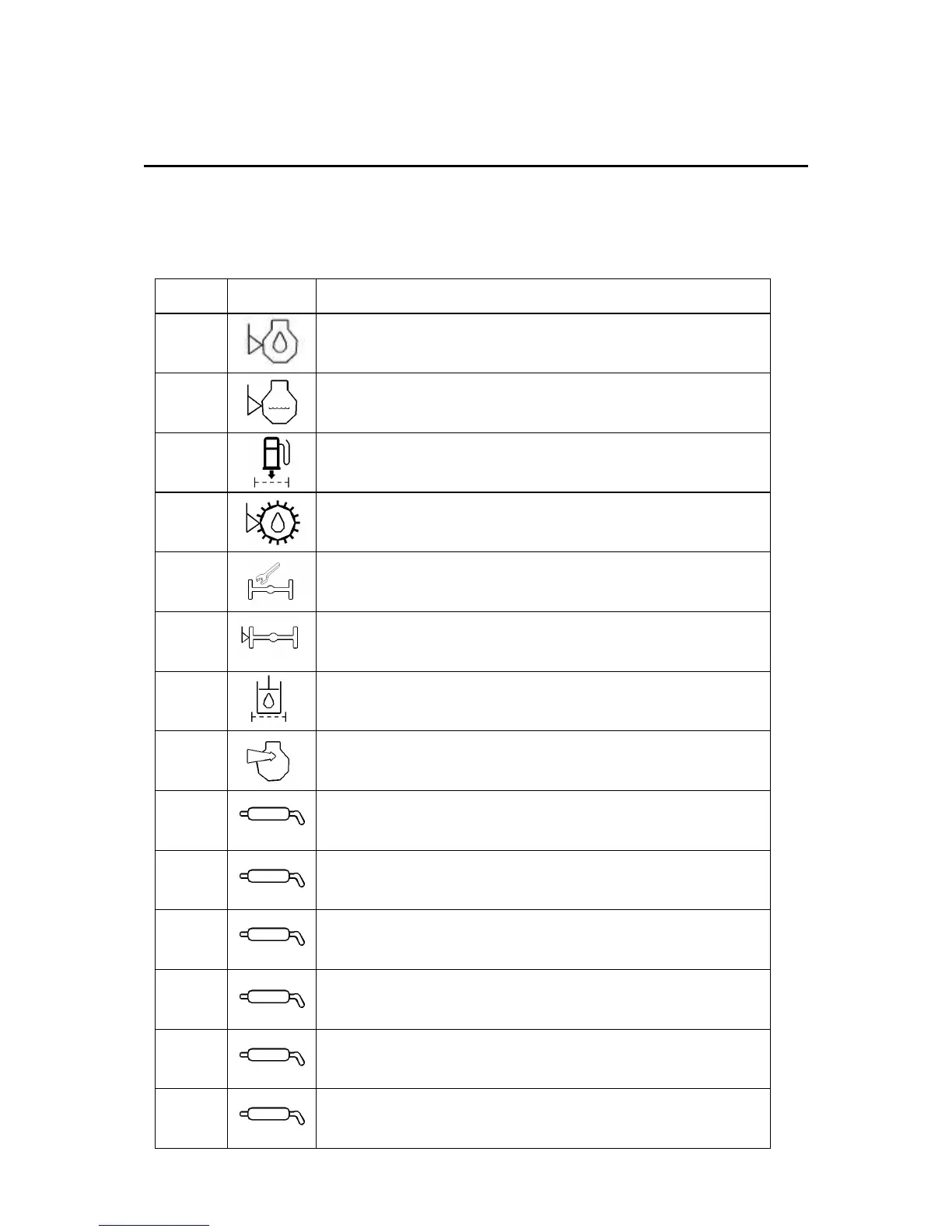

Ref No. Symbols Description.
1 Engine Oil Level.
2 Engine Coolant Level.
3 Fuel and Water Sedimentor.
4 Transmission Oil Level.
5 Axle Service Points.
6 Axle Oil Level.
7 Hydraulic Return to Tank Filter.
8 Air Filter Restriction Indicator.
9 Grease Point - Skip Pivot Pins.
10 Grease Point - Slew Ring.
11 Grease Point - Tipping Ram Pins.
12 Grease Point - Slew Rams.
13 Grease Point - Skip Stopper Flap.
14 Grease Point - Centre Point Articulation.
