47
Maintenance
ELECTRICS

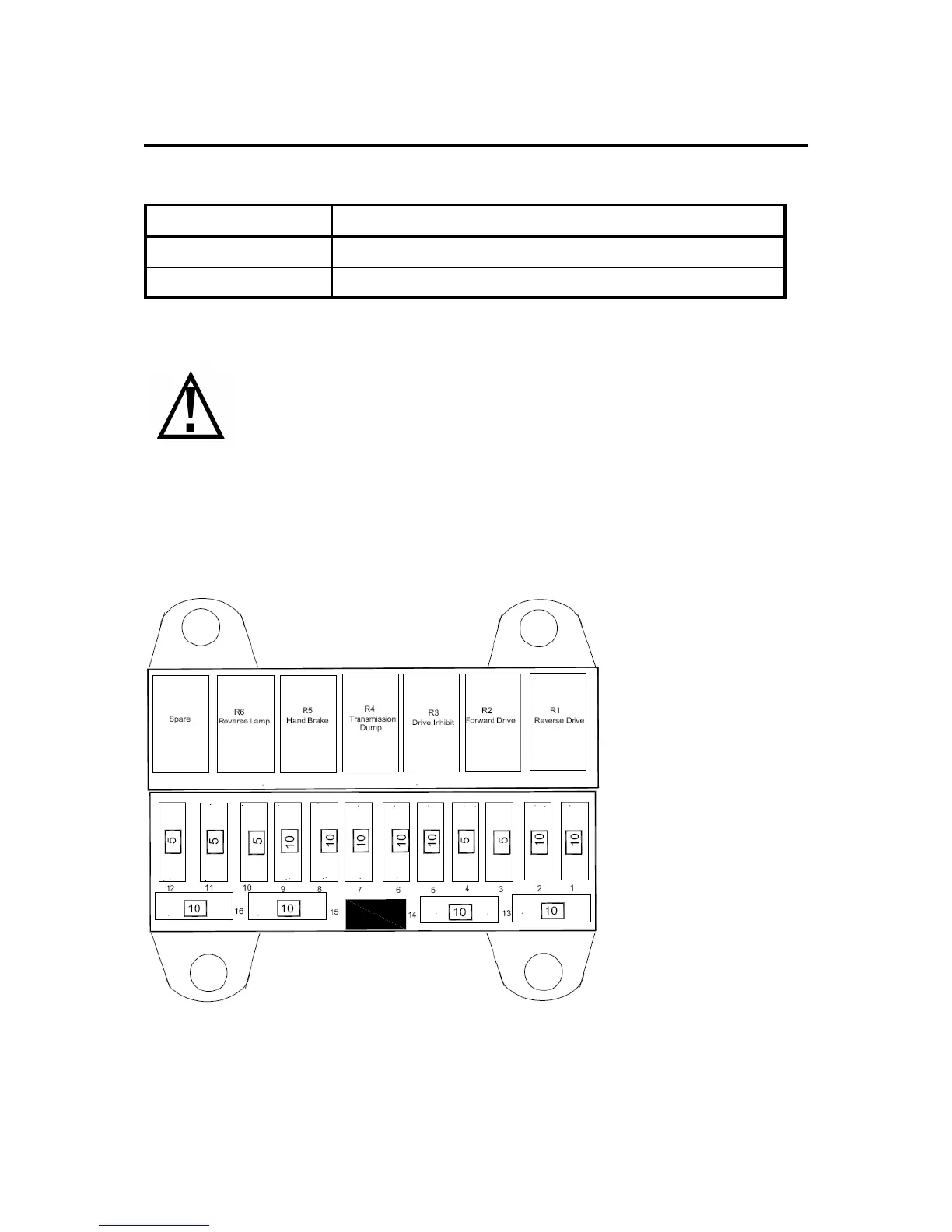

RELAY & FUSE BOX LAYOUT
Description Specification
Battery 663 Type: 800CCA, 115Ampere-Hour Capacity
Alternator 95A Belt driven
The alternator is very sensitive to temperature. High temperatures will
affect the performance of the alternator and may eventually cause
damage to it. Never remove the exhaust lagging as this is a temperature
resistant material.
If the exhaust is to be removed always ensure it is refitted with lagging of
the following minimum specification.
Must be able to withstand temperatures of 800°C
Fuses
1. Horn & Brake Lights
2. Drive
3. Dump Switch
4. FNR Switch
5. Beacon
6. Instrument Display
7. Fuel Pump
8. Indicators
9. Hazard
10. Rear Fog
11. Off Side & Tail Light
12. Near Side & Tail & No. plate Light
13. Off Side Dip Beam
14. Near Side Dip Beam
15. Off Side Main Beam
16. Near Side Main Beam
