Serial Cables, Dual 7

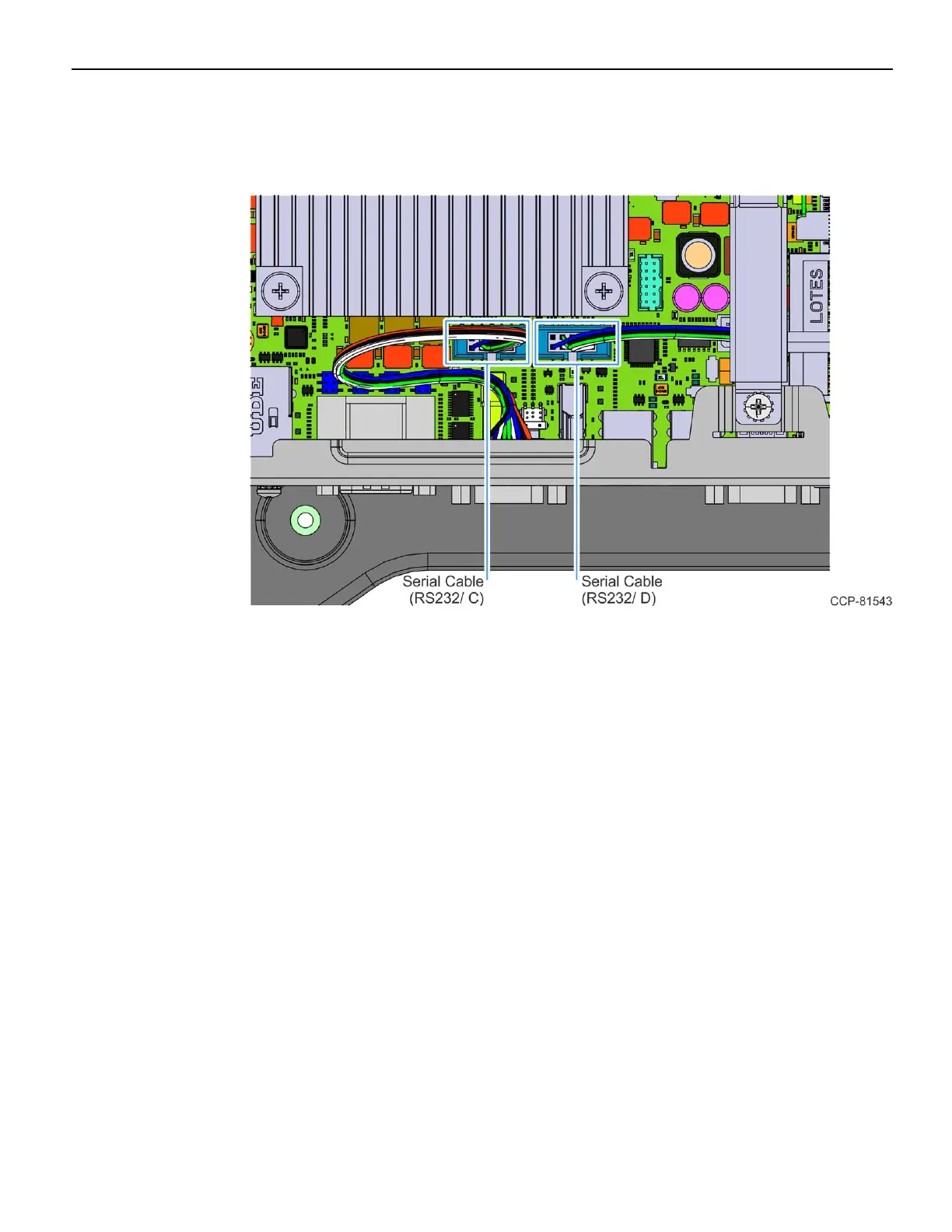

7. Connect the Cables to the Motherboard. Ensure to connect the respective cables to
the correct ports as shown below. Push the excess Serial Cable down below the
height of the heatsink to provide clearance when the Daughter Card is reinstalled.
8. Reinstall the Daughter Card.
9. Reinstall the Hard Drive Tray.
10. Reinstall the Top Cover.
11. Reinstall the Front Bezel Plate.
