NCR CX5 Instructions

2 CX5/CX7 Side Scanner/Imager
Installation Procedure
Warning: Disconnect the AC power cord from the AC outlet and wait 30 seconds
before servicing the terminal.

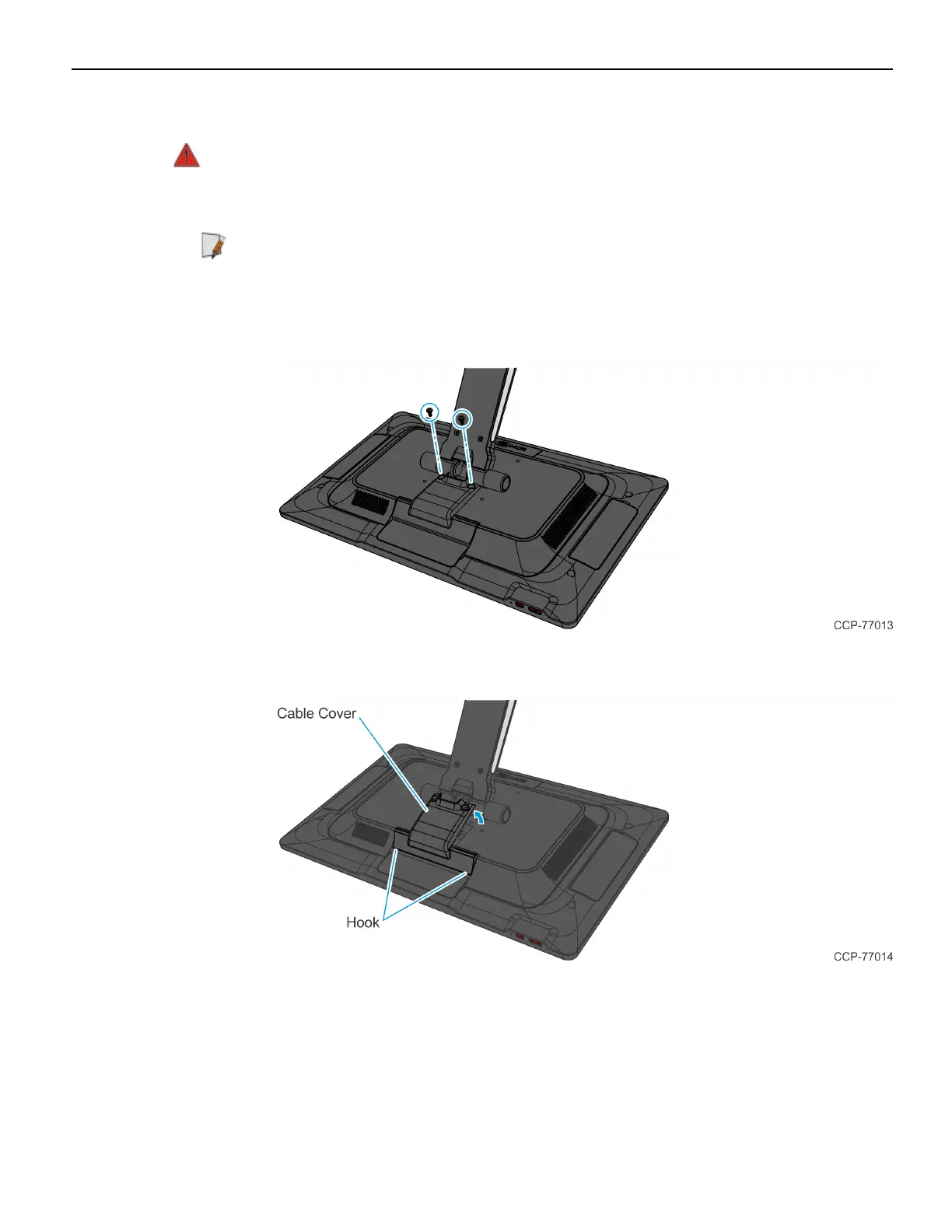

1. Lay the Display face down on a flat surface.
Note: Always use a soft material (cloth, foam) to protect the display screen when
placing the terminal face down.
2. Remove the Cable Cover.
a. Remove the two (2) screws that secure the Cable Cover to the Back Cover.
b. Rotate and unhook the Cable Cover from the Back Cover.

NCR CX5 Specifications

General

Memory	4GB DDR3
Touch Technology	Projected Capacitive
Operating System	Windows 10 IoT
Ports	Ethernet
Weight	5.5 kg
